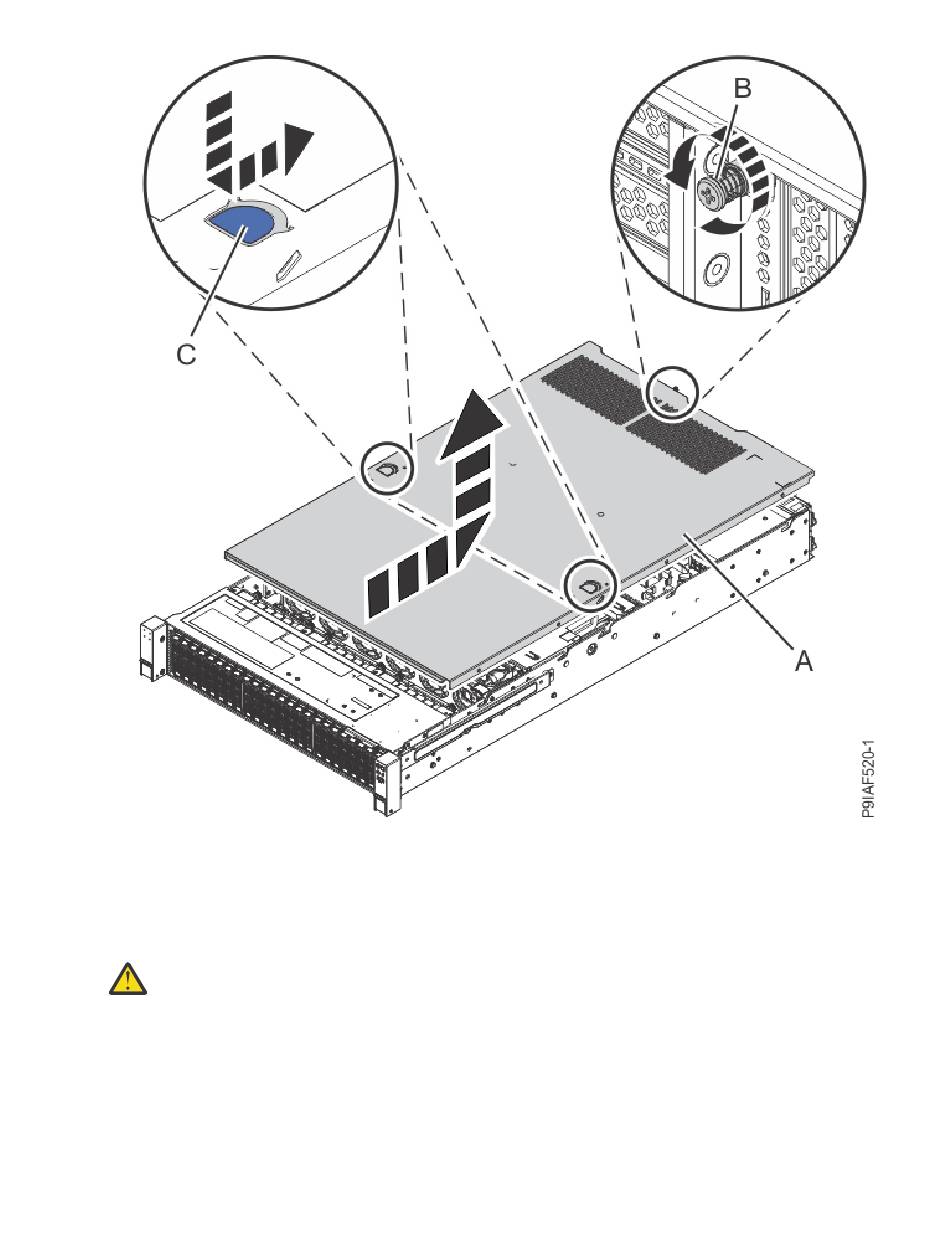

Figure 72. Removing the cover
Installing the service access cover on a 9183-22X system
To replace the service access cover, complete the steps in this procedure.
About this task
Attention: For safety, airflow purposes and thermal performance, the service access cover must
be installed and fully seated before you power on the system.
Procedure
1. Place the cover (A) on the system unit such that the alignment pins on the cover are aligned to the
slots on the chassis. Slide the cover to the front of the system until the blue release latches (B) lock in
to place.
108 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
