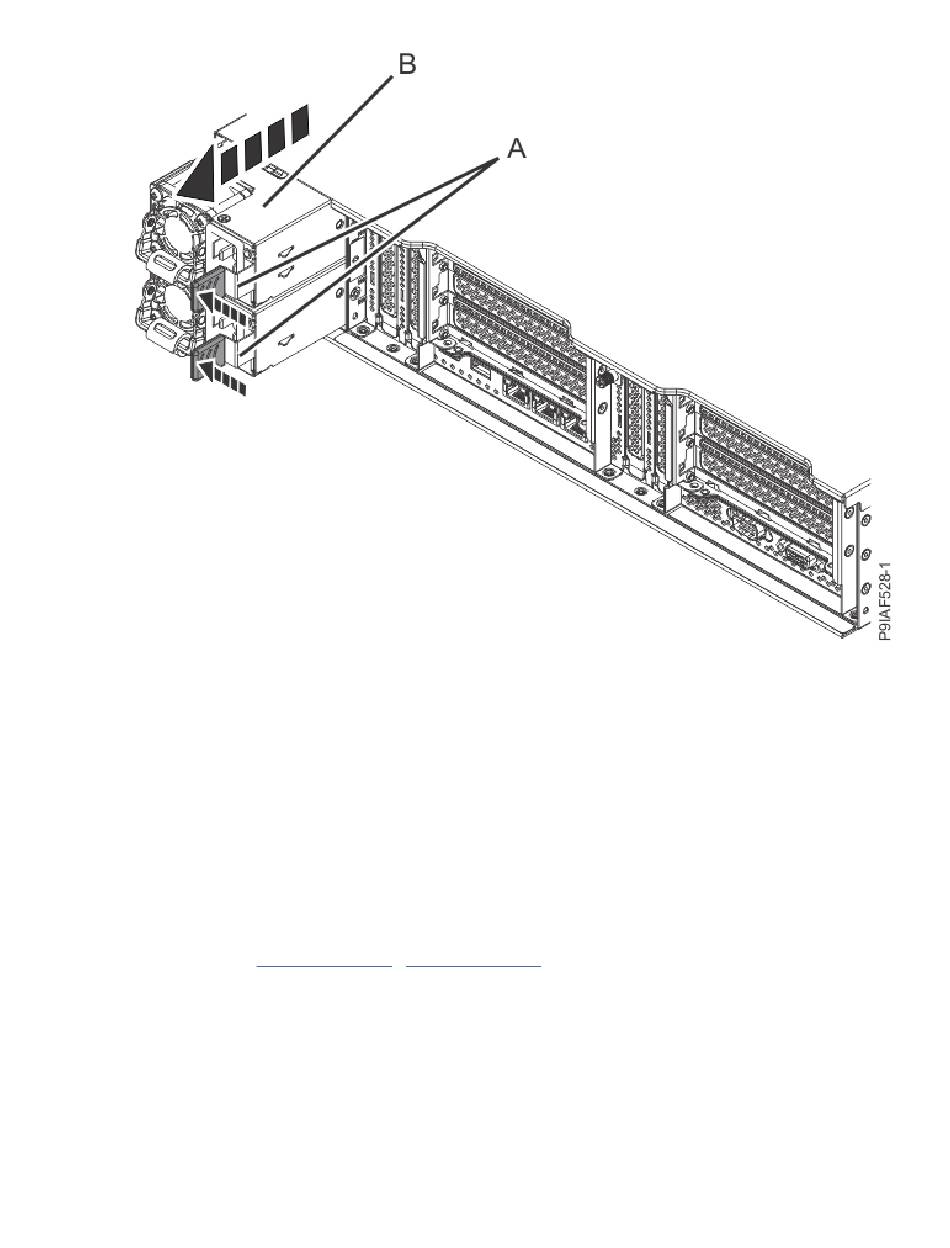

Figure 80. Removing the power supplies from the system
Replacing a power supply in the 9183-22X system
To replace a power supply in the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Replace the power supplies as shown in the following figure.
a) Place your other hand underneath the power supply.
b) Align the power supply (A) with the bay, so that the fan is to the left.
c) Slide the power supply into the system until the latch (B) locks in place.
d) Repeat steps "2.a" on page 118 - "2.c" on page 118 for the other power supply.
