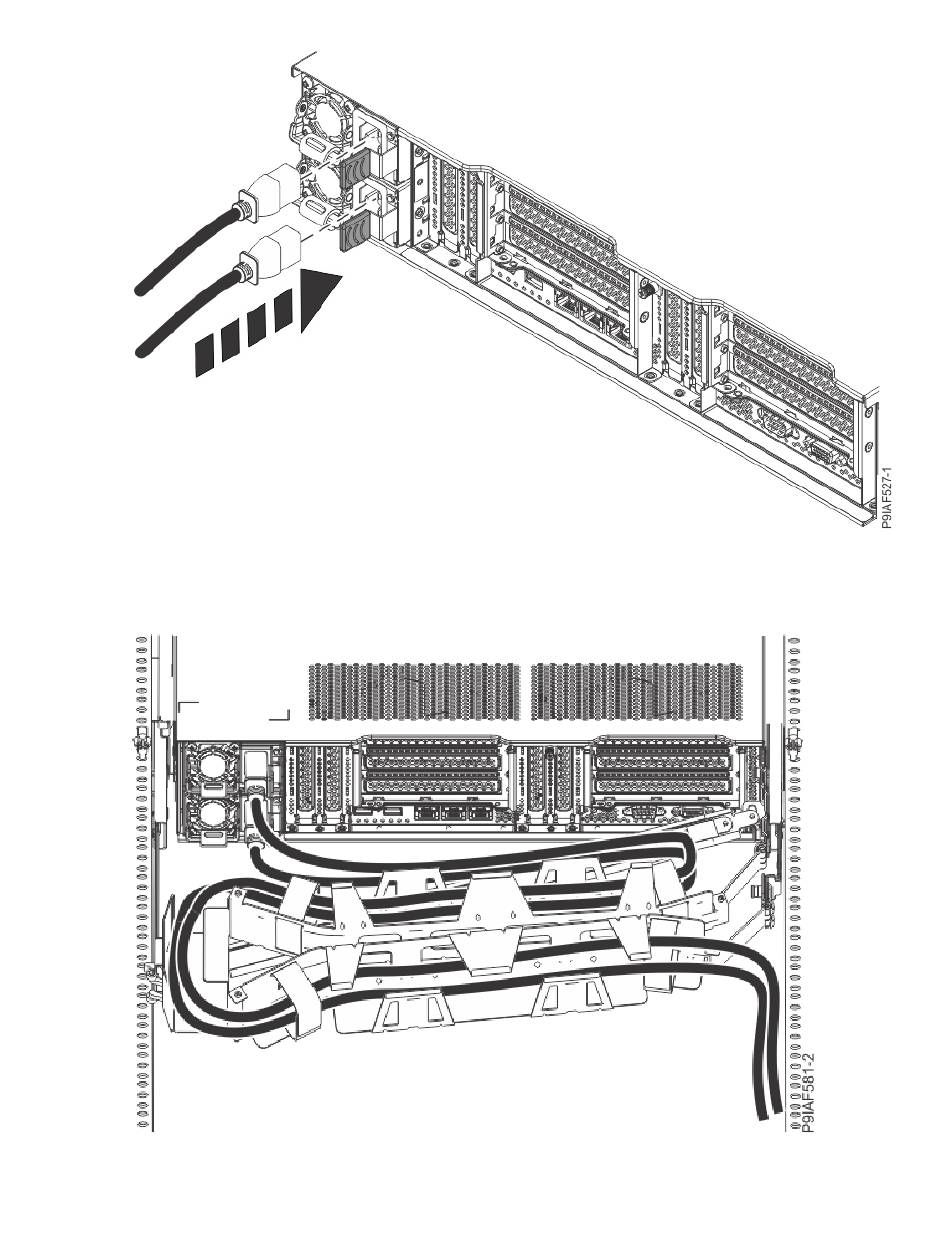

Figure 78. Connecting the power cords to the system
3. Loop and attach the power cords to the power supply handle.
Note how the power is looped; be sure to maintain at least a 5 cm (2 in.) diameter loop. Use the hook-
and-loop fastener to tie the power cord to the power supply handle.
Figure 79. Routing the power cord loop in the cable management arm
4. Close the rack door at the rear of the system.
114 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
