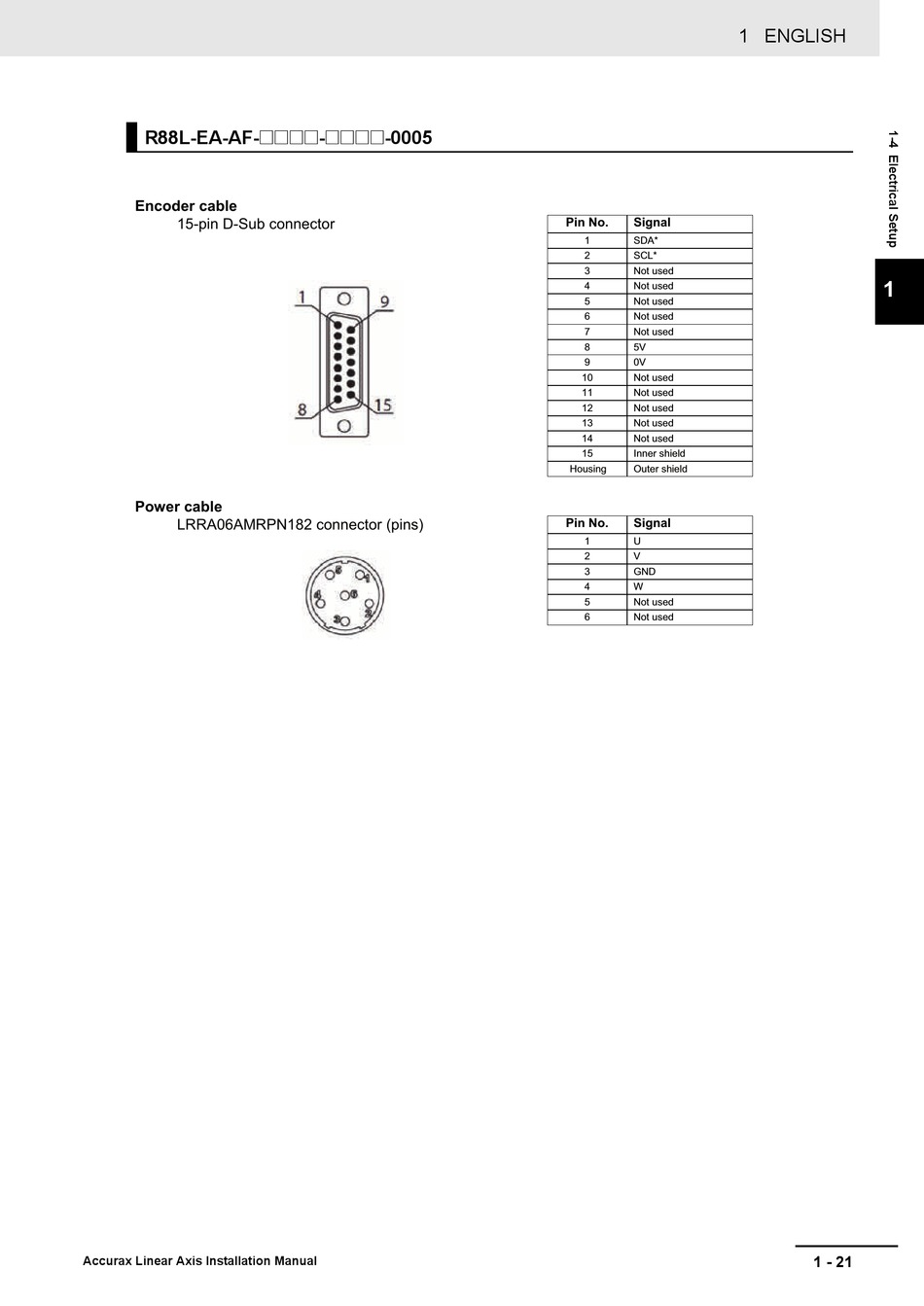

R88L-EA-AF-@@@@-@@@@-0005
Encoder cable
15-pin D-Sub connector
Power cable
LRRA06AMRPN182 connector (pins)
Accurax Linear Axis Installation Manual
1 ENGLISH
Pin No.
Signal
1
SDA*
2
SCL*
3
Not used
4
Not used
5
Not used
6
Not used
7
Not used
8
5V
9
0V
10
Not used
11
Not used
12
Not used
13
Not used
14
Not used
15
Inner shield
Housing
Outer shield
Pin No.
Signal
1
U
2
V
3
GND
4
W
5
Not used
6
Not used
1
1 - 21
