<Important>
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.

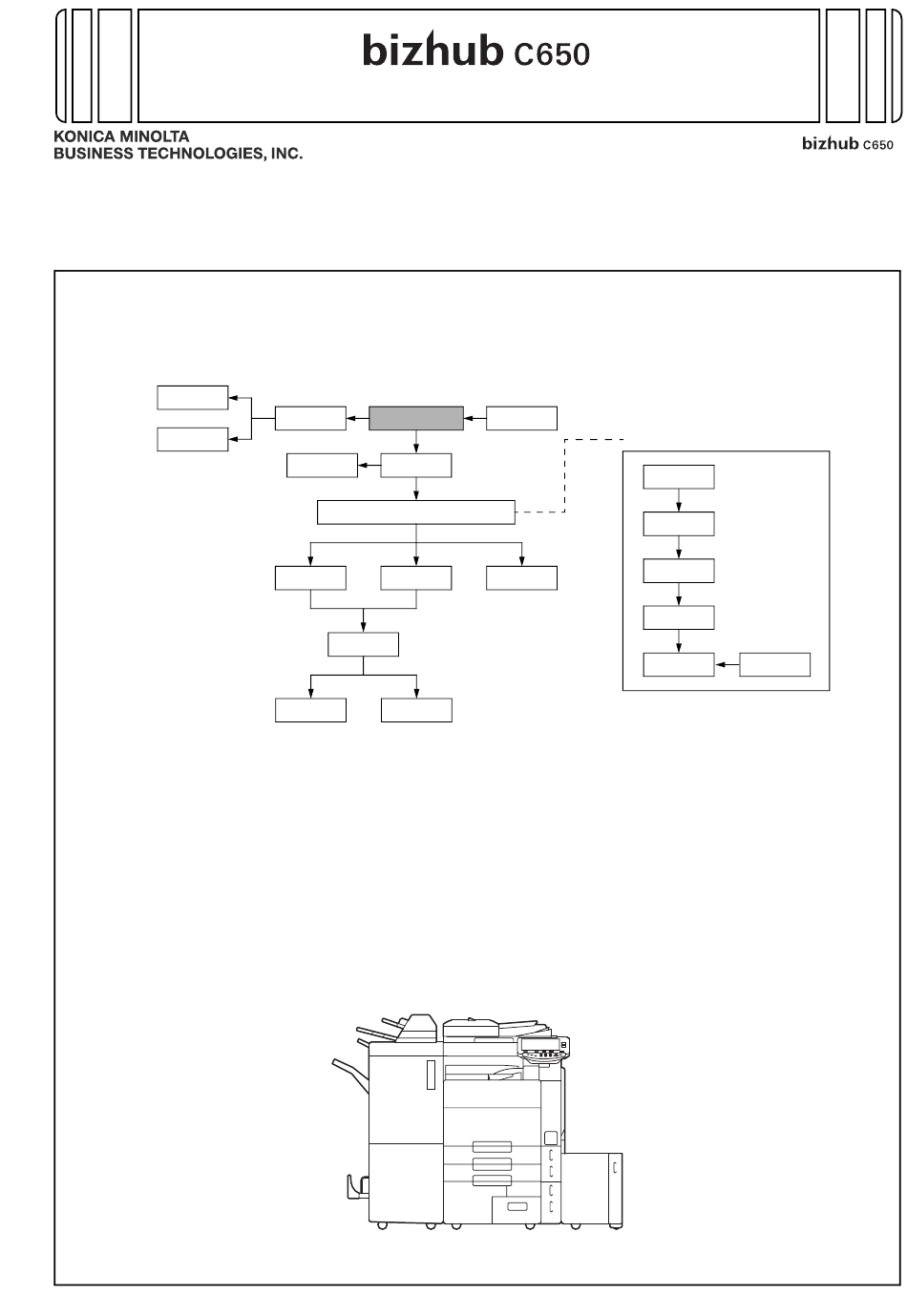

I. Outline of installation procedures
AU-101
AU-201
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
installation manual and perform the procedures correctly.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
• When transporting the machine, assign an adequate number of persons to the job and follow the speci-
fied correct procedures.
(mass: approx. 190 kg (418-3/4 lb))
INSTALLATION MANUAL
WT-502
Machine
SP-501
DF-610
Electron system options
FS-517
FS-608
PI-503
PK-512
PK-513
LU-301
✱ Electron system options
OT-503
* : No particular order in installation procedures.
A00HIXC003DA
E-1
Applied Machine:
SC-503*
FK-502*
EK-602*
IC-409*
ML-501
FK-502
A00H-9627-00

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta Bizhub C650

Summary of Contents for Konica Minolta Bizhub C650

  • Page 1 INSTALLATION MANUAL Applied Machine: <Important> Be sure to correctly follow the procedures in order as explained in this Installation Manual. If you do not follow the procedure in order, the image trouble may occur. I. Outline of installation procedures AU-101 WT-502 Machine LU-301...
  • Page 2 II. Installation space (unit: mm (inch)) IV. Accessory parts bizhub C650 + FS-608 + DF-610 + LU-301 Name Q’ty 1. Imaging unit (IU): Y,M,C,K 2151 (84-11/16) 2. User’s guide holder 3. User’s guide (31-11/16) (31-11/16) (37-11/16) (15-3/16) (Enlarge display operations) 4.

  • Page 3: Unpacking The Machine

    V. Unpacking the machine 4. Position the slope as illustrated and drive nails in to fix the slope in position. 1. Open the shipping box and take out the IU ship- ping box and packaging material. Note: • Save the slope and cushion removed here for later use.

  • Page 4: Removing Protective Tape, Packing And Other Shipping Materials

    VI. Removing protective tape, packing and 2. Remove the packing bracket. other shipping materials 1. Remove protective tape from different parts of the machine. Note: After removing protective tape B, be sure to lock the lever. A00JIXC009DA 3. Remove the protective sheet. A00JIXC007DD <Viewed from point A>...
  • Page 5 VII. Installing the IU 5. Pull the tray 2 out and remove the protective tape from the tray. 1. Open the lower front door. A00JIXC012DB A00JIXC015DA 6. Pull the tray 3 and 4 out and remove the protec- 2. Remove the waste toner box fixing lever and the tive tape from the tray.
  • Page 6 4. Remove protective tape of the IU. 7. Keeping the IU in the level position, insert it all the way as far as it will go. Note: Make sure that the color is same between insert- ing port and the IU. A00JIXC228DA 5.

  • Page 7: Installing The Toner Cartridge

    VIII. Installing the toner cartridge 10. Using the same procedure, install all IUs. Note: Note: • Only for the IU (K), remove caps from the front Since cartridge is not furnished with the machine, and rear ends. purchase toner cartridge (of different colors) sepa- •...
  • Page 8 IX. Connecting the power cord and 4. Insert the toner cartridge into the machine. Note: mounting the accessory parts Make sure that the color is same between insert- 1. Connect the power cord. ing port and the toner cartridge. A00JIXE211DA A00JIXC019DA 2.

  • Page 9: Installing The User's Guide Holder

    4. Attach the cap A and B furnished with the 8. Install the spacer B furnished with the machine. machine. A00JIXC137DB A00JIXC020DA 5. Attach the connector cover furnished with the X. Installing the user’s guide holder machine. Install the user’s guide holder. A00JIXC021DA A00JIXC138DA 6.
  • Page 10 XI. Adjusting touch panel XII. Setting gradation adjust 1. Turn ON the Main Power Switch and then Sub 1. Set that A3 or Ledger paper is loaded in Power Switch. the tray. 2. Press the accessibility key. 2. Display the Service Mode screen. 3.
  • Page 11 7. Place the test pattern face down on the original 13. Place the test pattern face down on the original glass. glass. A00JIXC025DA A00JIXC025DA 8. Place about ten sheets of A3 or Ledger 14. Place about ten sheets of A3 or Ledger paper on the test pattern placed on the original paper on the test pattern placed on the original...

  • Page 12: Date/Time Setting

    XIII. Date/Time setting 19. Place the test pattern face down on the original glass. 1. Make sure that the Service Mode screen is dis- played. 2. Display the Date & Time Setting screen. (To display the Date & Time Setting screen, press Stop →...

  • Page 13: Install Date

    XIV. Install date XVI. Unit change 1. Display the Service Mode screen. Note: (For details of how to display the Service Mode This function allows the user to select the type of screen, see the service manual.) message that will appear when the replacement 2.

  • Page 14: List Output

    XVII. List output XVIII. Changing paper size (Tray 3 and 4) 1. Turn OFF the Main Power Switch. 1. Load the tray 1 with A4 or Letter paper. 2. Pull out the tray 3. 2. Touch “List Output.” 3. Remove the front and rear paper guide plates 3.
  • Page 15 5. Align the paper guide plate (rear) with the line 10. Turn ON the Main Power Switch. marked in the bottom of the tray. Secure the 11. Display the Service Mode screen. paper guide plate (four screws). (For details of how to display the Service Mode screen, see the service manual.) Note: 12.

  • Page 16: Connecting Cables

    XIX. Affixing the tray labels XXI. Check through test print Affix the tray label or paper size label at the location Make operation checks using “Setting Information shown in the illustration. Print.” 1. Select the function to be used as follows: Note: Utility/Counter →...

  • Page 17: Network Setting

    XXIII. Network setting Make the TCP/IP address setting for the network. Note: Consult the network administrator for the setting value to be entered and make settings as required. 1. Select the function to be used as follows: Utility/Counter → Administrator Settings → Enter the Administrator Password →...

  • Page 18: Accessory Parts

    WT-502 Working Table INSTALLATION MANUAL I. Accessory parts II. Installing the working table 1. Using nippers, pull out the knockouts (at two Name Shape Q’ty places) from the right side surface of the 1. Working table machine. A07EIXC001DA 2. Screw (4 ×...
  • Page 19 IC-409 Image Controller INSTALLATION MANUAL I. Checking the package contents This part is not used in this installation procedure. Since this is not directly related to the installation Before starting to set up, check that the following are of the image controller, it is omitted here. included.
  • Page 20 <LED descriptions> 3. Remove the lower back cover (six screws). Port 1 Port 2 A00HIXC033HB Port 1 (For the LAN) Connect the network cable to the LAN. Port 2 (For the COPIER)* Use a crossover cable to connect to the LAN port of the copier.
  • Page 21 5. Remove the two brackets (two screws each) from 7. Attach the image controller (four screws) on the the copier. copier. Note: Note: The four screws removed here will be used to Be sure to use the four screws removed in step 5. install the image controller.
  • Page 22 9. Attach the corner cover (two screws) to the 11. Remove the knockout plate from the cable pass- copier. through opening in the back cover, and then attach the back cover (six screws) to the copier. A00HIXE006HA 10. Plug the enclosed power cord into the power cord connector on the image controller, and then secure the cord with the clamp.
  • Page 23 IV. Specifying the copier settings 13. Remove the interface cover for the copier. From the copier, specify the necessary settings for using the image controller. <Image Controller Settings> 1. Turn on the machine by using the auxiliary power button and the main power switch. 2.

  • Page 24: Connecting To A Computer

    V. Connecting to a computer b : Use the enclosed copier LAN cable (crossover cable) to connect the copier, and connect the There are two ways of connecting to a computer image controller to a hub (LAN). from this machine. With this connection method, the following copier With both connection methods, the network func- function limitations are applied.
  • Page 25 VI. Specifying basic image controller set- Note: • When manually specifying the IP address of the tings (IP address) image controller Since the IP address of the copier is one num- Specify the default settings for the image controller. ber higher than the IP address of the image 1.
  • Page 26 VII. Checking the setup with a test print After setting up the image controller, print the config- uration sheet to check that the controller is operating correctly. <To print a test page> 1. Press the [Utility/Counter] key on the copier. 2.
