Installation Manual | Konica Minolta Kit - Bizhub
132360
Product Version: 360 ~ 420 ~ 500
Version of this manual: 2.2.20
Inepro Kit number: 132360
Konica Kit number: 9967000514
© 2016 Inepro B.V. All rights reserved
Konica Minolta Kit - Bizhub
132360

Advertisement

Table of Contents
loading

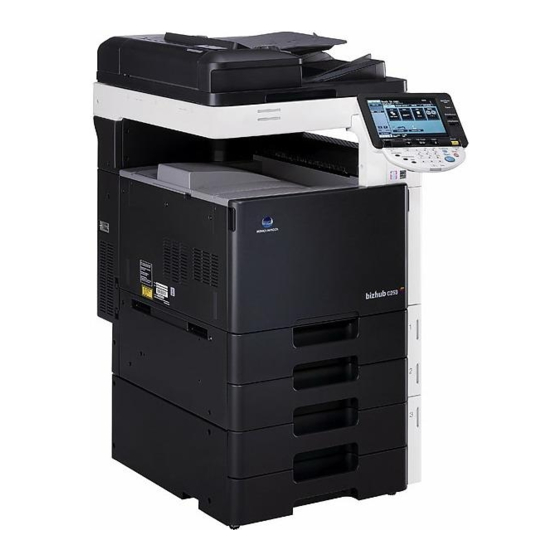

Related Manuals for Konica Minolta Bizhub C203

Summary of Contents for Konica Minolta Bizhub C203

  • Page 1 Konica Minolta Kit - Bizhub 132360 Installation Manual | Konica Minolta Kit - Bizhub 132360 Product Version: 360 ~ 420 ~ 500 Version of this manual: 2.2.20 Inepro Kit number: 132360 Konica Kit number: 9967000514 © 2016 Inepro B.V. All rights reserved...

  • Page 3: Table Of Contents

    1 Attach the PayCon to the bracket ................................ 12 2 Attach the bracket to the copier ................................ 13 Set up the copier 1 Konica Minolta Bizhub Colour V3 ................................ 22 Set up the PayCon 1 Behaviour ................................ 26 2 Network ................................

  • Page 5: Introduction

    Introduction Part...
  • Page 6 Introduction Introduction This kit is meant for the following Konica Minolta Bizhub copiers: Konica Minolta - Bizhub C203 - Bizhub C253 - Bizhub C353 - Bizhub C451 - Bizhub C550 - Bizhub C650 To install this kit we shall: 1. Check the content of kit, read more on page 2.

  • Page 7: Check Kit Content

    Check Kit Content Part...
  • Page 8 KM cableset Minolta Serial I/F - V3 · 1x KM screwset Bizhub V3 C550 · 1x KM Mounting plate Bizhub Colour - V3 · 1x This manual · 1x 150cm Black cat 5 network cable Konica Minolta Kit - Bizhub 132360...
  • Page 9 KM Screwset Bizhub Colour V3 C550 KM Screwset Bizhub Colour V3 C550 In the "KM Screwset Bizhub Colour V3 C550" you should find: · M4 x 5mm Dome shaped, cross head screws · M4 x 12mm Dome shaped, cross head screw ·...
  • Page 10 Check Kit Content KM Mounting plate Bizhub Colour V3 KM Mounting plate Bizhub Colour V3 1x KM mounting plate Bizhub Colour V3 Konica Minolta Kit - Bizhub 132360...
  • Page 11 KM Cableset Minolta serial I/F V3 Version 2.2.20...
  • Page 12 In the "KM Cableset Minolta serial I/F V3" you should find: · 3x Rip ties · 1x Ferrite core · 1x Connection cable · 1x Double sided adhesive tape 25mm x 30mm · 1x Connector block male/male Konica Minolta Kit - Bizhub 132360...
  • Page 13 PayCon copier mounting bracket PayCon copier mounting bracket In the "PayCon copier mounting bracket" you should find: · 1x PayCon copier mounting bracket · 4x Dome shaped, cross head screws · 3x Dome shaped, cross head screws (not needed for this installation) Additional requirements for installation ·...

  • Page 15: Hardware Setup

    Hardware Setup Part...

  • Page 16: Hardware Setup

    2. Close the two left flaps and fasten the middle one with it's screw. Feed the wires through the bracket and connect the power supply to the socket bottom-left to the 'Opto COM 12' and the copier cable to 'Opto COM 12' as shown in the picture Konica Minolta Kit - Bizhub 132360...

  • Page 17: Attach The Paycon To The Bracket

    Attach the PayCon bracket to the copier The mounting instructions differ for the different type of copiers its supports. The instructions for each part will start with the list of copiers that the instructions are meant for. - Bizhub C203 - Bizhub C253 - Bizhub C353...
  • Page 18 Feed the cable to the backside of the copier through the inside. 3. Screw on the mounting plate. Screw on the two cable guiders with the spacers and screws. Screw down the rest of the cover with the original cover screws. Konica Minolta Kit - Bizhub 132360...

  • Page 19: Attach The Bracket To The Copier

    Attach the bracket to the copier 4. Screw on the PayCon with the 3 screws. 5. Loop the wire trough the ferrite core you will attach the the top, and use the existing cable guiders to guide the wire trough 6.
  • Page 20 Hardware Setup 8. Finished Konica Minolta Kit - Bizhub 132360...
  • Page 21 Attach the bracket to the copier - Bizhub C451 - Bizhub C550 - Bizhub C650 1. Remove air cover, filter and back cover (2 pieces) connected with 12 screws 2. Remove 2 screws (because we need to place the mounting bracket) and cut out the hole for the cable. Place the mounting bracket and the cable guiders.
  • Page 22 4. Place the ferrite core with the adhesive tape. Loop the cable in the ferrite core and run it through the original cable guiders. Connect the cable to the connector inside the copier. 5. Replace the covers, filter and air cover. 6. Remove the transport foils to finish the installation Konica Minolta Kit - Bizhub 132360...
  • Page 23 Attach the bracket to the copier 7. Finished You will not need these items! 1. from the screwset - 4x M3 black cable guider - 2x M3 12mm screws - 1x M3 16mm screw - 1x M3 20mm screw - 2x M3 x 5mm spacers - 1x M3 x 12mm spacer...

  • Page 25: Set Up The Copier

    Set up the copier Part...
  • Page 26 Turn on the copier. In this chapter you will set up the copier for use with the PayCon system. Examine the exact settings below. Konica Minolta Bizhub Colour V3 · Konica Minolta Bizhub C203 · Konica Minolta Bizhub C253 · Konica Minolta Bizhub C353 ·...

  • Page 27: Konica Minolta Bizhub Colour V3

    Konica Minolta Bizhub Colour V3 Setting / unsetting restrictions of the MFP (default is all functionality maximum restricted!): Press <Utility/Counter> Select <Administrator Setting3> (or press <3>) Press <1> <2> <3> <4> <5> <6> <7> <8> <OK> Select <Security Settings> (or press <9>) Select <Function Management Settings>...

  • Page 29: Set Up The Paycon

    Set up the PayCon Part...
  • Page 30 Do you use Pcounter? if you do, continue with step 3, if you don't, go to step 8. 3. Do you use Cost Centres (Client Codes) in the PayCon System*? * Sub Client Codes are not supported. Konica Minolta Kit - Bizhub 132360...

  • Page 31: Behaviour

    Behaviour , Go to 'Main Menu' => 'Card / ID' => 'General Settings' => 'Cost Centre Selection'. b. If everybody is required to use a Cost Centre (Client Code), choose 'Required' and confirm with . The users will not be able to use budget purses if there is no server connection. c.

  • Page 32: General Settings

    11. Purse Selection, manage the way the purse is selected. , Go to 'Main Menu' => 'Card/ID' => 'Generic Settings' => 'Purse Selection'. b. Select the selection behaviour in the list (look for a description in the table) confirm with Konica Minolta Kit - Bizhub 132360...

  • Page 33: General Settings

    General Settings Purse Selection Description All Purses Accept all purses Personal Only Only accept personal credit Budget Only Only accept non-personal budget Prefer Personal If the card has a personal credit, pay out of that credit Prefer Budget If the card has a non-personal budget, pay out of that budget Personal + Ask Ask which budget and select personal credit as default Budget + Ask...

  • Page 35: Notes

    Notes Part...
  • Page 36 Notes Notes This area is meant for the reader's notes: Konica Minolta Kit - Bizhub 132360...
  • Page 37 Version 2.2.20...
  • Page 38 Notes Konica Minolta Kit - Bizhub 132360...
  • Page 39 Version 2.2.20...
