Page 1: Operating Instructions
VIESMANN Operating instructions Switch mounting thermostat with touchpad VITOPLANAR Switch mounting thermostat Please retain for future use 6136716 GB 2/2018... -
Page 2: Safety Instructions
Safety instructions Please follow these safety instructions closely to prevent hazards, injury and material losses. Safety instructions explained Danger ¨ This symbol warns against the risk of injury. Caution This symbol warns against the risk of material losses and environmental pollution. Note Text with the word Note contains additional information. - Page 3 Caution Supervise children in the proximity of the appliance. Never permit children to play with the appliance. Cleaning and user maintenance must never be carried out by unsupervised children. Danger ¨ Incorrectly executed work on the appliance can lead to life threatening accidents. Work on electrical equipment may only be carried out by a qualified electrician.
-
Page 4: Information On Operation
Information on operation Danger ¨ If the surface of the appliance or the power cable with the ON/OFF switch is damaged, there is a risk of burns or electric shock. The appliance must not be operated if damaged. Switch off the appliance, disconnect it from the power supply and notify a specialist contractor. -
Page 5: Product Information

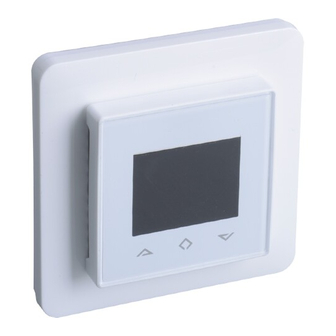

Product information The thermostat is an underfloor heating thermostat equipped with a 1.8 inch TFT colour screen and capacitive contact surfaces for easy and clear navigation. The thermostat features a variety of energy saving programs with individually adjustable times and temperatures. -
Page 6: Operating And Display Elements
Operating and display elements There is a series of contact surfaces on the front of the thermostat. These areas are illuminated and are outside the screen. 06:45 Program In 0:15 1 On/Off/To start screen 2 Scroll up/right 3 Menu/Confirm 4 Scroll down/left 5 Back one step... - Page 7 Room heating Call up the "Program" menu point. If no program has Default setting: 22 °C selected been selected, Setting range: 5 to 35 °C the thermostat heats constantly. Mo - Fr Home Preset times and temperatures. Wake up 6 a.m., 22 °C Individually At work 8 a.m., 17 °C adjustable.
- Page 8 Remote Active (remote Default setting: 22 °C control control must Setting range: 20 to 35 °C be on; see installation instructions) Standby (can be Default setting: 17 °C deactivated) Setting range: Off, 5 to 35 °C Reheating Default setting: 0 h Setting range: 0 to 12 h Reset Reset program...
-
Page 9: Further Settings
Further settings Call up the "Settings" menu point. Time and Set the time date and date. Language Select the Swedish required English language. Norwegian Finnish German Screensaver Three Default setting: Time and different temperature screensaver Setting range: Time and versions. date, none (off) Key lock On/Off... - Page 10 Information Call up the "Energy consumption" menu point. Week time & kWh Displays the kWh and hours for a week. Month time & kWh Displays the kWh and hours for a month. Year time and kWh Displays the kWh and hours for a year.
- Page 11 Information on disposal Disposal of packaging Your contractor will dispose of the packaging from your Viessmann product. DE: Packaging waste is sent to a certified disposal contractor for recycling in line with statutory regulations. AT: Packaging waste is sent to a certified disposal contractor for recycling in line with statutory regulations.
-
Page 12: Your Contacts
Contact your local contractor if you have any questions about your system or wish to arrange maintenance or repair work. You can find local contractors on the internet at www.viessmann.de. Viessmann Ges.m.b.H. A-4641 Steinhaus bei Wels Viessmann Werke GmbH & Co. KG...
