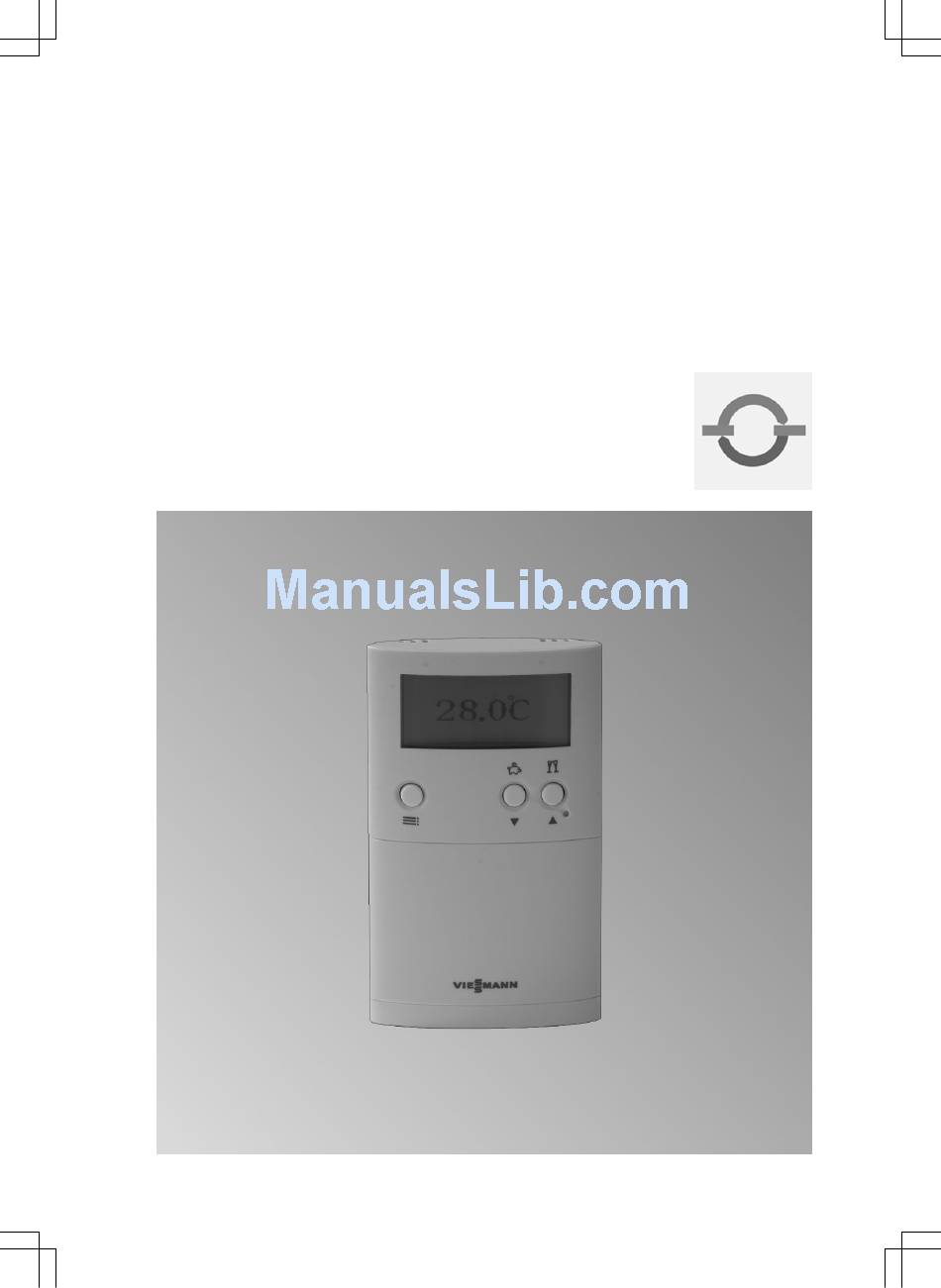

VIESMANN

Operating instructions

for the system user
Room thermostat
Type UTDB and UTDB-RF
VITOTROL 100
Please keep safe.
5592 618 GB
7/2009

Advertisement

Table of Contents
loading

Related Manuals for Viessmann VITOTROL 100

Summary of Contents for Viessmann VITOTROL 100

  • Page 1: Operating Instructions

    VIESMANN Operating instructions for the system user Room thermostat Type UTDB and UTDB-RF VITOTROL 100 Please keep safe. 5592 618 GB 7/2009...

  • Page 2: Safety Instructions

    Safety instructions For your safety Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained Danger Incorrectly executed work on the Danger heating system can lead to life- This symbol warns against the threatening accidents. risk of injury.
  • Page 3 Safety instructions For your safety (cont.) If you smell flue gas Ancillary components, spare and wearing parts Danger Flue gas can lead to life-threat- Please note ening poisoning. Components that are not tested ■ Shut down the heating system. with the heating system may lead ■...

  • Page 4: Table Of Contents

    Index Index Where to find the controls Summary of controls and indicators..............■ Opening the flap....................■ Functions......................■ Symbols on the display..................How to operate the controls................. ■ Standard display....................■ Lock out controls....................Adjusting the room temperature Adjusting....................... 10 ■...
  • Page 5 Changing the address code................. 24 Certificates Declaration of Conformity..................25 ■ Declaration of Conformity Vitotrol 100, type UTDB........... 25 ■ Declaration of Conformity for the Vitotrol 100, type UTDB-RF......25 Maintenance Cleaning....................... 26 Energy saving tips..................... 27 Keyword index....................28...

  • Page 6: Where To Find The Controls

    Where to find the controls Summary of controls and indicators Opening the flap...

  • Page 7: Functions

    Where to find the controls Summary of controls and indicators (cont.) Functions û å ä A Calling up menu E Reset B Display F Confirmation C Economy mode û(page 17) or G 1 step back in the menu changing values v H Battery compartment D Party mode g (page 16) or changing values V...

  • Page 8: How To Operate The Controls

    Where to find the controls Summary of controls and indicators (cont.) A Heat demand Þ Party mode enabled 23:26 û Economy mode enabled 01.01.09 Manual mode active Prog 1 21.5°C j Holiday program active Ç Frost protection mode enabled Î Changing the batteries §...

  • Page 9: Lock Out Controls

    How to operate the controls (cont.) Lock out controls You can lock the control keys of the Vitotrol 100. To do this, press v and V simultaneously for 5 s. To unlock the keys, press v and V simultaneously again for 5 s.

  • Page 10: Adjusting The Room Temperature

    Adjusting the room temperature Adjusting Selecting the operating mode You can select between the following operating modes: ■ Heating operation with alternating standard and two reduced room temperatures in accordance with three pre-programmed or individually selected time programs (see page 10) ■...
  • Page 11 Adjusting the room temperature Adjusting (cont.) Saturday and Sunday Time phase Start Room temperature 07:00 08:00 Comfort 08:00 12:00 Comfort 12:00 14:00 Comfort 14:00 16:00 Comfort 16:00 23:00 Comfort 23:00 07:00 Reduced Time program 2 – Prog 2 Monday to Friday Time phase Start Room temperature...

  • Page 12: Frost Protection Mode

    Adjusting the room temperature Adjusting (cont.) Saturday and Sunday Time phase Start Room temperature 07:00 08:00 Comfort 08:00 12:00 Comfort 12:00 14:00 Comfort 14:00 18:00 Comfort 18:00 23:00 Comfort 23:00 07:00 Reduced Frost protection mode If you do not want to heat the rooms but 3.

  • Page 13: Setting A Permanent Room Temperature

    Adjusting the room temperature Setting a permanent room temperature You can select 3 temperatures in the time programs: ■ Standard room temperature "Comfort" Setting in the delivered condition: 21 °C Setting range: 10 to 40 °C ■ Room temperature "Eco" Setting in the delivered condition: 19 °C Setting range: 10 to 40 °C ■...
  • Page 14 Adjusting the room temperature Setting a permanent room temperature (cont.) You can select time phases for several 13. With v/V select the required time days (day groups) or for individual days: phase or first the required day. ■ "MO–SU" the same time phases for every day of the week 14.

  • Page 15: Changing The Room Temperature For A Few Days Only

    Adjusting the room temperature Setting a permanent room temperature (cont.) 07. With v/V select the program you 11. With v/V select the program you want to change (e.g. "Prog 1"). want to copy. 08. Confirm with OK. 12. Confirm with OK. 09.

  • Page 16: Changing The Room Temperature For A Few Hours Only

    Adjusting the room temperature Changing the room temperature for a few hours only The following functions enable you to change the room temperature for a few hours without permanently altering your settings. The modified temperature remains enabled until the next changeover within a pro- gram or until the next program change.

  • Page 17: Setting Economy Mode

    Adjusting the room temperature Changing the room temperature for a few hours… (cont.) Setting economy mode In economy mode, the standard room temperature will be reduced automati- cally by 2 °C. 1. Press û for approx. 5 s. The display shows "û". 2.

  • Page 18: Further Adjustments

    Further adjustments Time and date 1. Open the flap. 6. Confirm with OK. 2. Press å twice. 7. With v/V select "Date - Time". 3. With v/V select "Settings". 8. Confirm with OK. 9. With v/V select the current day and 4.

  • Page 19: Temperature Adjustment

    Temperature adjustment The displayed room temperature can deviate from the actual room temperature if your Vitotrol 100 is installed in an unfavourable position, e.g. on an external wall or near a chimney. You can correct this temperature deviation with a compensator.
  • Page 20 4. Confirm with OK. 5. With v/V select "Service". 6. Confirm with OK. 7. With v/V set the required hystere- sis value. 8. Confirm twice with OK. 9. Only for the Vitotrol 100, type UTDB- Exit the menu with ä.

  • Page 21: Scanning Options

    Scanning options Scanning temperatures and further settings 1. Press å. 2. With v/V call up the current set temperature. The display shows the following details: ■ Room temperature ■ Date and time ■ Current program ■ Weekday Scanning time programs Time program for the current day for Prog 1 to Prog 3 The display shows the switching times Central heating from 06:00 A to 22.00...

  • Page 22: What To Do If

    ■ Room temperature (see page 13) ■ Time (see page 18) Wireless connection to the boiler control Change the address code (see unit interrupted (only for the Vitotrol 100, page 24). type UTDB-RF with wireless connec- tion). At the receiver unit, the display A flashes.

  • Page 23: Changing The Batteries

    ■ Never use rechargeable batteries. ■ Replace both batteries every 18 months. The Vitotrol 100 has a power reserve of 3 min. If you replace the batteries within this time, all set details will be retained. After the power reserve has been excee- ded, carry out a reset (see following page).

  • Page 24: Changing The Address Code

    After a reset, re-enter the language, time and date. Changing the address code Only for the Vitotrol 100, type UTDB-RF if the wireless receiver A flashes. 1. Press Q on the wireless receiver for 9. Confirm with OK. The display shows a number combi- approx.

  • Page 25: Certificates

    Declaration of Conformity Declaration of Conformity Vitotrol 100, type UTDB We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, confirm as sole respon- sible body that the product Vitotrol 100, type UTDB complies with the following standards: DIN EN 60730-1: 2005-12 DIN EN 55014-1: 2007-11...

  • Page 26: Maintenance Cleaning

    Maintenance Cleaning The equipment can be cleaned with a commercially available domestic clean- ing agent (non-scouring).

  • Page 27: Energy Saving Tips

    Energy saving tips Energy saving tips With the following steps, you can save additional energy. ■ Correct ventilation/airing. Briefly open windows fully and at the same time close the thermostatic radi- ator valves. ■ Never overheat a room; endeavour to achieve 20 °C room temperature;...

  • Page 28: Keyword Index

    Contact your local contractor if you have any questions regarding the maintenance and repair of your system. You may, for example, find local contractors on the internet under www.viessmann.com. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford...
