- Page 1 VIESMANN Operating instructions for system users Room thermostat Type UTA VITOTROL 100 Please keep safe 5592 469 GB 5/2004...
-
Page 2: For Your Safety
Safety instructions For your safety Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained If you smell gas Danger Danger This symbol warns against the Escaping gas can lead to risk of injury. explosions which may lead to serious injury. - Page 3 Safety instructions For your safety (cont.) In case of fire Ancillary components, spare and wearing parts Danger Fire creates the risk of burning Please note and explosions. Components which are not Shut down the heating sys- tested with the heating system tem.
-
Page 4: Initial Start-Up
Introduction Initial start-up The initial start up and matching of Wait for one hour after the equipment the control unit to local conditions and has been connected by your contrac- the structural characteristics of the tor to allow the equipment to adjust building must be carried out by your itself to its ambient temperature. -
Page 5: Summary Of Controls And Indicators

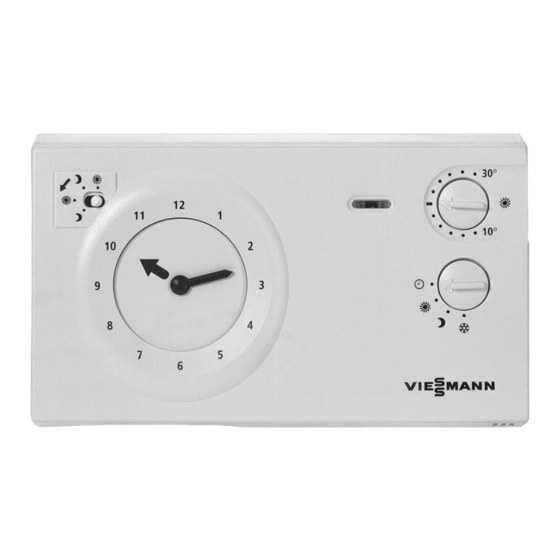

Where to find the controls Summary of controls and indicators A Scale ring with day program E Controller for electronic feedback B Switch status display (to be set up by your contractor) C Function display (illuminates dur- F Heating program selector ing heating operation) G Temperature matching controller D Control thermostat for standard... -
Page 6: Selecting A Program
Settings Selecting a program "Standby mode" Vitotrol 100 will only start, when the room temperature drops below +6 °C (e.g. to start during the holidays to prevent house plants from dying due to cold). "Reduced operation" Constant central heating with reduced room temperature. - Page 7 Settings Setting the room temperature (cont.) Reduced room temperature Select the required temperature with the thermostat for reduced mode " ". The recommended temperature is 16 °C. Creating the day program for automatic mode 1. Open the room thermostat flap. 2.
-
Page 8: Set The Time
Settings Creating the day program for automatic mode (cont.) 3. Determine the period for reduced 5. Close the room thermostat flap and mode (e.g. 21:15 h until 05:45 h). set the time (see page 8). Push all tabs for this period out- wards. -
Page 9: Rooms Are Too Cold
What needs doing? ... rooms are too cold Cause Remedy Vitotrol 100 incorrectly adjusted Check settings and correct, if required: Program (see page 6) Room temperature (see page 6) Day program (see page 7) Time (see page 8) Connected device faulty (e.g. heating... - Page 10 Repairs Cleaning All devices may be cleaned with a commercially available domestic cleaning agent (non scouring).
-
Page 11: Energy Saving Tips
Energy saving tips Energy saving tips Not only will you benefit from the Close roller shutters (where advantages of a modern heating sys- installed) at dusk. tem, but you can also save energy by Utilise the remote control options, e. the way you operate your system. -
Page 12: Your Contact
Your contact Contact your local heating contractor if you have any questions regarding the maintenance and repair of your heating system. You may, for example, find local heating contractors on the internet under www.viessmann.com. Viessmann Werke GmbH&Co KG Viessmann Limited...
