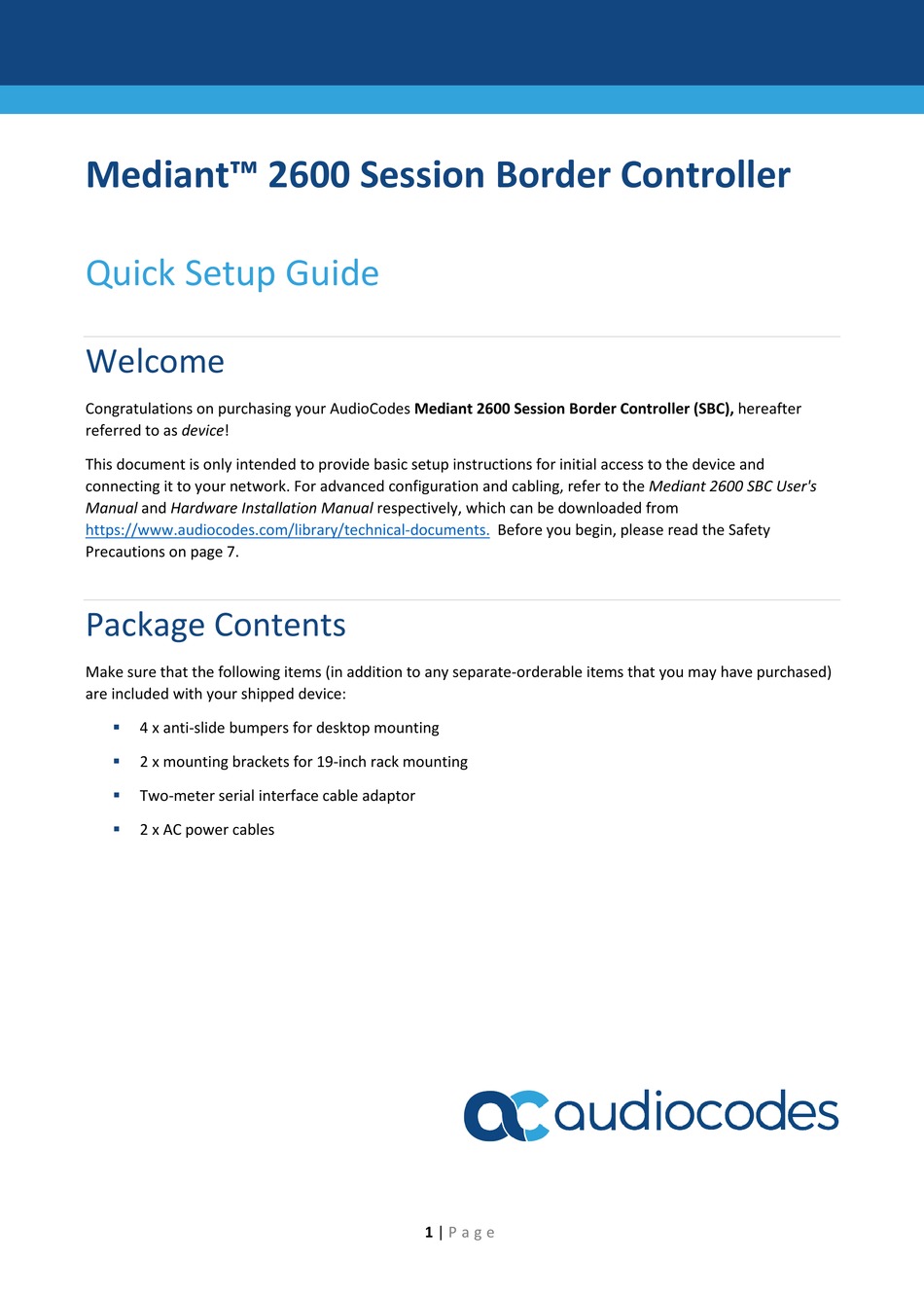

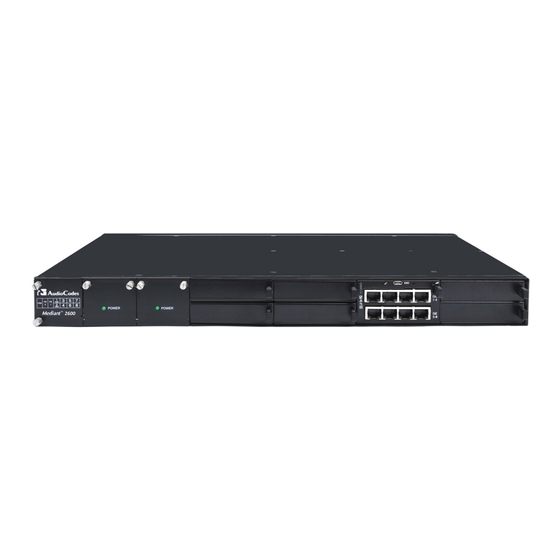

Mediant™ 2600 Session Border Controller
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes Mediant 2600 Session Border Controller (SBC), hereafter
referred to as device!
This document is only intended to provide basic setup instructions for initial access to the device and
connecting it to your network. For advanced configuration and cabling, refer to the Mediant 2600 SBC User's
Manual and Hardware Installation Manual respectively, which can be downloaded from
https://www.audiocodes.com/library/technical-documents.
Precautions on page 7.
Package Contents
Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are included with your shipped device:
4 x anti-slide bumpers for desktop mounting
2 x mounting brackets for 19-inch rack mounting
Two-meter serial interface cable adaptor
2 x AC power cables
Before you begin, please read the Safety
1 |
P a g e

Advertisement

Table of Contents
loading

Related Manuals for AudioCodes Mediant 2600

Summary of Contents for AudioCodes Mediant 2600

  • Page 1 This document is only intended to provide basic setup instructions for initial access to the device and connecting it to your network. For advanced configuration and cabling, refer to the Mediant 2600 SBC User's Manual and Hardware Installation Manual respectively, which can be downloaded from https://www.audiocodes.com/library/technical-documents.
  • Page 2 Physical Description of Front Panel [The number and type of port interfaces depends on the ordered hardware configuration.] Fan Tray Module #2 with a schematic displayed on its front panel showing the chassis’ slot numbers. Power Supply module #2. Power Supply module #1. (Slots 1-2) Covered with blank AMC modules for unused AMC slots.

  • Page 3: Mounting The Device

    You can also mount the device in a standard 19-inch rack, by placing it on a pre-installed rack shelf (not supplied), and then securing the device to the rack frame using front-mounting brackets (supplied). For additional 19-inch rack mounting options, refer to the Mediant 2600 E-SBC Hardware Installation Manual. Powering Up the Device The device is powered from a standard alternating current (AC) electrical wall outlet.

  • Page 4: Assigning An Ip Address

    Connect the line socket of the AC power cord (supplied) to the device's AC power socket located on the rear panel. Connect the plug at the other end of the AC power cord to a standard electrical outlet. Assigning an IP Address Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 0.0.0.0) to initially access the device's Web-based management interface and then change it to suit your network's addressing scheme for subsequent connectivity.
  • Page 5 On your computer, open a standard Web browser, and then in the URL field enter the device's default IP address; the Web Login screen appears: Type in the default username (Admin) and password (Admin), and then click Login. Open the Interface table (Configuration tab > VoIP > Network > IP Interfaces Table). Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in the dialog box, change the device's IP address to suit your networking address scheme.

  • Page 6: Customer Support

    Obtaining Documentation and Software If you are a registered user, you can download the device's latest software version from AudioCodes' Services Portal at https://services.audiocodes.com. For documentation relating to the device such as the User's Manual and Hardware Installation Manual, go to https://www.audiocodes.com/library.

  • Page 7: Safety Precautions

    Safety Precautions This device is an indoor unit and therefore, must not be installed outdoors. Ethernet cabling must be  routed only indoors and must not exit the building. The device must be installed and serviced only by qualified service personnel. ...
  • Page 8 Website: https://www.audiocodes.com/ ©2018 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice and CloudBond are trademarks or registered trademarks of AudioCodes Limited.
