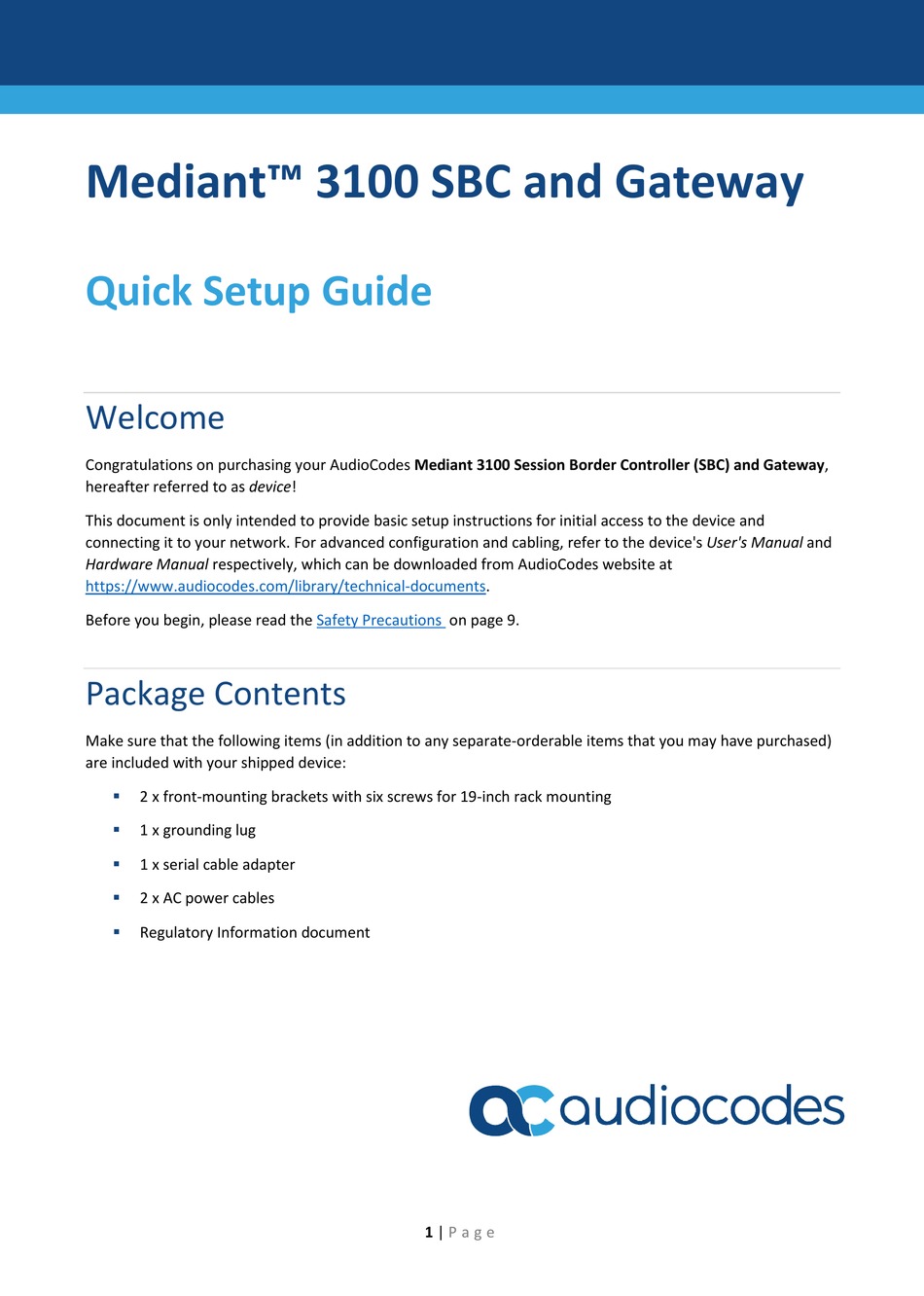

Mediant™ 3100 SBC and Gateway
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes Mediant 3100 Session Border Controller (SBC) and Gateway,
hereafter referred to as device!
This document is only intended to provide basic setup instructions for initial access to the device and
connecting it to your network. For advanced configuration and cabling, refer to the device's User's Manual and
Hardware Manual respectively, which can be downloaded from AudioCodes website at
https://www.audiocodes.com/library/technical-documents.
Before you begin, please read the
Package Contents
Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are included with your shipped device:
2 x front-mounting brackets with six screws for 19-inch rack mounting
1 x grounding lug
1 x serial cable adapter
2 x AC power cables
Regulatory Information document
Safety Precautions
on page 9.
1 |
P a g e
Advertisement
Related Manuals for AudioCodes Mediant 3100
Summary of Contents for AudioCodes Mediant 3100
- Page 1 Mediant™ 3100 SBC and Gateway Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes Mediant 3100 Session Border Controller (SBC) and Gateway, hereafter referred to as device! This document is only intended to provide basic setup instructions for initial access to the device and connecting it to your network.
- Page 2 Physical Description of Front Panel LED indicating power status: Green On The chassis is receiving power and the Power Supply modules are operating normally. Red On One of the Power Supply modules is faulty. The chassis is not receiving any power. LED indicating fan status: Green On The Fan Tray module is operating normally.
- Page 3 LED indicating High-Availability (HA) status: Note: HA will only be supported from a specific 7.4 software version. Green On The device is running in HA mode and is the Active unit. Green Flashing The device is running in HA mode and is the Redundant unit. Orange On The device is running in Standalone mode (i.e., HA not configured).
- Page 4 Physical Description of Rear Panel S1 1-16 RJ-48C ports for connecting T1/E1 PSTN trunk interfaces. S2 17-32 GE 1-8 8 x 100/1000Base-T (Gigabit) Ethernet ports (RJ-45) for connecting to the IP network. Each port provides LEDs to indicate Ethernet status: Green On Ethernet link established.
-
Page 5: Mounting The Device
Mounting the Device The device is designed to be mounted in a standard 19-inch rack. This is done by placing it on a shelf (not supplied) in a 19-inch rack and then securing it to the rack's posts, using front-mounting brackets (supplied). Install a shelf in the 19-inch rack on which you will place the device. -
Page 6: Powering The Device
Powering the Device The device can be powered from a standard alternating current (AC) electrical wall outlet or a DC power source. 1. GROUNDING: Ground (earth) the device by crimping an electrically earthed strap of 8-AWG (minimum) wire into the grounding lug (supplied), and then attaching the grounding lug to the chassis, as shown in the following figure, making sure that the spring washer is located between the screw head and the lug. -
Page 7: Assigning An Ip Address
Assigning an IP Address Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 0.0.0.0) to initially access the device's Web-based management interface and then change it to suit your network's addressing scheme for subsequent connectivity. Using a CAT-5e/6 shielded twisted pair (STP) straight-through RJ-45 Ethernet cable, connect Ethernet port GE 1 or GE 2 (located on the rear panel) to the LAN port of your computer: Change the IP settings of your computer to correspond with the device's default IP address and subnet mask. - Page 8 Re-cable the device to the required network. You can now access remotely the device's management interfaces, using the new IP address. Obtaining Software and Documentation If you have a maintenance and support agreement with AudioCodes, you can download the device's latest software version from AudioCodes' Services Portal at https://services.audiocodes.com (registered users only).
-
Page 9: Safety Precautions
Safety Precautions The device must be installed and serviced only by qualified service personnel. The device is considered as IPX0 non-water ingress protected and therefore, must be installed only indoors. Do not expose the device to water or moisture. ... - Page 10 AudioCodes enables enterprises and service providers to build and operate all-IP voice networks for unified communications, contact centers, and hosted business services. AudioCodes offers a broad range of innovative products, solutions and services that are used by large multi- national enterprises and leading tier-1 operators around the world.
