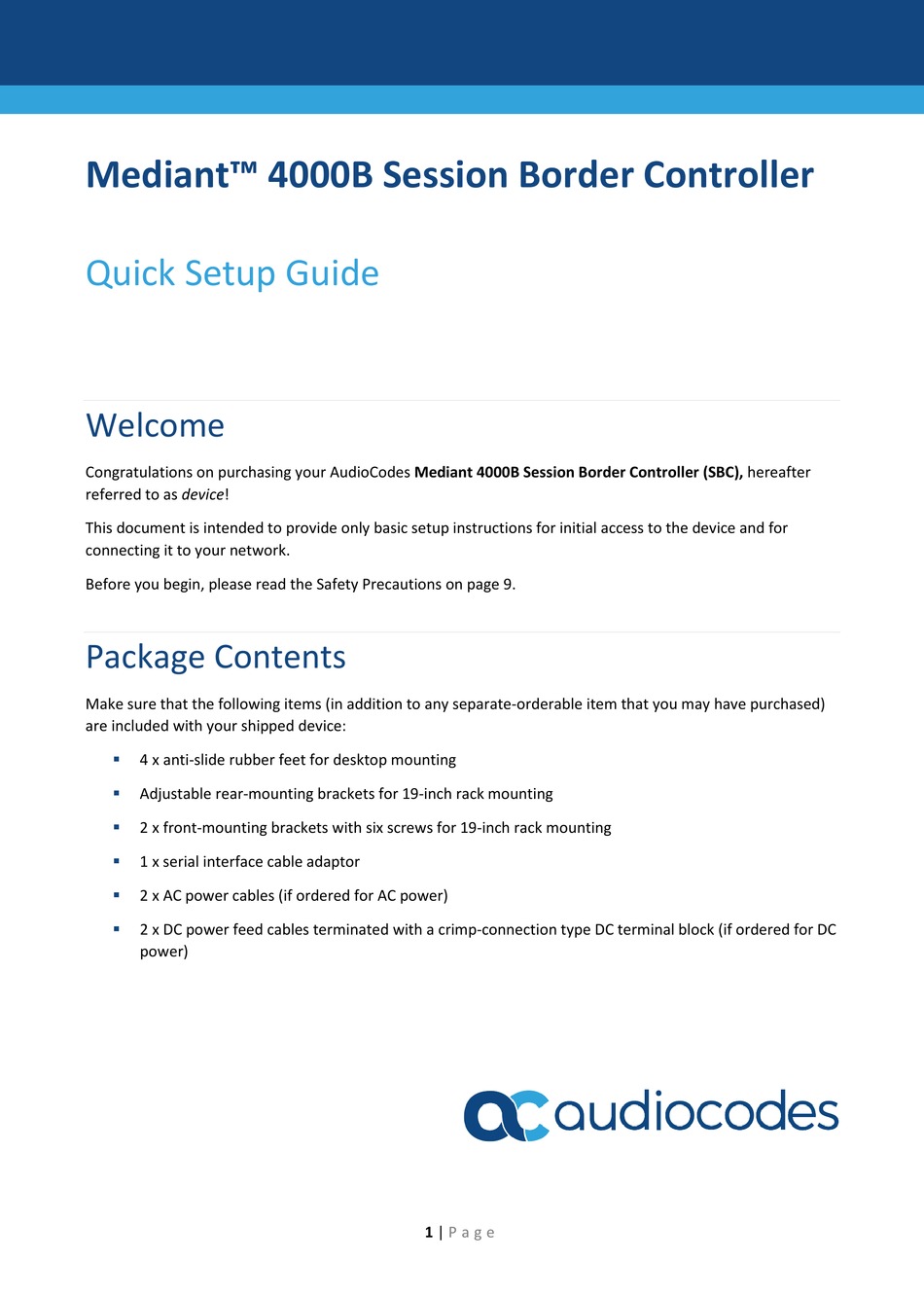

Mediant™ 4000B Session Border Controller
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes Mediant 4000B Session Border Controller (SBC), hereafter
referred to as device!
This document is intended to provide only basic setup instructions for initial access to the device and for
connecting it to your network.
Before you begin, please read the Safety Precautions on page 9.
Package Contents
Make sure that the following items (in addition to any separate-orderable item that you may have purchased)
are included with your shipped device:
4 x anti-slide rubber feet for desktop mounting
Adjustable rear-mounting brackets for 19-inch rack mounting
2 x front-mounting brackets with six screws for 19-inch rack mounting
1 x serial interface cable adaptor
2 x AC power cables (if ordered for AC power)
2 x DC power feed cables terminated with a crimp-connection type DC terminal block (if ordered for DC
power)
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for AudioCodes Mediant 4000B
Summary of Contents for AudioCodes Mediant 4000B
- Page 1 Mediant™ 4000B Session Border Controller Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes Mediant 4000B Session Border Controller (SBC), hereafter referred to as device! This document is intended to provide only basic setup instructions for initial access to the device and for connecting it to your network.
- Page 2 Physical Description of Front Panel [Number and type of modules depend on ordered hardware configuration] Fan Tray module #1 and a STATUS LED indicating status of fan and Power Supply #2 module: Green On Fan Tray module and Power Supply module are operating normally. Red On Any of the following: Fan Tray module failure.
-
Page 3: Mounting The Device
You can also mount the device in a standard 19-inch rack, by placing it on a pre-installed rack shelf (not supplied), and then securing it to the rack frame using front-mounting brackets (supplied). For additional 19- inch rack mounting options, refer to the Mediant 4000B SBC Hardware Installation Manual. P a g e... -
Page 4: Powering The Device
Powering the Device The device provides two hot swappable Power Supply modules, providing load sharing and 1+1 power redundancy in case of failure in one of the Power Supply modules. Depending on ordered power type, the device is powered from a standard alternating current (AC) electrical wall outlet or from a direct current (DC) power source. - Page 5 Connecting to DC power source: Connect the open ends of the two wires on the DC power feed cable (supplied) to the DC power source. Make sure that the wires are connected to the correct polarity (black wire negative; wire positive).
-
Page 6: Assigning An Ip Address
Assigning an IP Address Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 0.0.0.0) to initially access the device's Web-based management interface and then change it to suit your network's addressing scheme for subsequent connectivity. Using a CAT-5e or CAT-6 straight-through RJ-45 Ethernet cable, connect Ethernet port GE 1 or GE 2, located on the SBC module on the device's front panel, to your computer's LAN port. - Page 7 Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in the dialog box, modify the device's OAMP interface. Click Apply to submit your changes; your connection with the device becomes unavailable at the default IP address (due to the new IP address).
-
Page 8: Customer Support
Obtaining Documentation and Software If you have a maintenance and support agreement with AudioCodes, you can download the device's latest software version from AudioCodes' Services Portal at https://services.audiocodes.com (registered users only). You can also download additional documentation relating to the device (such as the User's Manual and Hardware Manual) from AudioCodes' website at https://www.audiocodes.com/library/technical-... -
Page 9: Safety Precautions
Do not operate the device without the two Fan Tray modules. Only modules supplied and approved by AudioCodes may be installed in the chassis slots. The device must be installed only in telecommunication sites in compliance with ETS 300-253 ... - Page 10 Website: https://www.audiocodes.com/ ©2019 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, AudioCodes Room Experience and CloudBond are trademarks or registered trademarks of AudioCodes Limited.
