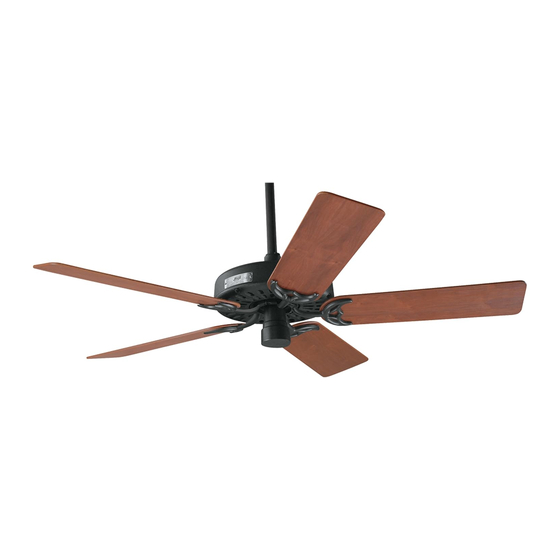

Hunter ORIGINAL Instructions Manual

Hide thumbs Also See for ORIGINAL:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Manual
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Hunter Fan Company
41532-01 • 02/11/15

Advertisement

Table of Contents
loading

Related Manuals for Hunter ORIGINAL

Summary of Contents for Hunter ORIGINAL

  • Page 1 For Your Records and Warranty Assistance Model Name: _____________________ Catalog/Model No.: ________________ Date Purchased: ___________________ Where Purchased: _________________ For reference also attach your receipt or a copy of your receipt to the manual. Hunter Fan Company 41532-01 • 02/11/15...

  • Page 2: Table Of Contents

    Before installing your fan, for your records and warranty assistance, record the information from the carton and the Hunter nameplate label (located on the top of the fan motor housing). Cautions and Warnings • Read this entire manual carefully before beginning installation. Save these instructions.
  • Page 3 Optional Accessories Understanding Mounting Hunter’s patented mounting system provides you maximum ease in installing your fan. This fan was designed to be mounted only on flat ceilings and can be used only on ceilings no less than 8 feet high.

  • Page 4: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 70 lbs (31.8 kg) pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...

  • Page 5: Pre-Installation

    (walls, posts, etc.) should be within 30” of the tips of the blades (see Fig. 1). Your Hunter fan comes with the proper hardware to hang the fan from a 8 foot ceiling so the fan blades will be 12” from the ceiling and approximately 7 feet from the floor (see Fig. 1).

  • Page 6: Installing Ceiling Hardware

    Use a 11 mm wrench to install the (2) 3 1/2” lag bolts, found in the hardware bag, to secure the U-bracket to the joist (see Fig. 2). Exploded View Installed View Cross Brace Ceiling Outlet Rubber Bushing U-Bracket and Pin Lag Bolt Fig. 2 3 1/2” Lag Bolt Hunter Fan Company 41532-01 • 04/13/18...

  • Page 7: Hanging The Fan

    4. Excess wiring can be cut, but leave at least 8" extending from the top of the downrod. NOTE: Some of the pipe threads may still be visible. Wires Hanger Pipe Motor Motor Housing Housing Set Screw Fig. 4 Fig. 3 Hunter Fan Company 41532-01 • 04/13/18...
  • Page 8 10. Lift the fan by the motor housing. Hook the hanger bracket assembly onto the rubber bushing and pin. Ensure both ends of the pin are outside the hanger bracket assembly (see Fig. 7b). Bushing Hanger Rubber Fig. 7a Bracket Bushing Assembly and Pin Fig. 7b Hunter Fan Company 41532-01 • 04/13/18...

  • Page 9: Wiring The Fan

    Fig. 9 7. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box. Hunter Fan Company 41532-01 • 04/13/18...

  • Page 10: Installing The Canopy

    3. Tighten the canopy assembly screws (see Fig. 10) using a #2 Phillips-head screwdriver. 4. Tighten the canopy set screw (see Fig. 10) using a #1 Phillips-head screwdriver. Canopy Canopy Set Screw Canopy Assembly Screw Fig. 10 Hunter Fan Company 41532-01 • 04/13/18...

  • Page 11: Lubrication

    Fig. 12 Your Original Hunter’s Unique Lubricating System The bearings in your Hunter Original Ceiling Fan are submerged in oil, which lubricates all bearing surfaces as the fan operates. We recommend periodically checking the oil to ensure the correct level is maintained.

  • Page 12: Fan Blade Assembly

    (See Fig. 14) using a #2 Phillips-head screwdriver. NOTE: With the Hunter Original, you have an option to install either four or five blades. For five blades, mount to the outer row of holes on the motor. For four blades, use the inner row (see Fig. 15).

  • Page 13: Operation And Care

    3. If the oil touches the end of the pipe cleaner, the fan has ample oil. If it does not touch, add SAE 10 non-detergent oil slowly until it touches the pipe cleaner (see. Fig. 18). 1/2" Pipe Cleaner Pipe Cleaner Fig. 17 Fig. 18 Hunter Fan Company 41532-01 • 04/13/18...

  • Page 14: Energy Star

    1. Contact your nearest service representative or dealer. If you need parts or service assistance, please call 1-888-830-1326 or visit us at our web site at www.HunterFan.com. Hunter Fan Company 7130 Goodlett Farms Pkwy. #400 Memphis, Tennessee 38016 Hunter Fan Company...
