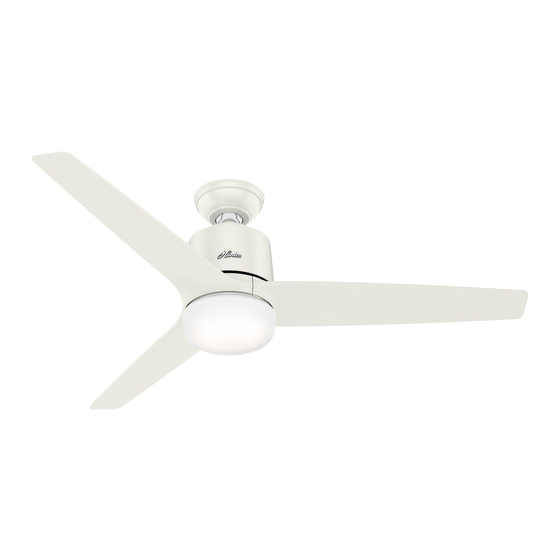

- Page 1 Overture Installation Manual Model: 59646 Fresh White 51221 Matte Nickel 51427 Matte Black Fan weight ±0.9 kg (2 lb): 9.1 kg (20.0 lb) ©2020 Hunter Fan Co. PG3905 r110520...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Installing the Downrod Follow below if you are using the downrod that came Hunter Pro Tip: pre-assembled in your box. Need to install a longer or shorter downrod? Check out the guide at the end of The ground wire attached to the this manual. -
Page 7: Wiring The Fan
If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the... -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Put the blade washers found in the hardware bag onto the blade screws found in the hardware bag. -
Page 9: Assembling The Light Kit
1886 Assembling the Light Kit 1 of 3 2 of 3 Light Kit Screw Light Kit Screw Insert the third screw, Feed the wire plug through the found in the hardware center hole of the upper switch bag, into place and then Partially install two light kit housing, then wrap keyhole tighten all three screws. -
Page 10: Preparing The Remote
1886 Preparing the Remote For your convenience, a remote function card The remote transmitter is already is packed in with your remote. paired to the receiver and ready to use. Dimming mode is on by default. To access the battery compartment, Note: If you need to pair your remote, remove the the battery door to the turn fan power off and back on at the... -
Page 11: Troubleshooting
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated. • Use the provided balancing kit and instructions to balance the fan. Hunter Pro Tip: Noisy Operation Cleaning the Fan • Make sure the blades are properly installed. - Page 12 Monday - Friday 8am - 6pm CST. Saturday 11am - 4pm CST (English or Español) provide maintenance to the fan, or acts of God (e.g. flood). Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
