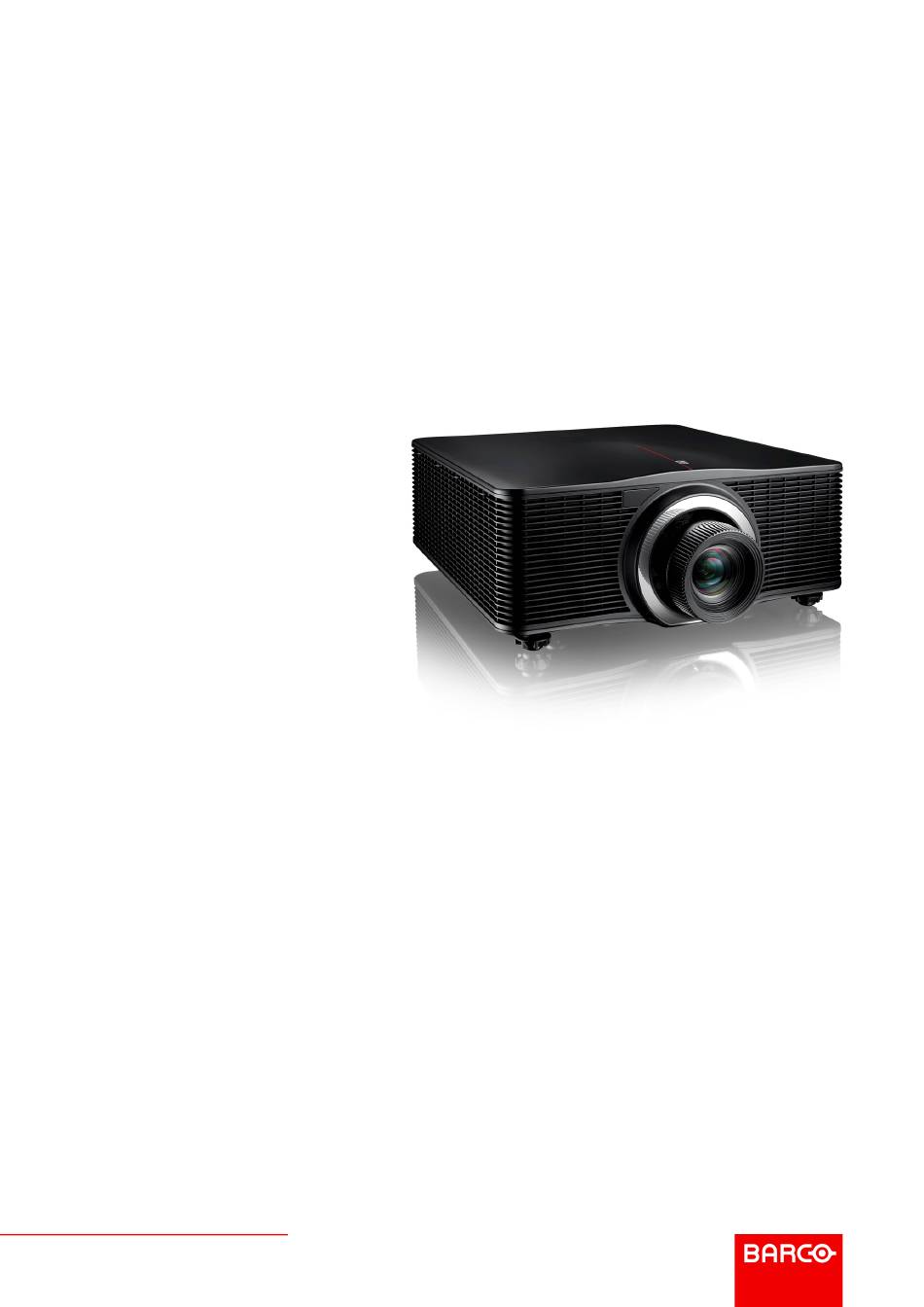

- Page 1 Safety manual ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: General Considerations
G60 projector. Clarification of the term “G60” used in this document When referring in this document to the term “G60” means that the content is applicable for following Barco products: •... - Page 4 ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.
-
Page 5: Important Safety Instructions
Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire. - Page 6 Safety • Let the projector cool down completely before storing. Remove cord from the projector when storing. To prevent projector damage • Always remove lens cap before switching on the projector. If the lens cap is not removed, it may melt due to the high energy light emitted through the lens.
-
Page 7: Product Safety Labels
If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. -
Page 8: Risk Group 3 Safety
Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation. FOR PROFESSIONAL USE ONLY means installation can only be carried out by Barco AUTHORIZED PERSONNEL familiar with potential hazards associated with high intensity light beams. -
Page 9: High Brightness Precautions: Hazard Distance (Hd)
Safety 1.4.2 High Brightness precautions: Hazard Distance (HD) Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the cornea or on the skin. The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD. -
Page 10: Hd For Fully Enclosed Projection Systems
• This product can only be installed by Barco or sold or leased only to valid laser light show variance holders. In other words our installers are required to have an approved laser light show variance. Such installers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the RG3 LIPs into their shows. - Page 11 Safety RESTRICTED AREA DIFFUSE REFLECTION Image 1-4 Restricted Access location (enclosed projection area). Restriction Zone. Projector. Projection Distance. Theater (observation area). Separation Width. Must be minimum 1 meter. For this type of setup 3 different HD shall be considered: • HD as discussed in “High Brightness precautions: Hazard Distance (HD)”, page 9, relevant for intrabeam exposure.
- Page 12 R5910886 /02 | 2019-03-13 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
