INSTALLATION INSTRUCTIONS: MCD USB MODULE
1. Introduction
The USB Module can be used in conjunction with WinMaster to manage Danfoss soft starters.
These instructions detail the installation, set-up and configuration of the USB Module. For details on
using WinMaster, refer to the WinMaster help file.
2. Installation
CAUTION
Remove mains and control voltage from the soft starter before attaching or removing accessories.
Failure to do so may damage the equipment.

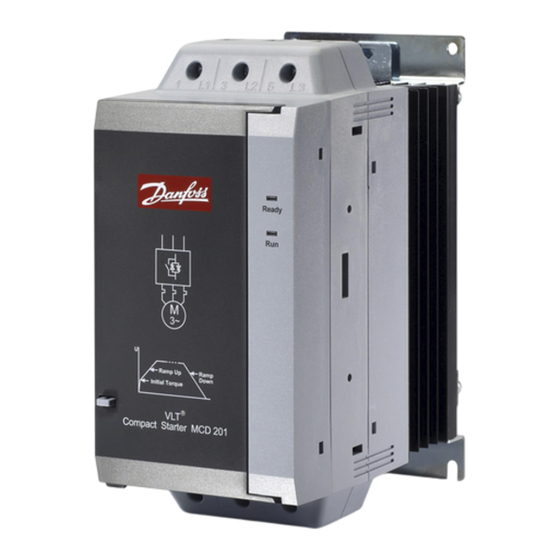

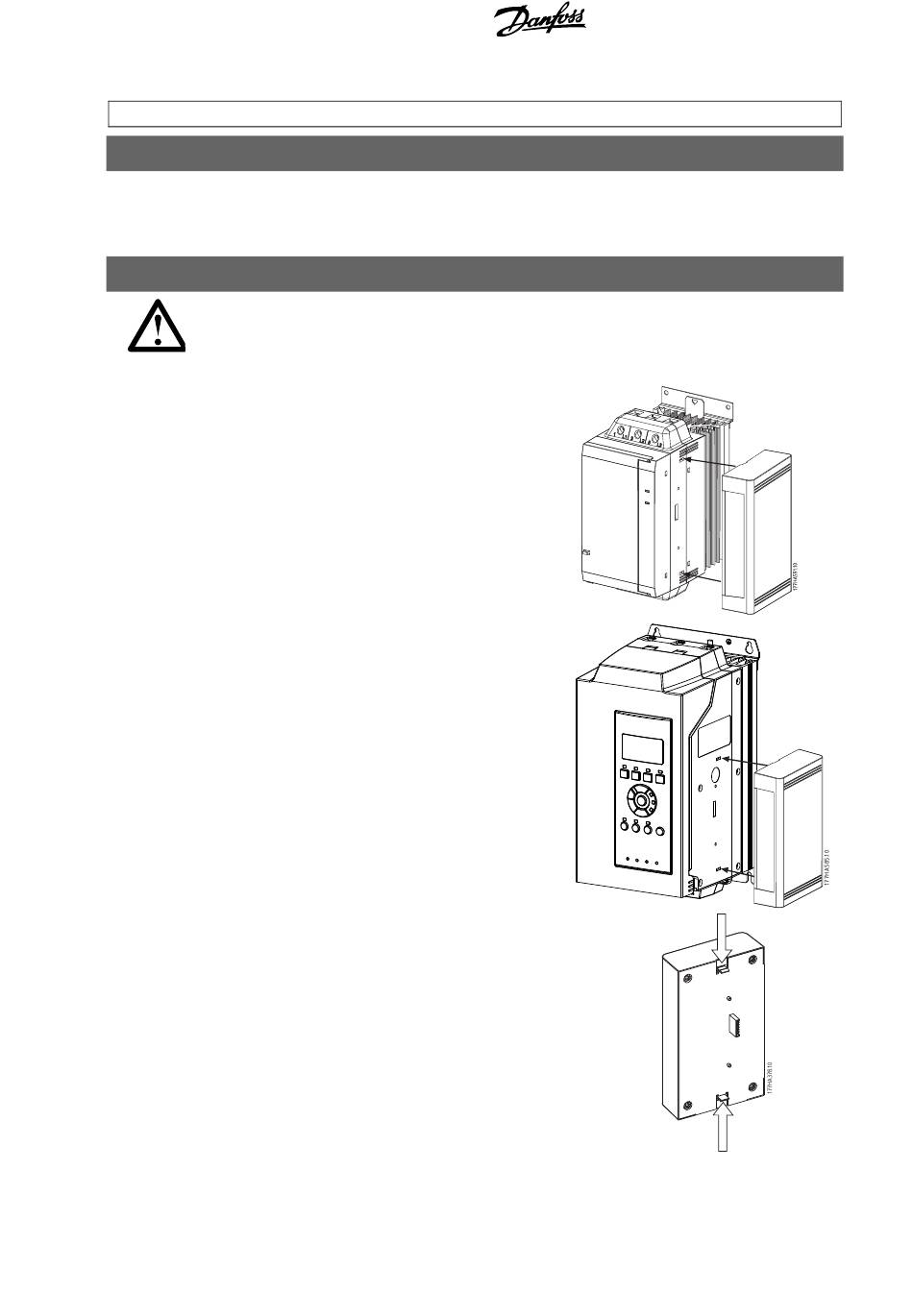

MCD 200
Plug the module onto the side of the soft starter.
MCD 500:
To plug the module onto the side of the soft starter, line
the interface up with the comms port slot.
Press the top retaining clip of the module into the soft
starter chassis first, then press in the bottom retaining
clip.
Remove the module using the following procedure:
1. Remove control power and mains supply from the soft
starter.
2. Take the module off-line.
3. Disconnect the USB cable from the module.
4. Push a small flat-bladed screwdriver into the slots at the top
and bottom of the module and depress the retaining clips.
5. Pull the module away from the soft starter.
