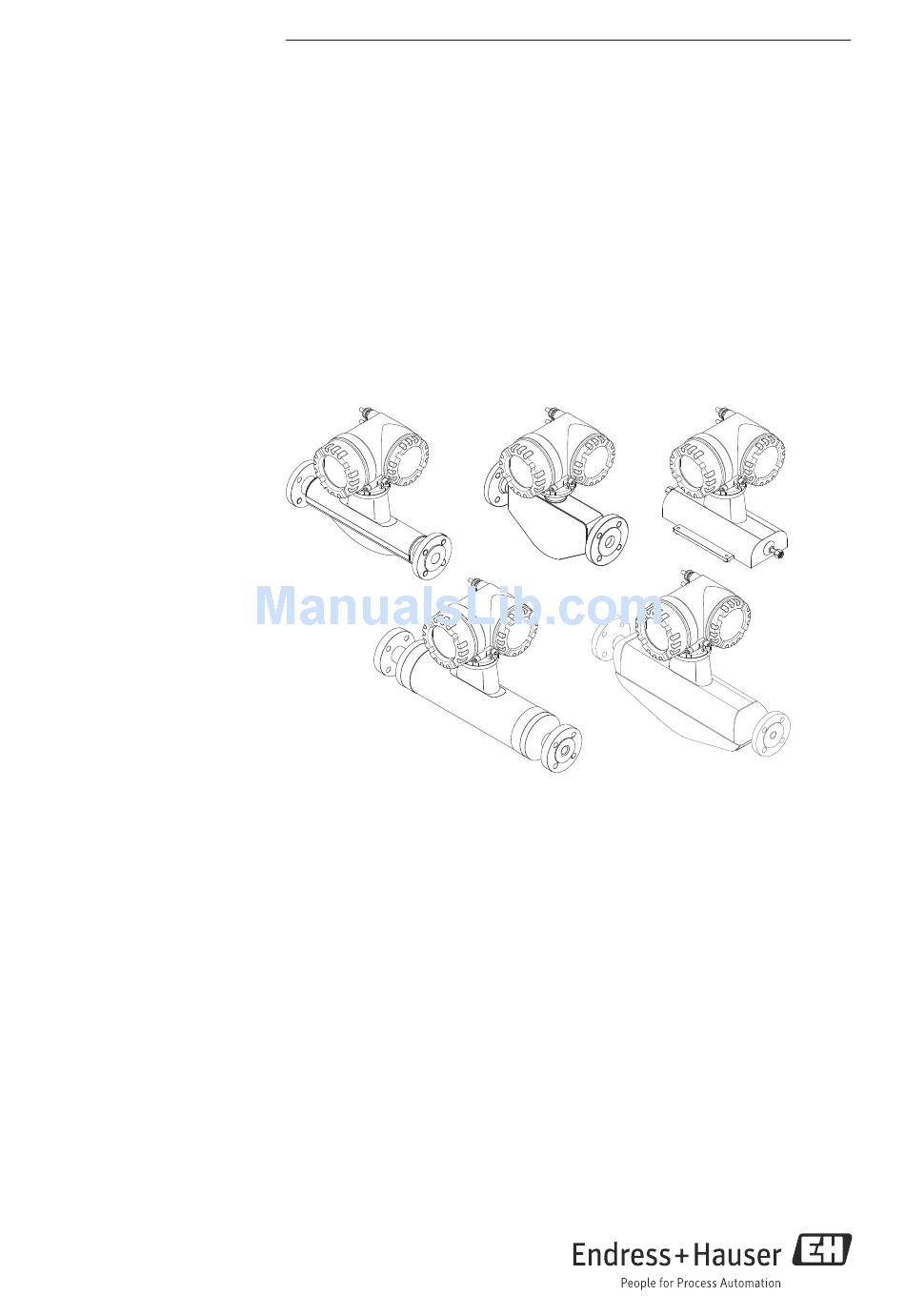

Endress+Hauser Proline Promass 80 Brief Operating Instructions

Coriolis flowmeter
Hide thumbs Also See for Proline Promass 80:
Table of Contents

Advertisement

Quick Links

Download this manual
KA00023D/06/EN/14.15
71230840
Products
Brief Operating Instructions
Proline Promass 80
Coriolis flowmeter
These Brief Operating Instructions are not intended to replace
the Operating Instructions provided in the scope of supply.
Detailed information about the measuring device is provided in
the Operating Instructions and the additional documentation:
• On the CD-ROM supplied (is not included in the delivery for all
device versions).
• Available for all measuring device versions via:
– Internet:
www.endress.com/deviceviewer
– Smartphone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass 80

Summary of Contents for Endress+Hauser Proline Promass 80

  • Page 1 Detailed information about the measuring device is provided in the Operating Instructions and the additional documentation: • On the CD-ROM supplied (is not included in the delivery for all device versions). • Available for all measuring device versions via: – Internet: www.endress.com/deviceviewer – Smartphone/tablet: Endress+Hauser Operations App...
  • Page 2 Table of contents Proline Promass 80 Table of contents 1 Safety instructions ............. 3 1.1 Designated use .

  • Page 3: Safety Instructions

    • The technical staff must ensure that the measuring device has been correctly wired and grounded as per the wiring diagrams. • With regard to special fluids, including fluids used for cleaning, Endress+Hauser will be happy to assist in clarifying the corrosion-resistant properties of wetted materials. However, minor changes in temperature, concentration or in the degree of contamination in the process may result in variations in corrosion resistance.

  • Page 4: Safety Conventions

    The installation regulations, connection data and safety instructions provided in the Ex documentation must be observed. • Endress+Hauser will be happy to assist in clarifying any questions on approvals, their application and implementation.

  • Page 5: Installation

    Proline Promass 80 Installation Installation Transporting to the measuring point • Transport the measuring device to the measuring point in the original packaging. • The covers or caps fitted on the process connections prevent mechanical damage to the sensors during transport and storage. For this reason, do not remove the covers or caps until immediately before installation.
  • Page 6 Installation Proline Promass 80 The following mounting locations should be avoided: • At the highest point in a pipe (risk of air accumulating) • In an open down pipe directly upstream from a free pipe outlet. For ways of using the measuring device in down pipes, see the related Operating Instructions on the CD-ROM.
  • Page 7 Proline Promass 80 Installation Special installation instructions for Promass A " Caution! Risk of measuring pipe fracture if sensor installed incorrectly! The sensor may not be installed in a pipe as a freely suspended sensor: • Using the base plate, mount the sensor directly on the floor, the wall or the ceiling.
  • Page 8 Installation Proline Promass 80 2.2.6 Inlet and outlet runs No inlet and outlet runs are required. 2.2.7 Vibrations No measures are necessary. Endress+Hauser...

  • Page 9: Post-Installation

    Proline Promass 80 Installation Post-installation 2.3.1 Turning the transmitter housing Turning the aluminum field housing Aluminum field housing for non-Ex area £ 180° £ 180° A0007540 Aluminum field housing for Zone 1 or Class I Div. 1 Release the setscrew.
  • Page 10 Installation Proline Promass 80 2.3.2 Turning the onsite display Press in the side latches on the display module and remove the module from the cover plate of the electronics compartment. Turn the display to the desired position (max. 4 × 45° in 4 ×...
  • Page 11 Proline Promass 80 Installation 2.3.3 Installing the wall-mount housing " Caution! • Make sure that the ambient temperature does not exceed the permitted range. • Always install the wall-mount housing in such a way that the cable entries point downwards.

  • Page 12: Post-Installation Check

    Installation Proline Promass 80 Panel mounting +0.5 (+0.019) –0.5 (–0.019) 210 (8.27) +0.5 (+0.019) –0.5 (–0.019) 245 (9.65) mm (inch) ~110 (~4.33) A0007544 Post-installation check • Is the measuring device damaged (visual inspection)? • Does the measuring device correspond to the specifications at the measuring point? •...

  • Page 13: Wiring

    Proline Promass 80 Wiring Wiring Warning! Risk of electric shock! Components carry dangerous voltages. • Never mount or wire the measuring device while it is connected to the power supply. • Prior to connecting the power supply, connect the protective ground to the ground terminal on the housing.

  • Page 14: Connecting The Various Housing Types

    Wiring Proline Promass 80 Connecting the various housing types Wire the unit using the terminal assignment diagram inside the cover. 3.1.1 Compact version Transmitter connection: Connection diagram inside the connection compartment cover Power supply cable Signal cable or fieldbus cable...

  • Page 15: Degree Of Protection

    Proline Promass 80 Wiring Degree of protection The devices meet all the requirements for IP 67. After mounting in the field or service work, the following points have to be observed to ensure that IP 67 protection is retained: • Install the measuring device in such a way that the cable entries do not point upwards.

  • Page 16: Hardware Settings

    Hardware settings Proline Promass 80 Hardware settings This section only deals with the hardware settings needed for commissioning. All other settings (e.g. output configuration, write protection, etc.) are described in the associated Operating Instructions on the CD-ROM. Note! No hardware settings are needed for measuring devices with HART-type communication.
  • Page 17 Proline Promass 80 Hardware settings PROFIBUS Device address range: 0 to 126 Factory setting: 126 Miniature switches for the device address OFF ON OFF ON (example shown: 1+16+32 = device address 49) Miniature switches for the address mode (method of addressing): –...

  • Page 18: Commissioning

    Commissioning Proline Promass 80 Commissioning Switching on the measuring device On completion of the installation (successful post-installation check), wiring (successful post-connection check) and after making the necessary hardware settings, where applicable, the permitted power supply (see nameplate) can be switched on for the measuring device.

  • Page 19: Operation

    Proline Promass 80 Commissioning Operation 5.2.1 Display elements Display lines/fields Main line for primary measured values Additional line for additional measured variables/status variables +48.25 xx/yy Current measured values Engineering units/time units +3702.6 x A0007557 5.2.2 Operating elements Operating keys (–) Minus key for entering, selecting...

  • Page 20: Navigating Within The Function Matrix

    Commissioning Proline Promass 80 Navigating within the function matrix > 3 s – – – – A0007562 → Enter the function matrix (starting with measured value display) → Select the group (e.g. OPERATION) → Confirm selection → Select function (e.g. LANGUAGE) →...

  • Page 21: Calling The Commissioning Quick Setup

    Proline Promass 80 Commissioning Calling the Commissioning Quick Setup All the functions needed for commissioning are called up automatically with the Quick Setup. The functions can be changed and adapted to the process in question. → Enter the function matrix (starting with measured value display) →...

  • Page 22: Software Settings

    Commissioning Proline Promass 80 Software settings 5.5.1 Device address Has to be set for measuring devices with the following communication methods: • PROFIBUS PA Device address range: 0 to 126, factory setting 126 The device address can be configured via: •...

  • Page 23: Troubleshooting

    Proline Promass 80 Commissioning Troubleshooting The error messages that can occur most frequently when a measuring device is commissioned are described here. A complete description of all the error messages → Operating Instructions on the CD-ROM. General Note! The output signals (e.g. pulse, frequency) of the measuring device must correspond to the higher-order controller.
  • Page 24 Commissioning Proline Promass 80 PROFIBUS Device status message PROFIBUS measured value Extended Cause/remedy (onsite display) status diagnostic message in PROFIBUS master System error mess. (S)/ • Quality Code (HEX), Flow is out of See HART table … notice message (!)
  • Page 25 Proline Promass 80 Commissioning Endress+Hauser...
  • Page 26 Commissioning Proline Promass 80 Endress+Hauser...
  • Page 27 Proline Promass 80 Commissioning Endress+Hauser...
  • Page 28 www.addresses.endress.com...
