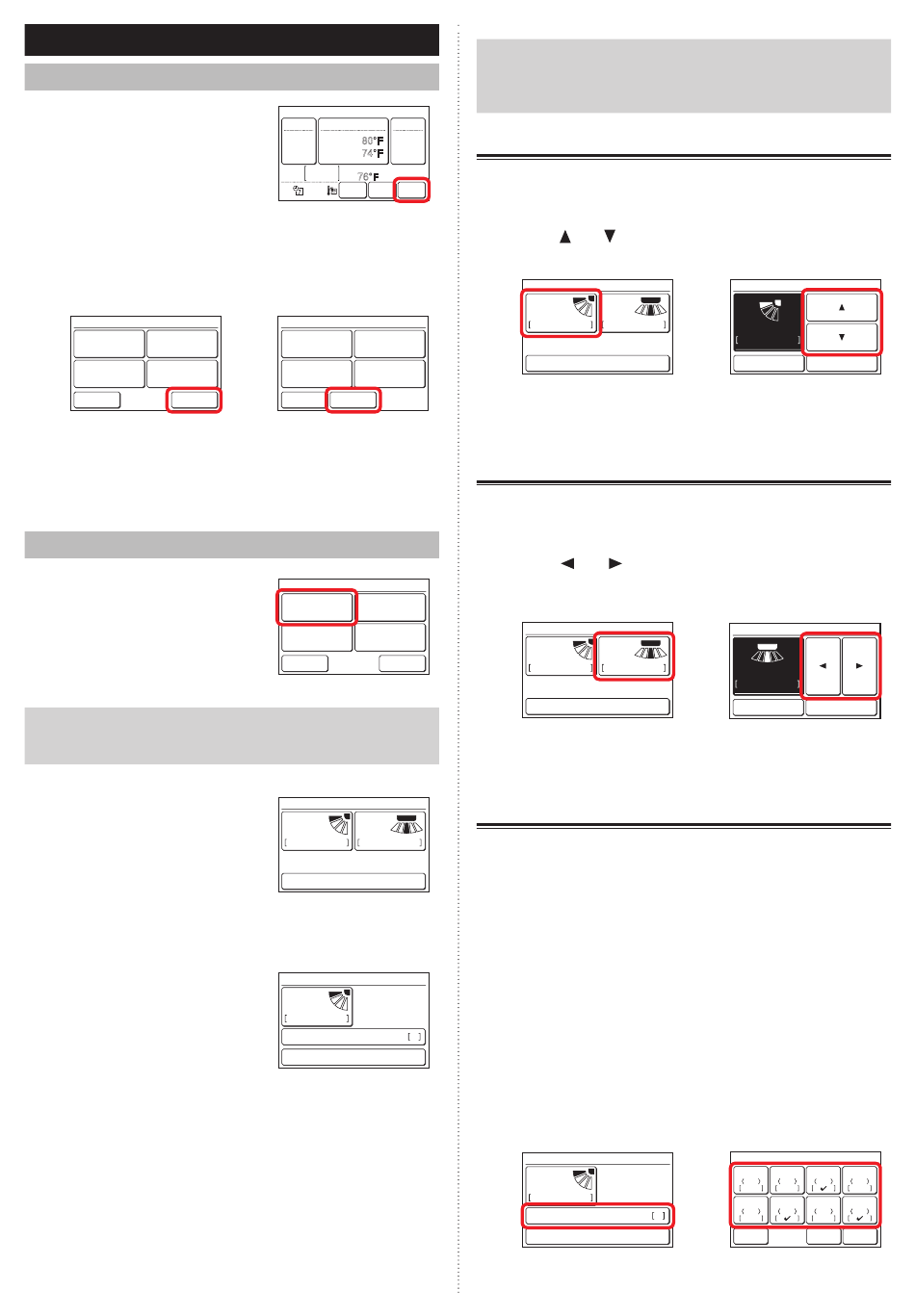

3 SETTING

3-1 Select the Setting Items

(1) Touch the [Menu] on the moni-
tor mode screen.
(2) "Main Menu" screen is displayed.
The screen has 2 pages which are switched by touching
the [Next Page] or [Previous Page].
(Items that indoor unit does not support are not dis-
played.)
Main Manu
Air Flow Direction
Auto Off Timer
Setting
Setting
Weekly Timer
Special Setting
Setting
Monitor
When the item to be set is touched, each setting screen
is displayed. Refer to the description of each item for
details. When each setting is complete or canceled,
the display returns to this screen. When [Monitor] is
touched, the display returns to the monitor mode screen.

3-2 Air Flow Direction Setting

(1) Touch the [Air Flow Direction
Setting] on the "Main Menu"
screen.
Note
For the indoor units without air flow direction adjustment
function, [Air Flow Direction Setting] is not displayed.
(2) "Air Flow Direction Setting"
screen is displayed. When the
[VT Setting] or [HZ Setting] is
touched, each setting screen
is displayed.
When the indoor unit does not have a horizontal air flow
direction adjustment function, [HZ Setting] is not dis-
played and the air flow direction cannot be set.
When this remote controller is
connected to the cassette type
indoor unit with individual air
flow control function, [Individu-
al VT Hold] is displayed.
For this operation, refer to "3-2-3 Individual VT Hold".
When the [OK] or [Cancel] is touched at each setting
screen, the display returns to this screen. When [Back]
is touched, the display returns to the "Main Menu"
screen.
En-9
Mode
Set Temp.
Cool
Custom
Auto
Heat
Room Temp.
Cool
84°F
Away
76°F
Heat
68°F
Vacation
Main Menu
Page 1/ 2
Summer Time
Setting
Initial Setting
Next
Previous
Monitor
Page
Page
Main Manu
Air Flow Direction
Setting
Weekly Timer
Setting
Monitor
Air Flow Direction Setting
VT
HZ
Setting
Setting
1
Back
Air Flow Direction Setting
VT
Setting
1

Individual VT Hold

Back
Note
When using this unit together with a wireless remote
controller, the air flow direction of the indoor unit may not
match the direction indicated on this unit.
Fri 10:00AM
Fan

3-2-1 VT Air Flow Direction

80°F
Auto
74°F
(1) Touch the [VT Setting] on the "Air Flow Direction Set-
Occupied
Status
Menu
ting" screen.
(2) "VT Air Flow Direction Setting" screen is displayed.
Touch [ ] or [ ] and set the air flow direction or "Swing".
(1)
Air Flow Direction Setting
VT
Setting
Page 2/ 2
Preference
Maintenance
(3) When the [OK] is touched after setting, the data is
transmitted to the indoor unit and the display returns to
the "Air Flow Direction Setting" screen.

3-2-2 HZ Air Flow Direction

(1) Touch the [HZ Setting] on the "Air Flow Direction Set-
ting" screen.
(2) "HZ Air Flow Direction Setting" screen is displayed.
Touch [
"Swing".
Page 1/ 2
(1)
Auto Off Timer
Setting
Air Flow Direction Setting
Special Setting
VT
Setting
Next
Page
(3) When the [OK] is touched, after the data is transmitted
to the indoor unit, the display returns to the "Air Flow
Direction Setting" screen.
3-2-3 Individual VT Hold
3
"Individual VT Hold" can be used only with cassette type in-
door unit which supports this function. The air flow direction
can be set for each outlet of single or multiple indoor units
connected to this remote controller.
(1) Touch the [Individual VT Hold] on the "Air Flow Direction
Setting" screen.
(2) When multiple indoor units are connected to this remote
controller, the indoor unit selection screen is displayed.
When only one indoor unit is connected, the screen of
(3) is displayed. When the screen (2) has 2 pages, they
can be switched by touching the [Next Page] or [Previ-
ous Page]. When this remote controller is connected to
multiple indoor units, the address (XX-XX) is displayed
for each indoor unit. Touch the indoor unit to be set. [✓ ]
is displayed at the set indoor units.
(1)
Air Flow Direction Setting
VT
Setting
Individual VT Hold
(2)
HZ
Setting
1
3
Back
] or [
] and set the air flow direction or
(2)
HZ
Setting
1
3
Back
(2)
1
Back
VT Air Flow Direction Setting
1
4
1
Cancel
OK
HZ Air Flow Direction Setting
1
5
3
Cancel
OK
Individual VT Hold
Page 1/ 2
Unit 1
Unit 2
Unit 3
Unit 4
01-01
01-02
01-03
01-04
Unit 5
Unit 6
Unit 7
Unit 8
01-05
01-06
01-07
01-08
Next
Back
Reset
Page
