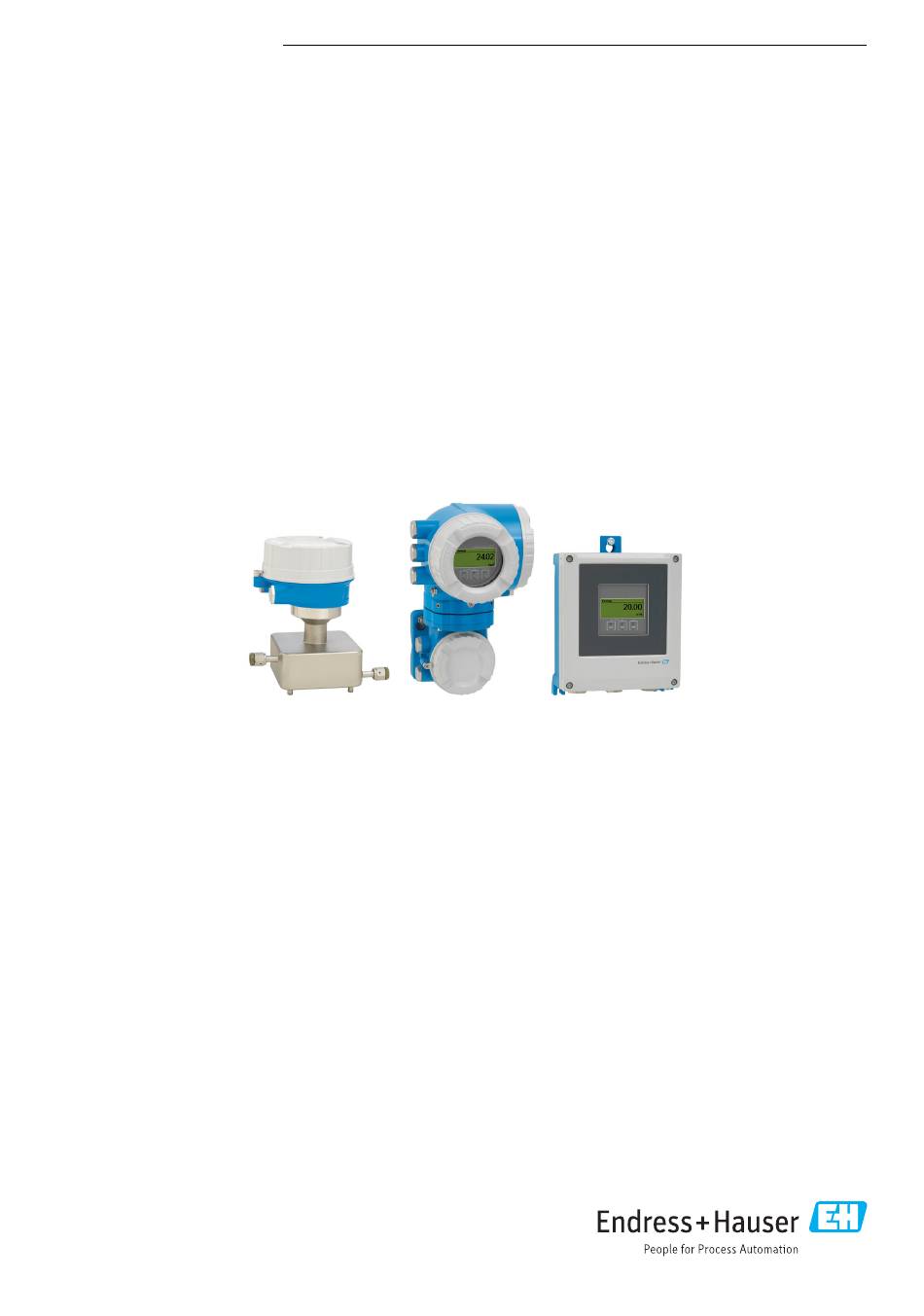

Endress+Hauser Proline Cubemass C 500 Technical Information

Coriolis flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TI01281D/06/EN/03.18
71402594
2018-06-01
Ultra‐compact sensor for smallest quantities, with
a transmitter remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Measuring accurately smallest quantities of liquids and
gases
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")
• Process pressure up to 400 bar (5 800 psi)
• Medium temperature up to +205 °C (+401 °F)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru
Products
Technical Information
Proline Cubemass C 500
Coriolis flowmeter
Solutions
Your benefits
• Reduced Installation cost – compact single-tube design
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Cubemass C 500

Summary of Contents for Endress+Hauser Proline Cubemass C 500

  • Page 1 Products Solutions Services TI01281D/06/EN/03.18 71402594 2018-06-01 Technical Information Proline Cubemass C 500 Coriolis flowmeter Ultra‐compact sensor for smallest quantities, with a transmitter remote version with up to 4 I/Os Application Your benefits • Measuring principle operates independently of physical fluid •...

  • Page 2: Table Of Contents

    Proline Cubemass C 500 Table of contents About this document ......Storage temperature ......
  • Page 3 Proline Cubemass C 500 Application packages ..... . 102 Diagnostics functions ......103 Heartbeat Technology .

  • Page 4: About This Document

    Proline Cubemass C 500 About this document Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Cubemass C 500 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design The measuring principle is based on the controlled generation of Coriolis forces.
  • Page 6 Proline Cubemass C 500 Density measurement The measuring tube is continuously excited at its resonance frequency. A change in the mass and thus the density of the oscillating system (comprising measuring tube and fluid) results in a corresponding, automatic adjustment in the oscillation frequency. Resonance frequency is thus a function of medium density.

  • Page 7: Measuring System

    Proline Cubemass C 500 Measuring system The measuring system consists of a transmitter and a sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected by connecting cables. Transmitter Two versions of the transmitter are available.
  • Page 8 Proline Cubemass C 500 Sensor connection housing Different versions of the connection housing are available. Order code for "Sensor connection housing", option A, "Aluminum, coated": Aluminum, AlSi10Mg, coated  This device version is only available in conjunction with the Proline 500 –...

  • Page 9: Equipment Architecture

    Proline Cubemass C 500 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Hazardous area: Zone 2; Class I, Division 2 Hazardous area: Zone 1;...
  • Page 10 Proline Cubemass C 500 Protecting access via hardware write protection Write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on the motherboard).
  • Page 11 Proline Cubemass C 500 The device can communicate with OPC UA clients using the "OPC UA Server" application package. The OPC UA server integrated in the device can be accessed via the WLAN access point using the WLAN interface - which can be ordered as an optional extra - or the service interface (CDI- RJ45) via Ethernet network.

  • Page 12: Input

    Proline Cubemass C 500 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring ranges for liquids Measuring range full scale values ...

  • Page 13: Input Signal

    • Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) • Medium temperature to increase accuracy (e.g. iTEMP) •...
  • Page 14 Proline Cubemass C 500 Input signal level • Low signal: DC –3 to +5 V • High signal: DC 12 to 30 V Assignable functions • Off • Reset the individual totalizers separately • Reset all totalizers • Flow override Endress+Hauser Заказывайте...

  • Page 15: Output

    Proline Cubemass C 500 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 4. The table must be read vertically (↓).

  • Page 16: Output Signal

    Proline Cubemass C 500 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive)  Ex-i, passive Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 17 Proline Cubemass C 500 Current consumption 10 mA Permitted supply voltage 9 to 32 V Bus connection With integrated reverse polarity protection Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches...
  • Page 18 Proline Cubemass C 500 Open-circuit voltage DC 28.8 V (active) Pulse width Adjustable: 0.05 to 2 000 ms Maximum pulse rate 10 000 Impulse/s Pulse value Adjustable Assignable measured • Mass flow variables • Volume flow • Corrected volume flow...
  • Page 19 Proline Cubemass C 500 Double pulse output Function Double pulse Version Open collector Can be set to: • Active • Passive Maximum input values DC 30 V, 250 mA (passive) Open-circuit voltage DC 28.8 V (active) Voltage drop For 22.5 mA: ≤ DC 2 V...

  • Page 20: Signal On Alarm

    Proline Cubemass C 500 The technical values correspond to those of the inputs and outputs described in this section. Signal on alarm Depending on the interface, failure information is displayed as follows: HART current output Device diagnostics Device condition can be read out via HART Command 48...
  • Page 21 Proline Cubemass C 500 0 to 20 mA Failure mode Choose from: • Maximum alarm: 22 mA • Freely definable value between: 0 to 20.5 mA Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses...

  • Page 22: Ex Connection Data

    Proline Cubemass C 500 Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred •...

  • Page 23: Galvanic Isolation

    Proline Cubemass C 500 Intrinsically safe values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output = 30 V 4 to 20 mA HART Ex i = 100 mA = 1.25 W...
  • Page 24 Proline Cubemass C 500 PROFIBUS PA Manufacturer ID 0x11 Ident number 0x156D Profile version 3.02 Device description files (GSD, Information and files under: DTM, DD) • www.endress.com • www.profibus.org Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate •...
  • Page 25 Proline Cubemass C 500 Configuration of the device • DIP switches on the I/O electronics module address • Via operating tools (e.g. FieldCare) System integration Information regarding system integration: Operating Instructions →  107. • Cyclic data transmission • Block model •...
  • Page 26 Proline Cubemass C 500 Media Redundancy Protocol (MRP) Device profile Application interface identifier 0xF600 Generic device Manufacturer ID 0x11 Device type ID 0x843B Device description files (GSD, Information and files under: DTM, DD) • www.endress.com On the product page for the device: Documents/Software → Device drivers •...
  • Page 27 Proline Cubemass C 500 Node address Factory setting: 247 (0xF7) Supported functions The following methods are supported: • Restart • ENP Restart • Diagnostic • Set to OOS • Set to AUTO • Read trend data • Read event logbook...

  • Page 28: Power Supply

    Proline Cubemass C 500 Supported baud rate • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transfer mode •...

  • Page 29: Device Plugs Available

    Proline Cubemass C 500 PROFIBUS DP Supply voltage Input/output Input/output Input/output Input/output 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) 20 (+) 21 (–) The terminal assignment depends on the specific device version ordered →  15.

  • Page 30: Pin Assignment, Device Plug

    Proline Cubemass C 500 Order code for "Input; output 1", option GA "PROFIBUS PA" Order code for Cable entry/connection →  34 "Electrical connection" L, N, P, U Connector M12 × 1 – Order code for "Input; output 1", option RA "PROFINET"...

  • Page 31: Supply Voltage

    Proline Cubemass C 500 PROFIBUS PA – Not assigned PROFINET Assignment TD + RD + TD – RD – Coding Plug/socket A0032047 Socket  Recommended plug: • Binder, series 763, part no. 99 3729 810 04 • Phoenix, part no. 1543223 SACC-M12MSD-4Q •...

  • Page 32: Power Consumption

    Proline Cubemass C 500 Order code for terminal voltage Frequency range "Power supply" DC24 V ±20% – Option I AC100 to 240 V –15…+10% 50/60 Hz Power consumption Transmitter Max. 10 W (active power) Current consumption Transmitter • Max. 400 mA (24 V) •...

  • Page 33: Electrical Connection

    Proline Cubemass C 500 Electrical connection Connection of connecting cable: Proline 500 – digital – 61 62 63 64 61 62 63 64 – A0028198 Cable entry for cable on transmitter housing Protective ground (PE) Connecting cable ISEM communication Grounding via ground connection; on device plug versions grounding is through the plug itself...
  • Page 34 Proline Cubemass C 500 Connection of the connecting cable: Proline 500 The connecting cable is connected via terminals. 10 9 A0028197 Protective ground (PE) Cable entry for connecting cable on transmitter connection housing Connecting cable Cable entry for connecting cable on sensor connection housing...
  • Page 35 Proline Cubemass C 500 Connecting the Proline 500 transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal for network connection (DHCP client) via service interface (CDI-RJ45); optional: terminal connection for external WLAN antenna...
  • Page 36 Proline Cubemass C 500 Transmitter: Proline 500 A0026781 Terminal connection for supply voltage Terminal connection for signal transmission: PROFINET or EtherNet/IP (RJ45 connector) Terminal connection to service interface (CDI-RJ45) Protective ground (PE) If the device has additional inputs/outputs, these are routed in parallel via the cable entry for connection to the service interface (CDI-RJ45).
  • Page 37 Proline Cubemass C 500 HART input 4...20 mA A0028763  4 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 38 Proline Cubemass C 500 PROFIBUS DP A0028765  6 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 39 Proline Cubemass C 500 EtherNet/IP: DLR (Device Level Ring) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  44 Connecting cable between the two transmitters Transmitter PROFINET A0016805  8 Connection example for PROFINET Control system (e.g. PLC)
  • Page 40 Proline Cubemass C 500 FOUNDATION Fieldbus A0028768  9 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 41 Proline Cubemass C 500 Current output 4-20 mA 4...20 mA A0028758  11 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load Transmitter 4...20 mA A0028759  12 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g.
  • Page 42 Proline Cubemass C 500 Switch output A0028760  14 Connection example for switch output (passive) Automation system with switch input (e.g. PLC) Power supply Transmitter: Observe input values →  17 Double pulse output A0029280  15 Connection example for double pulse output (active) Automation system with double pulse input (e.g.

  • Page 43: Potential Equalization

    Proline Cubemass C 500 Relay output A0028760  17 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: Observe input values →  19 Current input A0028915  18 Connection example for 4 to 20 mA current input...

  • Page 44: Terminals

    Proline Cubemass C 500 Please consider the following to ensure correct measurement: • Same electrical potential for the fluid and sensor • Company-internal grounding concepts terminals Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG).
  • Page 45 Proline Cubemass C 500 Signal damping Max. 9 dB over the entire length of the cable cross-section Shield Copper braided shielding or braided shielding with foil shield. When grounding the cable shield, observe the grounding concept of the plant. For further information on planning and installing PROFIBUS networks see: •...
  • Page 46 Proline Cubemass C 500 Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient. Choice of connecting cable between the transmitter and sensor Depends on the type of transmitter and the installation zones...
  • Page 47 Proline Cubemass C 500 Cross-section Cable length [max.] 0.34 mm (AWG 22) 80 m (270 ft) 0.50 mm (AWG 20) 120 m (400 ft) 0.75 mm (AWG 18) 180 m (600 ft) 1.00 mm (AWG 17) 240 m (800 ft) 1.50 mm...
  • Page 48 Proline Cubemass C 500 Cross-section Cable length [max.] Termination 2 x 2 x 0.50 mm 50 m (165 ft) 2 x 2 x 0.50 mm (AWG 20) (AWG 20) BN WT YE GN • +, – = 0.5 mm • A, B = 0.5 mm 3 x 2 x 0.50 mm...

  • Page 49: Performance Characteristics

    Proline Cubemass C 500 C: Connecting cable between sensor and transmitter: Proline 500 Standard cable 6 × 0.38 mm PVC cable with common shield and individually shielded cores Conductor resistance ≤50 Ω/km (0.015 Ω/ft) Capacitance: core/shield ≤420 pF/m (128 pF/ft) Cable length (max.)

  • Page 50: Repeatability

    Proline Cubemass C 500 SI units 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 0.04 22.5 1 000 US units 1:10 1:20 1:50 1:100 1:500 [inch] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] ¹⁄₂₄ 0.735 0.074 0.037 0.015...

  • Page 51: Influence Of Ambient Temperature

    Proline Cubemass C 500 Influence of ambient Current output temperature Temperature coefficient Max. 1 μA/°C Pulse/frequency output Temperature coefficient No additional effect. Included in accuracy. Influence of medium Mass flow and volume flow temperature o.f.s. = of full scale value When there is a difference between the temperature for zero point adjustment and the process temperature, the additional measured error of the sensor is typically ±0.0002 % o.f.s./°C (±0.0001 %...

  • Page 52: Design Fundamentals

    Proline Cubemass C 500 Design fundamentals o.r. = of reading, o.f.s. = of full scale value BaseAccu = base accuracy in % o.r., BaseRepeat = base repeatability in % o.r. MeasValue = measured value; ZeroPoint = zero point stability Calculation of the maximum measured error as a function of the flow rate Flow rate Maximum measured error in % o.r.

  • Page 53: Orientation

    Proline Cubemass C 500 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. • Directly upstream of a free pipe outlet in a down pipe.

  • Page 54: Inlet And Outlet Runs

    Proline Cubemass C 500 Orientation Recommendation Horizontal orientation, transmitter at bottom A0015590 Horizontal orientation, transmitter at side A0015592 Applications with low process temperatures may decrease the ambient temperature. To maintain the minimum ambient temperature for the transmitter, this orientation is recommended.

  • Page 55: Mounting The Transmitter Housing

    Proline Cubemass C 500 Mounting the transmitter Proline 500 – digital transmitter housing Post mounting ø 20…70 TX 25 ø ( 0.79…2.75) SW 10 A0029051  21 Engineering unit mm (in) Wall mounting 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054 ...

  • Page 56: Special Mounting Instructions

    Proline Cubemass C 500 Proline 500 transmitter Post mounting WARNING Order code for "Transmitter housing", option L "Cast, stainless": cast transmitters are very heavy. They are unstable if they are not mounted on a secure, fixed post. ‣ Only mount the transmitter on a secure, fixed post on a stable surface.
  • Page 57 Proline Cubemass C 500 WARNING Danger from medium escaping! Medium escaping under pressure can cause injury or material damage. ‣ Take precautions to prevent danger to persons and damage if the rupture disk is actuated. ‣ Observe information on the rupture disk sticker.
  • Page 58 Proline Cubemass C 500 A0030286 Horizontal Device standing on a solid support base A0030287 Mounting plate The universal mounting plate can be used to affix or place the unit on a flat surface (order code for "Accessories", option PA). 8 mm A0019768 ...

  • Page 59: Environment

    Dependency of ambient temperature on medium temperature→  60 ‣ If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. You can order a weather protection cover from Endress+Hauser. →  104. Storage temperature –50 to +80 °C (–58 to +176 °F) Climate class...

  • Page 60: Degree Of Protection

    Proline Cubemass C 500 Degree of protection Transmitter • As standard: IP66/67, type 4X enclosure • When housing is open: IP20, type 1 enclosure • Display module: IP20, type 1 enclosure Sensor • As standard: IP66/67, type 4X enclosure • With the order code for "Sensor options", option CM: IP69 can also be ordered...

  • Page 61: Density

    Proline Cubemass C 500 Dependency of ambient temperature on medium temperature A0031121  28 Exemplary representation, values in the table below. Ambient temperature Medium temperature Maximum permitted medium temperature T at T = 60 °C (140 °F); higher medium temperatures T...

  • Page 62: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ || Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 [psi] [bar] PN 40 [°C] [°F] A0027777-EN  29 With flange material: 1.4539 (904L), Alloy C22; lap joint flanges (not wetted) 1.4404 (316/316L) Flange connection according to ASME B16.5 Order code for "Mounting kit", option PF, PG...

  • Page 63: Sensor Housing

    Proline Cubemass C 500 [psi] [bar] 6200 5800 DN 1 5400 5000 4600 4200 3800 3400 3000 2600 2200 ≥ DN 2 1800 200 [°C] 40 80 120 160 200 240 280 320 360 400 [°F] -40 0 A0027774-EN  32 4-VCO-4 coupling: 1.4539 (904L);...

  • Page 64: Rupture Disk

    Proline Cubemass C 500 corresponding type test declaration can be ordered with the device (order code for "Additional approval", option LN "Sensor housing burst pressure, type test"). Sensor housing nominal Sensor housing burst pressure pressure (designed with a safety factor ≥...

  • Page 65: Heating

    Proline Cubemass C 500 NOTICE Electronics overheating on account of thermal insulation! ‣ Recommended orientation: horizontal orientation, sensor connection housing pointing downwards. ‣ Do not insulate the sensor connection housing. ‣ Maximum permissible temperature at the lower end of the sensor connection housing: 80 °C (176 °F)

  • Page 66: Mechanical Construction

    Proline Cubemass C 500 Mechanical construction Dimensions in SI units Housing of Proline 500 – digital transmitter Non-hazardous area or hazardous area: Zone 2; Class I, Division 2 A0033789 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option A "Sensor"...

  • Page 67: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Order code for "Transmitter housing", option L "Cast, stainless" and order code for "Integrated ISEM electronics", option B "Transmitter" [mm] [mm] [mm] [mm] [mm] [mm] [mm] Sensor connection housing A0030029 [mm] [mm] [mm] [mm] [mm] [mm]...

  • Page 68: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Order code for "Sensor connection housing", option C "Ultra-compact hygienic, stainless" [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1 to 6 Depending on the cable gland used: values up to + 30 in Order code for "Sensor connection housing", option L "Cast, stainless"...

  • Page 69: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Cable glands VCO coupling A0015624 Length tolerance for dimension L in mm: +1.5 / –2.0 4-VCO-4 1.4539 (904L): order code for "Process connection", option HAW [mm] [in] [mm] [mm] SW ¹¹⁄₁₆ 12.5 SW ¹¹⁄₁₆ 12.5 SW ¹¹⁄₁₆...

  • Page 70: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Adapter Adapter, DN 15 flange to VCO A0019725 Length tolerance for dimension L in mm: +1.5 / –2.0 Flange according to EN 1092-1 (DIN 2501): PN 40 1.4539 (904L): order code for "Accessories", option PE [mm]...

  • Page 71: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Flange JIS B2220: 10K 1.4539 (904L): order code for "Accessories", option PH [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1 to 6 4 × Ø15 15.0 DN 1 to 4 with 4-VCO-4, DN 6 with 8-VCO-4 Lap joint flanges (not wetted) made of stainless steel 1.4404 (316/316L)

  • Page 72: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Adapter, NPTF to VCO A0019724 Length tolerance for dimension L in mm: +1.5 / –2.0 ¹⁄₄" NPTF to 4-VCO-4 1.4539 (904L): order code for "Accessories", option PC [mm] [in] [in] [mm] 1 to 4 AF ¾...

  • Page 73: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Protective cover 213 (8.4) 203 (8.0) A0029552  34 Weather protection cover for Proline 500 – digital 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  35 Weather protection cover for Proline 500 External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.

  • Page 74: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor. A0033606  37 Engineering unit mm (in)

  • Page 75: Dimensions In Us Units

    Proline Cubemass C 500 70 (2.8) A0033597  39 Engineering unit mm (in) Dimensions in US units Housing of Proline 500 – digital transmitter Non-hazardous area or hazardous area: Zone 2; Class I, Division 2 A0033789 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option A "Sensor"...

  • Page 76: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 A0033788 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option B "Transmitter" [in] [in] [in] [in] [in] [in] [in] 7.40 3.35 4.06 12.5 8.54 5.12 9.41 Order code for "Transmitter housing", option L "Cast, stainless" and order code for "Integrated ISEM electronics", option B "Transmitter"...

  • Page 77: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Order code for "Sensor connection housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] ¹⁄₂₄ to ¹⁄₄ 5.83 3.70 2.13 6.38 8.43 5.35 Depending on the cable gland used: values up to +1.18 in Order code for "Sensor connection housing", option B "Stainless, hygienic"...

  • Page 78: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Cable glands VCO coupling A0015624 Length tolerance for dimension L in inch: +0.06 / –0.08 4-VCO-4 1.4539 (904L): order code for "Process connection", option HAW [mm] [in] [in] [in] ¹⁄₂₄ SW ¹¹⁄₁₆ 0.49 6.89 ¹⁄₁₂ SW ¹¹⁄₁₆...

  • Page 79: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Adapter Adapter, DN 15 flange to VCO A0019725 Length tolerance for dimension L in inch: +0.06 / –0.08 Flange according to ASME B16.5: Class 150 1.4539 (904L): order code for "Accessories", option PF [in] [in] [in]...

  • Page 80: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Adapter, NPTF to VCO A0019724 Length tolerance for dimension L in inch: +0.06 / –0.08 ¹⁄₄" NPTF to 4-VCO-4 1.4539 (904L): order code for "Accessories", option PC [mm] [in] [in] [in] ¹⁄₂₄ to ¹⁄₈ AF ¾...

  • Page 81: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Protective cover 213 (8.4) 203 (8.0) A0029552  40 Weather protection cover for Proline 500 – digital 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  41 Weather protection cover for Proline 500 External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.

  • Page 82: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor. A0033606  43 Engineering unit mm (in)

  • Page 83: Weight

    Proline Cubemass C 500 70 (2.8) A0033597  45 Engineering unit mm (in) All values (weight exclusive of packaging material) refer to devices with VCO couplings. Weight Transmitter • Proline 500 – digital polycarbonate: 1.4 kg (3.1 lbs) • Proline 500 – digital aluminum: 2.4 kg (5.3 lbs) •...

  • Page 84: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Sensor connection housing Order code for "Sensor connection housing": • Option A "Aluminum coated": aluminum, AlSi10Mg, coated • Option B "Stainless": – Stainless steel 1.4301 (304) – Optional: Order code for "Sensor feature", option CC "Hygienic version, for maximum corrosion resistance": stainless steel, 1.4404 (316L)

  • Page 85: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Cable entries and adapters Material Adapter for device plug Stainless steel, 1.4404 (316L)  • Device plug for digital communication: Only available for certain device versions →  29. • Device plug for connecting cable: A device plug is always used for the device version, order code for "Sensor connection housing", option C (ultra-...

  • Page 86: Process Connections

    Proline Cubemass C 500 Accessories Protective cover Stainless steel, 1.4404 (316L) External WLAN antenna • Antenna: ASA plastic (acrylic ester-styrene-acrylonitrile) and nickel-plated brass • Adapter: Stainless steel and nickel-plated brass • Cable: Polyethylene • Plug: Nickel-plated brass • Angle bracket: Stainless steel Process connections •...

  • Page 87: Languages

    Proline Cubemass C 500 Languages Can be operated in the following languages: • Via local operation English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Bahasa (Indonesian), Vietnamese, Czech, Swedish • Via Web browser English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Bahasa (Indonesian), Vietnamese, Czech, Swedish •...

  • Page 88: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 A0028747  48 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for access to the integrated device Web server or computer with an operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...

  • Page 89: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 A0028837  50 Options for remote operation via FOUNDATION Fieldbus network Automation system Computer with FOUNDATION Fieldbus network card Industry network High Speed Ethernet FF-HSE network Segment coupler FF-HSE/FF-H1 FOUNDATION Fieldbus FF-H1 network Power supply FF-H1 network...

  • Page 90: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 A0028838  52 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network Segment coupler PROFIBUS DP/PA PROFIBUS PA network T-box Measuring device Via Modbus RS485 protocol This communication interface is available in device versions with a Modbus-RS485 output.

  • Page 91: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Star topology A0032078  54 Options for remote operation via EtherNet/IP network: star topology Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.

  • Page 92: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Star topology A0026545  56 Options for remote operation via PROFINET network: star topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...

  • Page 93: Service Interface

    Proline Cubemass C 500 Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device. An adapter for RJ45 and the M12 connector is optionally available: Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"...

  • Page 94: Network Integration

    Proline Cubemass C 500 A0034569 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with operating tool (e.g.

  • Page 95: Supported Operating Tools

    Proline Cubemass C 500 accessed any time from the control station. The measured values are processed separately via the inputs and outputs through the automation system. A0033618 Automation system, e.g. Simatic S7 (Siemens) Ethernet switch Edge Gateway Cloud Measuring device...

  • Page 96: Historom Data Management

    Proline Cubemass C 500 Supported operating Operating unit Interface Additional information tools FieldCare SFE500 Notebook, PC or tablet • CDI-RJ45 service →  106 with Microsoft Windows interface system • WLAN interface • Fieldbus protocol Device Xpert Field Xpert SFX...

  • Page 97: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Additional information on the data storage concept There are different types of data storage units in which device data are stored and used by the device: Device memory T-DAT S-DAT Available data • Event logbook such as diagnostic events for example •...

  • Page 98: Certificates And Approvals

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media...

  • Page 99: Заказывайте На Сайте: Www.tinnova.ru/Endress_Hauser/ Эл. Почта: Info@Tinnova.ru

    Proline Cubemass C 500 Currently, the following versions for use in hazardous areas are available: IS (Ex nA, Ex i) Transmitter Sensor Class I Division 2 Groups A - D Class I, II, III Division 1 Groups A-G NI (Ex nA)

  • Page 100: Pharmaceutical Compatibility

    Proline Cubemass C 500 Ex ec Category Type of protection Transmitter Sensor II3G Ex ec IIC T5…T4 Gc Ex ec IIC T5…T1 Gc Currently, the following versions for use in hazardous areas are available: IS (Ex i) and XP (Ex d)

  • Page 101: Hart Certification

    Proline Cubemass C 500 The following types of monitoring in safety equipment are possible: • Mass flow • Volume flow • Density Functional Safety Manual with information on the SIL device →  107 HART certification HART interface The measuring device is certified and registered by the FieldComm Group. The measuring system meets all the requirements of the following specifications: •...

  • Page 102: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 103: Diagnostics Functions

    Proline Cubemass C 500 Diagnostics functions Package Description Extended HistoROM Comprises extended functions concerning the event log and the activation of the measured value memory. Event log: Memory volume is extended from 20 message entries (standard version) to up to 100 entries.

  • Page 104: Accessories

    Proline Cubemass C 500 Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 105: Communication-Specific Accessories

    Proline Cubemass C 500 Connecting cable The connecting cable can be ordered directly with the measuring device (order code Proline 500 – digital for "Cable, sensor connection) or as an accessory (order number DK8012). Sensor – The following cable lengths are available: order code for "Cable, sensor connection"...

  • Page 106: Service-Specific Accessories

    Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.

  • Page 107: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation...

  • Page 108: Registered Trademarks

    Proline Cubemass C 500 Special Documentation Contents Documentation code Information on the Pressure Equipment Directive SD01614D Functional Safety Manual SD01728D Radio approvals for WLAN interface for A309/A310 display module SD01793D OPC-UA Server SD02042D This Special Documentation is only available for device versions with a HART output.

Table of Contents
