BA01058D/06/EN/02.13
71211168
Valid as of version
01.02.zz (Device firmware)
Products
Operating Instructions
Proline Promass I 100
Modbus RS485
Coriolis flowmeter
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass I 100

Summary of Contents for Endress+Hauser Proline Promass I 100

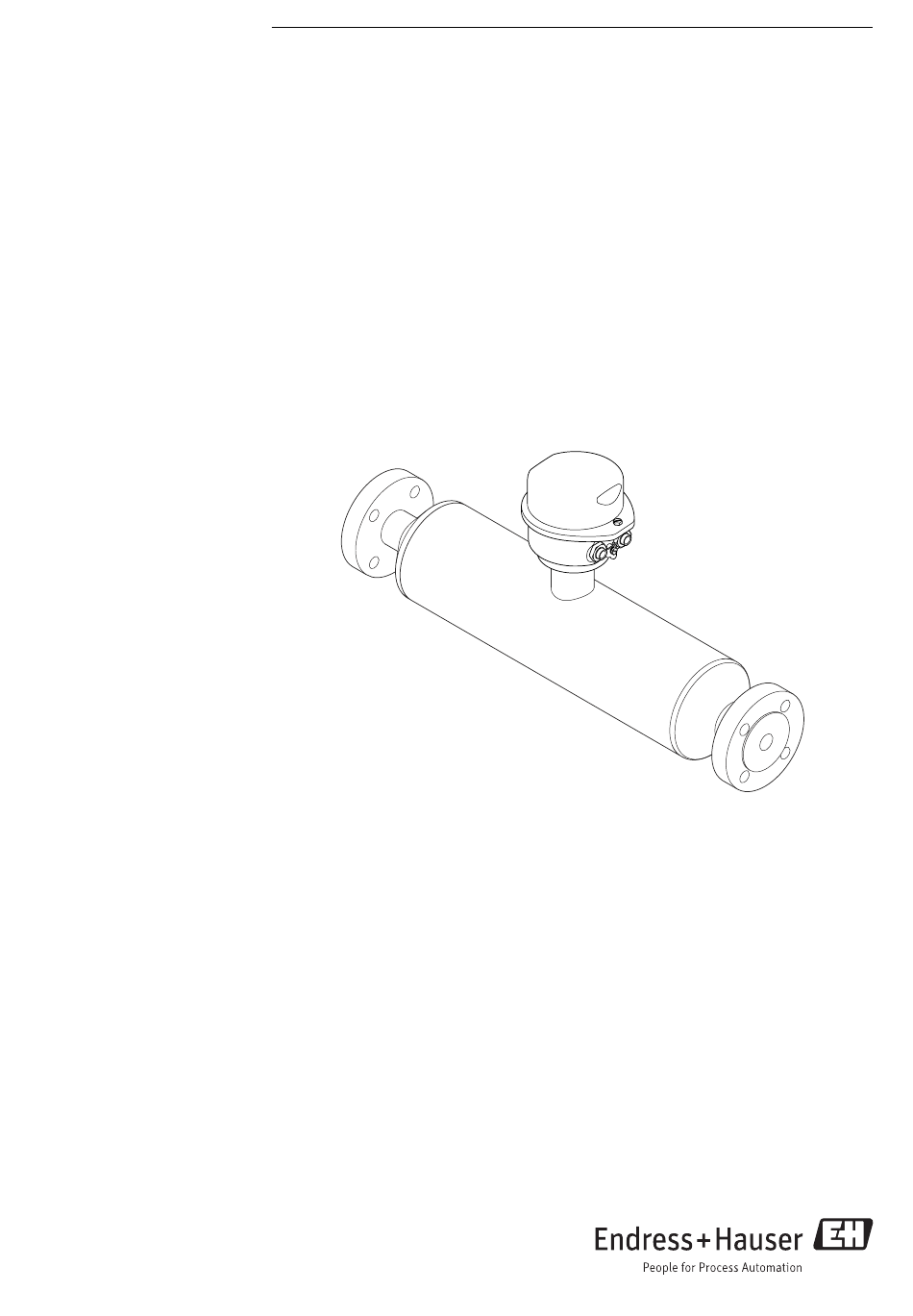

  • Page 1 Products Solutions Services BA01058D/06/EN/02.13 71211168 Valid as of version 01.02.zz (Device firmware) Operating Instructions Proline Promass I 100 Modbus RS485 Coriolis flowmeter...
  • Page 2 • The manufacturer reserves the right to modify technical data in line with technological developments without prior notice. Your Endress+Hauser sales center will supply you with current information and updates to this manual. Endress+Hauser...

  • Page 3: Table Of Contents

    Proline Promass I 100 Modbus RS485 Table of contents Table of contents 6.2.3 Mounting the measuring device ..22 Document information ....5 Post-installation check .
  • Page 4 10.4.3 Carrying out a sensor adjustment ..52 14.3 Endress+Hauser services ....72 10.4.4 Configuring the totalizer ..53 14.4 Return .

  • Page 5: Document Information

    Proline Promass I 100 Modbus RS485 Document information Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 6: Tool Symbols

    Document information Proline Promass I 100 Modbus RS485 1.2.3 Tool symbols Symbol Meaning Allen key A0011221 Open-ended wrench A0011222 1.2.4 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred.

  • Page 7: Documentation

    Documentation The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com Download For a detailed list of the individual documents along with the documentation code ...

  • Page 8: Basic Safety Instructions

    Ensure the resistance of all fluid-wetted materials in the process. ‣ Observe the specified maximum process pressure. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any Endress+Hauser...

  • Page 9: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.

  • Page 10: Product Description

    Product description Proline Promass I 100 Modbus RS485 Product description Product design 3.1.1 Device version with Modbus RS485 communication type A0017609 Important components of a measuring device Transmitter housing cover Main electronics module for Modbus RS485 Transmitter housing Sensor In the case of the device version with Modbus RS485 intrinsically safe, the Safety Barrier Promass 100 forms part of the scope of supply.

  • Page 11: Incoming Acceptance And Product

    Proline Promass I 100 Modbus RS485 Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance A0015502 A0013843 Is the order code on the delivery note (1) identical to the order code on the product sticker (2)? A0013695...

  • Page 12: Product Identification

    Incoming acceptance and product identification Proline Promass I 100 Modbus RS485 If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. Product identification The following options are available for identification of the measuring device: • Nameplate specifications •...

  • Page 13: Sensor Nameplate

    Proline Promass I 100 Modbus RS485 Incoming acceptance and product identification 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Ptest: Size: Material: Patents Date: A0017923 Example of a sensor nameplate Name of the sensor Manufacturing location Order code Serial number (Ser.

  • Page 14: Promass 100 Safety Barrier - Nameplate

    Incoming acceptance and product identification Proline Promass I 100 Modbus RS485 4.2.3 Promass 100 safety barrier - nameplate Safe area NON intrinsically safe circuit (grey terminals) Promass 100 Safety Barrier Intrinsically safe circuits (blue terminals) HAZARDOUS area A0017854 Example of a Safety Barrier Promass 100 nameplate Non-hazardous area or zone 2/div.

  • Page 15: Storage And Transport

    Proline Promass I 100 Modbus RS485 Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections.

  • Page 16: Packaging Disposal

    Storage and transport Proline Promass I 100 Modbus RS485 Packaging disposal All packaging materials are environmentally friendly and 100% recyclable: • Measuring device secondary packaging: polymer stretch film that conforms to EC Directive 2002/95/EC (RoHS). • Packaging: – Wood crate, treated in accordance with ISPM 15 standard, which is confirmed by the affixed IPPC logo.

  • Page 17: Installation

    Proline Promass I 100 Modbus RS485 Installation Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...
  • Page 18 Installation Proline Promass I 100 Modbus RS485 Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 15 FB ½ FB 0.60 0.55 25 FB 1 FB 0.95 1½ 0.87 40 FB 1½ FB 1.38 1.10 50 FB 2 FB 2.13...

  • Page 19: Requirements From Environment And Process

    Proline Promass I 100 Modbus RS485 Installation Installation dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section 6.1.2 Requirements from environment and process Ambient temperature range Measuring device • –40 to +60 °C (–40 to +140 °F) •...

  • Page 20: Special Mounting Instructions

    Installation Proline Promass I 100 Modbus RS485 Using an electrical trace heating system If heating is regulated via phase angle control or pulse packages, magnetic fields can affect the measured values (= for values that are greater than the values approved by the EN standard (sine 30 A/m)).
  • Page 21 Proline Promass I 100 Modbus RS485 Installation 21 mm/m (¼ in/ft) ~2% A0016585 Eccentric clamp connection Line on the underside indicates the lowest point of the eccentric process connection. "This side up" label indicates which side is up Slope the device in accordance with the hygiene guidelines. Slope: approx. 2 % or 21mm/m (0.24 in/feet)

  • Page 22: Mounting The Measuring Device

    Installation Proline Promass I 100 Modbus RS485 Zero point adjustment All measuring devices are calibrated in accordance with state-of-the-art technology. The zero point obtained in this way is printed on the nameplate of the measuring device. Calibration takes place under reference conditions ( ...

  • Page 23: Post-Installation Check

    Proline Promass I 100 Modbus RS485 Installation Post-installation check Is the device damaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: • Process temperature (  86) • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 24: Electrical Connection

    Electrical connection Proline Promass I 100 Modbus RS485 Electrical connection Connection conditions 7.1.1 Required tools • For cable entries: Use corresponding tools • For securing clamp (on aluminum housing): Allen screw 3 mm • For securing screw (for stainless steel housing): open-ended wrench 8 mm •...
  • Page 25 Proline Promass I 100 Modbus RS485 Electrical connection ‣ Comply with the maximum cable resistance specifications to ensure the operational reliability of the measuring device. The maximum cable length for individual wire cross-sections is specified in the table below. Observe the maximum capacitance and inductance per unit length of the cable and the connection values in the Ex documentation ( ...

  • Page 26: Terminal Assignment

    Electrical connection Proline Promass I 100 Modbus RS485 7.1.3 Terminal assignment Transmitter Connection version Modbus RS485, for use in non-hazardous areas and Zone 2/Div. 2 Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs.
  • Page 27 Proline Promass I 100 Modbus RS485 Electrical connection Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for Possible options for order code Power "Housing" "Electrical connection" Output supply...

  • Page 28: Pin Assignment, Device Plug

    Electrical connection Proline Promass I 100 Modbus RS485 Safety Barrier Promass 100 Power Modbus supply RS485 Safe area Power Lift panel for bus termination Communication Safety Barrier Promass 100 Hazardous area Power Modbus supply RS485 A0016922 Safety Barrier Promass 100 with terminals Non-hazardous area and Zone 2/Div.

  • Page 29: Shielding And Grounding

    Proline Promass I 100 Modbus RS485 Electrical connection Modbus RS485, non-hazardous areas and zone 2/Div. 2 (on the device side) Assignment Coding Plug/socket Socket Modbus RS485 Modbus RS485 Grounding/shielding A0016811 7.1.5 Shielding and grounding The shielding and grounding concept requires compliance with the following: •...

  • Page 30: Connecting The Transmitter

    Electrical connection Proline Promass I 100 Modbus RS485 7.2.1 Connecting the transmitter The connection of the transmitter depends on the following order codes: • Housing version: compact or ultracompact • Connection version: device plug or terminals A0016924 Device versions and connection versions...

  • Page 31: Connecting The Safety Barrier Promass 100

    Proline Promass I 100 Modbus RS485 Electrical connection For device version with device plug: only pay attention to Step 6. 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover.

  • Page 32: Hardware Settings

    Electrical connection Proline Promass I 100 Modbus RS485 Hardware settings 7.3.1 Enabling the terminating resistor To avoid incorrect communication transmission caused by impedance mismatch, connect the Modbus RS485 cable correctly to the start and end of the bus segment. If the transmitter is used in the non-hazardous area or Zone 2/Div. 2...

  • Page 33: Post-Connection Check

    Proline Promass I 100 Modbus RS485 Electrical connection To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps after the electrical connection: 1. Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary.

  • Page 34: Operation Options

    Operation options Proline Promass I 100 Modbus RS485 Operation options Overview of operation options A0017760 Computer with "FieldCare" operating tool via Commubox FXA291 and service interface (CDI) Control system (e.g. PLC) Endress+Hauser...

  • Page 35: Structure And Function Of The Operating Menu

    Proline Promass I 100 Modbus RS485 Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu with menus and parameters (  94) Operating menu for operators and maintenances Locking status Display/operat.

  • Page 36: Operating Philosophy

    Operation options Proline Promass I 100 Modbus RS485 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles. Each user role corresponds to typical tasks within the device lifecycle. Menu User role and tasks Content/meaning Role "Operator", "Maintenance"...

  • Page 37: Access To The Operating Menu Via The Operating Tool

    FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
  • Page 38 Operation options Proline Promass I 100 Modbus RS485 5. Select the desired device from the list and press OK to confirm. 6. Establish the online connection to the device. For details, see Operating Instructions BA00027S and BA00059S User interface A0017402-EN...

  • Page 39: System Integration

    Proline Promass I 100 Modbus RS485 System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.02.00 • On the title page of the Operating instructions • On transmitter nameplate (  12) •...

  • Page 40: Register Information

    System integration Proline Promass I 100 Modbus RS485 Code Name Description Application Master writes a new value to one Write single Write only 1 device parameter registers Modbus register of the measuring Example: reset totalizer device. Use function code 16 to write multiple registers with just 1 telegram.
  • Page 41 Proline Promass I 100 Modbus RS485 System integration Structure of the Modbus data map The Modbus data map consists of two data sets: • Scan list: Configuration area The device parameters to be grouped are defined in a list in that their Modbus RS485 register addresses are entered in the list.
  • Page 42 System integration Proline Promass I 100 Modbus RS485 Data area Device parameter value Modbus RS485 Data type* Access** register Value of scan list register 0 5051 Integer/float Read/write Value of scan list register 1 5053 Integer/float Read/write Value of scan list register ...

  • Page 43: Commissioning

    Proline Promass I 100 Modbus RS485 Commissioning Commissioning 10.1 Function check Before commissioning the device, make sure that the post-installation and post- connection checks have been performed. • "Post-mounting check" checklist (  23) • "Post-connection check" checklist (  33) 10.2...
  • Page 44 Commissioning Proline Promass I 100 Modbus RS485 Temperature unit Pressure unit Parameter overview with brief description Parameter Description Selection/ Factory setting User entry Mass flow unit Select the unit for mass flow. Unit choose list Country-dependent: • kg/h Result • lb/min The selected unit applies for: –...
  • Page 45 Proline Promass I 100 Modbus RS485 Commissioning Parameter Description Selection/ Factory setting User entry Temperature unit Select the unit for temperature. Unit choose list Country-dependent: • °C (Celsius) Result • °F (Fahrenheit) The selected unit applies for: – Output – Reference temperature –...

  • Page 46: Selecting And Setting The Medium

    Commissioning Proline Promass I 100 Modbus RS485 10.3.2 Selecting and setting the medium The Medium selection submenu contains parameters that have to be configured for selecting and setting the medium. Navigation path "Setup" menu Medium selection Structure of the submenu...

  • Page 47: Interface

    Proline Promass I 100 Modbus RS485 Commissioning 10.3.3 Configuring communication interface The Communication submenu guides you systematically through all parameters that must be configured for selecting and setting the communication interface. Navigation path "Setup" menu Communication Structure of the submenu...
  • Page 48 Commissioning Proline Promass I 100 Modbus RS485 Selection/ Parameter Description Factory setting User entry Assign diagnostic Select diagnostic behavior • Off Alarm behavior for MODBUS • Alarm or warning communication. • Warning • Alarm Failure mode Select measured value • NaN value...

  • Page 49: Configuring The Low Flow Cut Off

    Proline Promass I 100 Modbus RS485 Commissioning 10.3.4 Configuring the low flow cut off The Low flow cut off submenu contains parameters that have to be set for configuring the low flow cut off. Navigation path "Setup" menu Low flow cut off...

  • Page 50: Configuring The Partial Filled Pipe Detection

    Commissioning Proline Promass I 100 Modbus RS485 10.3.5 Configuring the partial filled pipe detection The Partially filled pipe detection submenu contains parameters that have to be set for configuring empty pipe detection. Navigation path "Setup" menu Partial filled pipe detection...

  • Page 51: Advanced Settings

    Proline Promass I 100 Modbus RS485 Commissioning 10.4 Advanced settings The Advanced setup menu with its submenus contains all parameters needed for specific settings. Navigation path "Setup" menu Advanced setup Overview of the parameters and submenus in the "Advanced setup" menu taking the...

  • Page 52: Carrying Out A Sensor Adjustment

    Commissioning Proline Promass I 100 Modbus RS485 Linear expansion coefficient Square expansion coefficient Parameter overview with brief description Parameter Prerequisites Description Selection/input Factory settings Corrected – Select the reference Calculated reference density • Fixed reference volume flow density for density...

  • Page 53: Configuring The Totalizer

    Proline Promass I 100 Modbus RS485 Commissioning Navigation path "Setup" menu Advanced setup Sensor adjustment Structure of the submenu Sensor adjustment Installation direction Zero point adjustment Zero point adjustment control Progress Parameter overview with brief description Parameter Description Selection/ Factory setting...

  • Page 54: Simulation

    Commissioning Proline Promass I 100 Modbus RS485 Parameter overview with brief description Selection/ Parameter Prerequisite Description Factory setting User entry Assign process Select process • Off Mass flow variable variable for totalizer. • Mass flow • Volume flow Result • Corrected volume...

  • Page 55: Protecting Settings From Unauthorized

    Proline Promass I 100 Modbus RS485 Commissioning Navigation path "Diagnostics" menu Simulation Simulation Assign simulation process variable Value process variable Simulation device alarm 10.5.1 Parameter overview with brief description Selection/ Parameter Prerequisite Description Factory setting User entry Assign simulation Select a process •...
  • Page 56 Commissioning Proline Promass I 100 Modbus RS485 4 - Bus termination 3 - Not used 2 - Not used 1 - Write protection A0017954 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover.

  • Page 57: Operation

    Proline Promass I 100 Modbus RS485 Operation Operation 11.1 Read device locking status The write protection types that are currently active can be determined using the Locking status parameter. Navigation path "Display/operation" menu Locking status Function scope of "Locking status" parameter...

  • Page 58: Totalizer

    Operation Proline Promass I 100 Modbus RS485 Parameter overview with brief description Parameter overview with brief description Parameter Prerequisite Description Display Mass flow – Displays the mass flow currently Floating-point number with measured sign Volume flow – Displays the volume flow currently...

  • Page 59: Adapting The Measuring Device To The Process

    Proline Promass I 100 Modbus RS485 Operation Parameter overview with brief description Parameter Prerequisite Description Display Totalizer value 1-3 One of the following Displays the current Floating point number options is selected in the totalizer counter value. with sign Assign process variable...
  • Page 60 Operation Proline Promass I 100 Modbus RS485 "Operation" submenu Operation Control totalizer 1 Preset value 1 Control totalizer 2 Preset value 2 Control totalizer 3 Preset value 3 Reset all totalizers Parameter overview with brief description Selection/ Parameter Prerequisite Description...

  • Page 61: Diagnostics And Troubleshooting

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For output signals Problem Possible causes Remedy Green power LED on the main Supply voltage does not match that Apply the correct supply voltage electronics module of the specified on the nameplate.

  • Page 62: Safety Barrier Promass 100

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Alarm Device status is ok. Flashing red A device error of diagnostic behavior "Warning" has occurred. • A device error of diagnostic behavior "Alarm" has occurred. • Boot loader is active.

  • Page 63: Calling Up Remedy Information

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Status signals The status signals provide information on the state and reliability of the device by categorizing the cause of the diagnostic information (diagnostic event). Symbol Meaning Failure A device error has occurred. The measured value is no longer valid.

  • Page 64: Configuring Error Response Mode

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 • Via register address 6821 (data type = string): diagnosis code, e.g. F270 • Via register address 6859 (data type = integer): diagnosis number, e.g. 270 For an overview of diagnostic events with diagnosis number and diagnosis code ...

  • Page 65: Overview Of Diagnostic Information

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting 12.6 Overview of diagnostic information The amount of diagnostic information increases if the measuring device has one or more application packages. Diagnostics for the sensor Status Diagnostic Diagnosti signal Short text...
  • Page 66 Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 Diagnostics for the configuration Status Diagnostic Diagnosti signal Short text Remedial measures behavior c number from the from the factory factory Data transfer 1. Check connection. Alarm 2. Retry data transfer.

  • Page 67: Pending Diagnostic Events

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Status Diagnostic Diagnosti signal Short text Remedial measures behavior c number from the from the factory factory Inhomogeneous Oscillation amplitude limit! Alarm* The fluid properties do not allow a precise measurement.

  • Page 68: Event Logbook

    Diagnostics and troubleshooting Proline Promass I 100 Modbus RS485 12.9 Event logbook 12.9.1 Event history A chronological overview of the event messages that have occurred is provided in the events list which contains a maximum of 20 message entries. This list can be displayed via FieldCare if necessary.

  • Page 69: 12.10 Resetting The Measuring Device

    Proline Promass I 100 Modbus RS485 Diagnostics and troubleshooting Information event Event text I1151 History reset I1209 Density adjustment OK I1221 Zero point adjust failure I1222 Zero point adjustment OK 12.10 Resetting the measuring device Using the Device reset parameter it is possible to reset the entire device configuration or some of the configuration to a defined state.

  • Page 70: 12.12 Firmware History

    "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser Internet site: www.endress.com Download • Specify the following details: –...

  • Page 71: Maintenance

    Observe the inside diameter of the measuring tube and process connection. 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.

  • Page 72: Repair

    • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by correspondingly trained customers. • Certified devices can be converted into other certified devices by Endress+Hauser Service or at the factory only. Notes for repair and conversion For repair and modification of a measuring device, observe the following notes: •...

  • Page 73: Disposing Of The Measuring Device

    Proline Promass I 100 Modbus RS485 Repair 2. WARNING! Danger to persons from process conditions. Beware of hazardous process conditions such as pressure in the measuring device, high temperatures or aggressive fluids. Carry out the mounting and connection steps from the chapters "Mounting the measuring device"...

  • Page 74: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 75: Service-Specific Accessories

    The application already contains the data of your Endress+Hauser device. Endress +Hauser also takes care of maintaining and updating the data records.

  • Page 76: Technical Data

    Technical data Proline Promass I 100 Modbus RS485 Technical data 16.1 Application The measuring device is suitable for flow measurement of liquids and gases only. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
  • Page 77 Proline Promass I 100 Modbus RS485 Technical data Measuring range full scale values  to  min(F) max(F) [mm] [in] [kg/h] [lb/min] 0 to 70 000 0 to 2 570 50 FB 2 FB 0 to 180 000 0 to 6 600...

  • Page 78: Output

    Technical data Proline Promass I 100 Modbus RS485 Fieldbuses Input signal To increase the accuracy of certain measured variables or to calculate the corrected volume flow for gases, the automation system can continuously write different measured values to the measuring device via Modbus RS485, EtherNet/IP or HART input: •...
  • Page 79 Proline Promass I 100 Modbus RS485 Technical data Transmitter Intrinsically safe values Order code for Terminal numbers "Approvals" Supply voltage Signal transmission 20 (L-) 10 (L+) 62 (A) 72 (B) • Option BM: ATEX II2G + IECEx Z1 Ex ia, II2D Ex tb =16.24 V...

  • Page 80: Power Supply

    Technical data Proline Promass I 100 Modbus RS485 16.5 Power supply Terminal assignment  26) Pin assignment, device plug  28) Transmitter Supply voltage • For device version with all communication types except Modbus RS485 intrinsically safe: DC20 to 30 V •...

  • Page 81: Performance Characteristics

    Proline Promass I 100 Modbus RS485 Technical data Potential equalization No special measures for potential equalization are required. Transmitter Terminals Spring terminals for wire cross-sections0.5 to 2.5 mm (20 to 14 AWG) Safety Barrier Promass 100 Plug-in screw terminals for wire cross-sections0.5 to 2.5 mm...
  • Page 82 Technical data Proline Promass I 100 Modbus RS485 Zero point stability Zero point stability [mm] [in] [kg/h] [lb/min] ³⁄₈ 0.150 0.0055 ½ 0.488 0.0179 15 FB ½ FB 1.350 0.0496 1.350 0.0496 25 FB 1 FB 3.375 0.124 1½ 3.375 0.124...
  • Page 83 Proline Promass I 100 Modbus RS485 Technical data 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 70 000 7 000 3 500 1 400 50 FB 180 000 18 000 9 000 3 600 1 800...
  • Page 84 Technical data Proline Promass I 100 Modbus RS485 Wide-range density specification (special density calibration) If the process temperature is outside the valid range (  81) the measured error is ±0.0001 g/cm /°C (±0.00005 g/cm /°F) [kg/m ] [°C] [°F]...

  • Page 85: Installation

    Proline Promass I 100 Modbus RS485 Technical data Dependent on the flow: • Flow in % o.f.s. ≥ (zero point stability : base accuracy in % o.r.) · 100 – Maximum measured error in % o.r.: ±base accuracy in % o.r.

  • Page 86: Process

    Technical data Proline Promass I 100 Modbus RS485 16.9 Process Medium temperature range Sensor –50 to +150 °C (–58 to +302 °F) Seals No internal seals Medium density 0 to 5 000 kg/m (0 to 312 lb/cf) Pressure-temperature An overview of the material load diagrams (pressure/temperature diagrams) for the ratings process connections is provided in the "Technical Information"...
  • Page 87 Proline Promass I 100 Modbus RS485 Technical data • The minimum recommended full scale value is approx. 1/20 of the maximum full scale value • In most applications, 20 to 50 % of the maximum full scale value can be considered ideal •...

  • Page 88: 16.10 Mechanical Construction

    Technical data Proline Promass I 100 Modbus RS485 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight Compact version Weight in SI units All values (weight) refer to devices with EN/DIN PN 40 flanges. Weight information in [kg].
  • Page 89 Proline Promass I 100 Modbus RS485 Technical data Transmitter housing Materials • Order code for "Housing", option A "Compact, coated alu": Coated aluminum AlSi10Mg • Order code for "Housing", option B "Compact, hygienic, stainless": Hygienic version, stainless steel 1.4301 (304) •...

  • Page 90: 16.11 Operability

    The measuring system is in conformity with the statutory requirements of the applicable EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser...
  • Page 91 “MODBUS/TCP Conformance Test Laboratory” of the University of Michigan. Pressure Equipment • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser Directive confirms compliance with the "Essential Safety Requirements" specified in Annex I of the Pressure Equipment Directive 97/23/EC.

  • Page 92: 16.13 Application Packages

    The application packages can be ordered from Endress+Hauser either directly with the device or subsequently. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 93: 16.14 Accessories

    Overview of accessories available for order (  74) 16.15 Documentation The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com Download Standard documentation Communication Document type...

  • Page 94: Appendix

    Appendix Proline Promass I 100 Modbus RS485 Appendix 17.1 Overview of the operating menu The following table provides an overview of the entire operating menu structure with menus and parameters. The page reference indicates where a description of the parameter can be found in the manual.
  • Page 95 Proline Promass I 100 Modbus RS485 Appendix Communication  47) Bus address Baud rate Data transfer mode Parity Byte order Assign diagnostic behavior Failure mode Low flow cut off  49) Assign process variable On value low flow cutoff Off value low flow cutoff...
  • Page 96 Appendix Proline Promass I 100 Modbus RS485 Square expansion coefficient Sensor adjustment  52) Installation direction Zero point adjustment Zero point adjustment control Progress Totalizer 1 to 3  53) Assign process variable Mass unit Volume unit Corrected volume unit...
  • Page 97 Proline Promass I 100 Modbus RS485 Appendix User kinematic viscosity factor User kinematic viscosity offset Concentration  93) Concentration unit User concentration text User concentration factor User concentration offset A0 to A4 B1 to B3 Heartbeat Setup  93) Progress...
  • Page 98 Appendix Proline Promass I 100 Modbus RS485 Order code Extended order code1 to 3 ENP version Measured values  57) Process variables  57) Mass flow Volume flow Corrected volume flow Density Reference density Temperature Pressure value Dynamic viscosity  93) Kinematic viscosity ...
  • Page 99 Proline Promass I 100 Modbus RS485 Appendix Hour AM/PM Minute Start verification Progress Status Verification results Date/time Verification ID Operating time Overall result Sensor Sensor integrity Sensor electronic module I/O module Monitoring results Device reset  69) Expert  36) Locking status ...
  • Page 100 Appendix Proline Promass I 100 Modbus RS485 Assign behavior of diagnostic no. 392 Assign behavior of diagnostic no. 592 Assign behavior of diagnostic no. 832 Assign behavior of diagnostic no. 833 Assign behavior of diagnostic no. 834 Assign behavior of diagnostic no.
  • Page 101 Proline Promass I 100 Modbus RS485 Appendix Kinematic viscosity  93) Temp. compensated  93) dynamic viscosity Temp. compensated  93) kinematic viscosity  93) Concentration Target mass flow Carrier mass flow Totalizer  58) Totalizer value1 to 3 Totalizer overflow1 to 3 System units ...
  • Page 102 Appendix Proline Promass I 100 Modbus RS485 User density offset User density factor User pressure text User pressure offset User pressure factor Process param. Flow damping Density damping Flow override Temperature damping Low flow cut off  49) Assign process variable...
  • Page 103 Proline Promass I 100 Modbus RS485 Appendix External pressure Temperature mode External temperature Calculated values  51) Corrected volume flow calculation External reference density Fixed reference density Reference temperature Linear expansion coefficient Square expansion coefficient Sensor adjustment  52) Installation direction...
  • Page 104 Appendix Proline Promass I 100 Modbus RS485 Calibration Calibration factor Zero point Nominal diameter C0 to 5 Testpoints Oscillation frequency 0 to 1 Frequency fluctuation0 to 1 Oscillation amplitude0 to 1 Oscillation damping0 to 1 Tube damping fluctuation0 to 1...
  • Page 105 Proline Promass I 100 Modbus RS485 Appendix Process variables  57) Mass flow Volume flow Density Temperature Pressure value Totalizer  58) Totalizer value1 to 2 System units  43) Mass flow unit Mass unit Volume flow unit Volume unit...
  • Page 106 Appendix Proline Promass I 100 Modbus RS485 Temperature compensation Calculation model Reference temperature Compensation coefficient X1, X2 Dynamic viscosity Dynamic viscosity unit User dynamic viscosity text User dynamic viscosity factor User dynamic viscosity offset Kinematic viscosity Kinematic viscosity unit User kinematic viscosity...
  • Page 107 Proline Promass I 100 Modbus RS485 Appendix Operating time Diagnostic list Diagnostics 1 to 5 Timestamp Event logbook Filter options Device information Device tag Serial number Firmware version Device name Order code Extended order code1 to 3 ENP version Configuration counter...
  • Page 108 Appendix Proline Promass I 100 Modbus RS485 Minimum value Maximum value Oscillation amplitude Minimum value Maximum value Torsion oscillation amplitude Minimum value Maximum value Oscillation damping Minimum value Maximum value Torsion oscillation damping Minimum value Maximum value Signal asymmetry Minimum value...
  • Page 109 Proline Promass I 100 Modbus RS485 Appendix Operating time Overall result Sensor Sensor integrity Sensor electronic module I/O module Heartbeat Monitoring Activate monitoring Monitoring results Sensor integrity Simulation  54) Assign simulation process variable Value process variable Simulation device alarm...

  • Page 110: Index

    Index Proline Promass I 100 Modbus RS485 Index Device documentation Supplementary documentation ....7 Accuracy ........81 Device locking, status .
  • Page 111 Proline Promass I 100 Modbus RS485 Index Exterior cleaning ......71 Manufacturing date ..... . . 12, 13 Materials .
  • Page 112 Index Proline Promass I 100 Modbus RS485 Transmitter ......12 Reference operating conditions ....81 Registered trademarks .
  • Page 113 Proline Promass I 100 Modbus RS485 Index Sensor adjustment ......53 System units ......43 Totalizer .
  • Page 114 www.addresses.endress.com...
