Chapter 2
Installing the Device
1

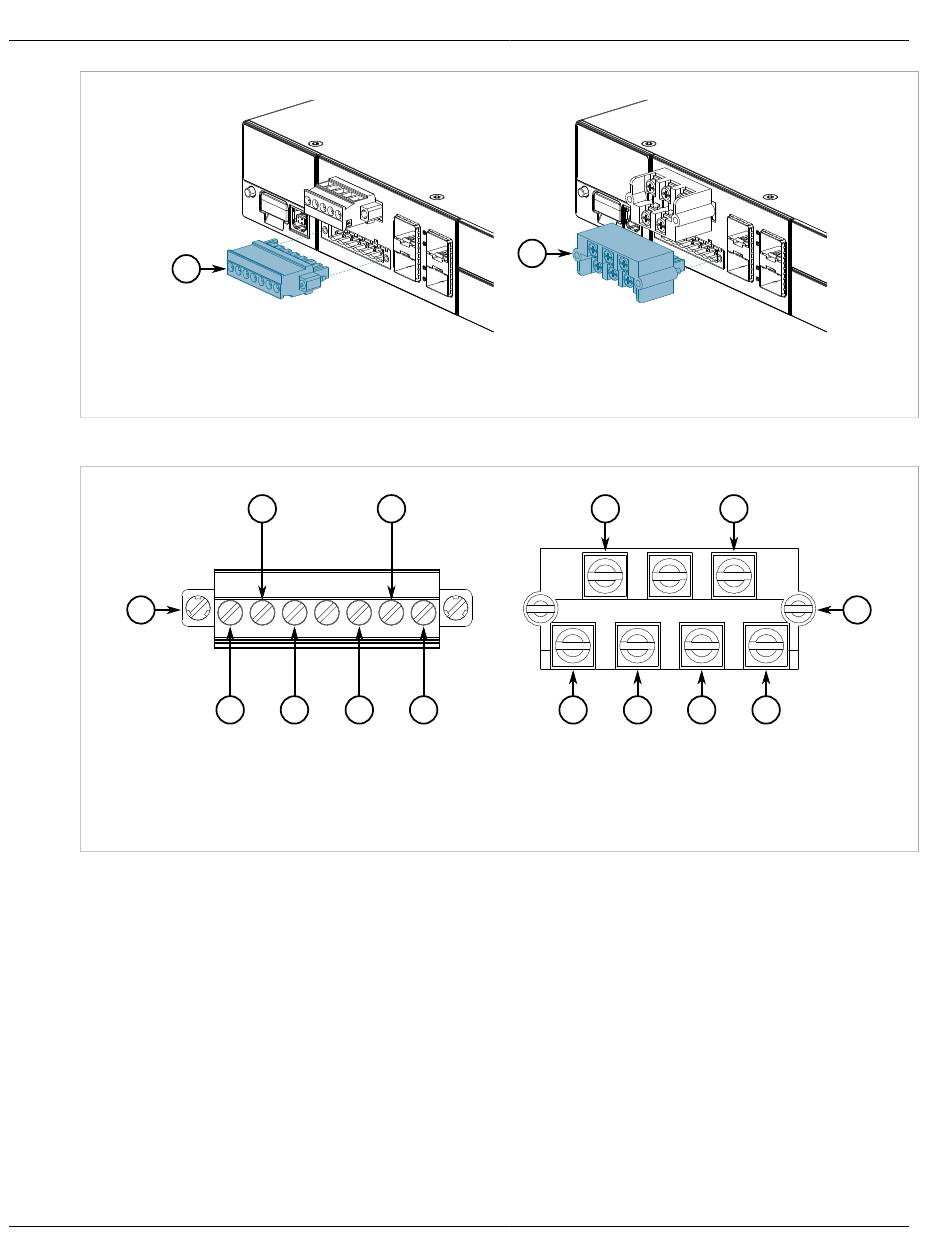

Figure 9: Assembling the Power Supply Terminal Block
1. Pluggable Terminal Block 2. Screw-Type Terminal Block
2.
Connect the Line wire from the power source to the positive/live (+/L) terminal on the terminal block.
1
Figure 10: AC Terminal Block Wiring
1. Pluggable Terminal Block 2. Screw-Type Terminal Block 3. Positive/Line (+/L) Terminal for PS1 4. Chassis/Ground Terminal
for PS1 5. Negative/Neutral (-/N) Terminal for PS1 6. Positive/Line (+/L) Terminal for PS2 7. Chassis/Ground Terminal for PS2
8. Negative/Neutral (-/N) Terminal for PS2
3.
Connect the ground wire to the chassis/ground terminal on the terminal block.
4.
Connect the Neutral wire from the power source to the negative/neutral (-/N) terminal on the terminal block.
5.
For screw-type terminal blocks, install the safety cover.
14
4
7
3
5
6
2
8
3
4
7
5
6
8
Connecting High AC/DC Power
RUGGEDCOM RST2228
Installation Guide
2
