TI00445F/00/EN/14.12
71207246

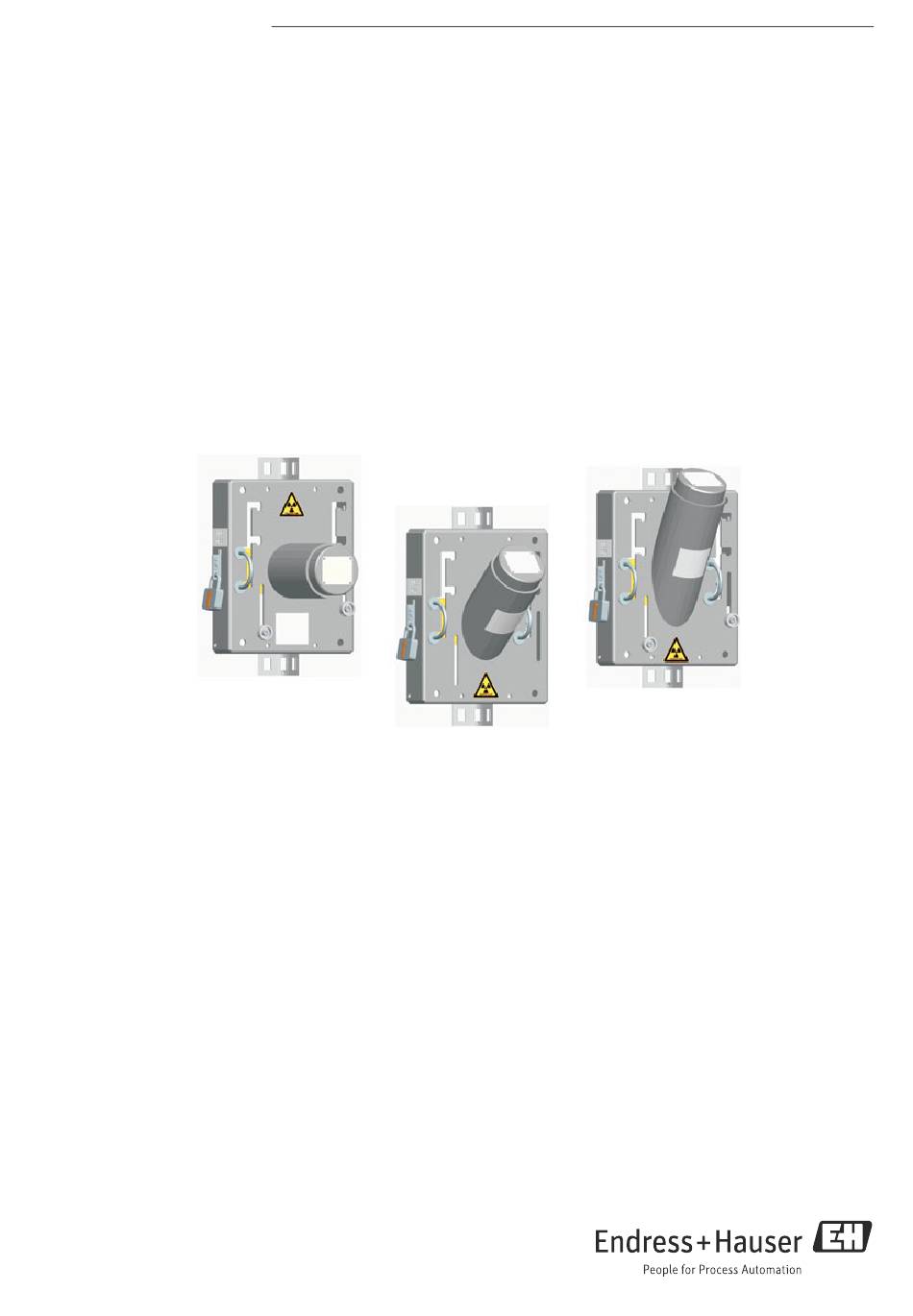

Container with radiation source insert with manual switch-on and switch-off
Application
The FQG60 source container is designed to hold the radioactive
source during radiometric level limit measurement, level
measurement and density measurement. The radiation is
emitted almost unattenuated in one direction only, and is
damped in all other directions.
137
The FQG60 is suitable for
The FQG61, FQG62 or QG2000 devices are available for larger
activities.
In the case of density measurement, it is suitable for pipe outer
diameters ranging from 48 to 273 mm (1.89 to 10.7 in).
Products
Technical Information /
Operating Instructions
Source container FQG60
Radiometric Measurement
Cs to 1.1 GBq (30 mCi).
Solutions
Your benefits
• Small-size, lightweight device provides optimized screening
• Highest safety classification for the source supplied
(DIN 25426/ISO 2919, typical classification C66646)
• Fire-resistant version 821 °C (1510 °F)/ 30 minutes
• Compact device that is easy to mount
• Various angles of emission for optimum adaptation to the
application
• Manual switch-on and switch-off (ON/OFF)
• Padlock to fix switching positions (ON/OFF), or snap hook to
fix switching position ON
• Switch status easily identified
• Integrated mounting device for density measurement on
pipes
• Optional: calibration plate for quick and easy density
recalibration
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser QG2000
Summary of Contents for Endress+Hauser QG2000
- Page 1 • Compact device that is easy to mount The FQG60 is suitable for Cs to 1.1 GBq (30 mCi). • Various angles of emission for optimum adaptation to the The FQG61, FQG62 or QG2000 devices are available for larger application activities. • Manual switch-on and switch-off (ON/OFF) •...
-
Page 2: Table Of Contents
Recalibration ....... . . 20 Recalibration with calibration plate ..... 20 Endress+Hauser... -
Page 3: Safety Instructions
In order to guarantee the screening effect and to exclude damage of the radiation source, all instructions given in this Technical Information for mounting and operation as well as all regulations for radioactive protection are to be followed exactly. Endress+Hauser accepts no responsibility for any damage caused by incorrect use. -
Page 4: General Instructions On Radiation Protection
Ensure the screening between the radiation source and you and all other persons is as good as possible. Source containers (e.g. FQG60, FQG61, FQG62, FQG63, QG2000) and all high-density materials (lead, iron, concrete etc.), can be used for effective screening purposes. -
Page 5: Symbols
A0011184 Reference to page Refers to the corresponding page number. A0015484 , ... Series of steps Symbols in graphics Symbol Meaning 1, 2, 3, 4, ... Item numbers , ... Series of steps A, B, C, D, ... Views Endress+Hauser... -
Page 6: Function And System Design
150° 30° 0° 180° 40% 60% 80% 100% 210° 330° 300° 240° 270° A0018469 Feature 240 "Emission Angle; Application", Option model 3 "20 deg; limit switch + density" Cs - 1.1 GBq (30 mCi) - 1 m (3.3 ft) Endress+Hauser... - Page 7 180° 0° 40% 60% 80% 100% 210° 330° 240° 300° 270° A0018471 Feature 240 "Emission Angle; Application", Option model 4 " 20 deg; density 30 deg diagonal radiation" Cs - 1.1 GBq (30 mCi) - 1 m (3.3 ft) Endress+Hauser...
-
Page 8: Mechanical Construction
Feature 240 "Emission Angle; Application", Option model 3 "20 deg; limit switch + density" Feature 240 "Emission Angle; Application", Option model 5 " 40 deg; level" Feature 240 "Emission Angle; Application", Option model 4 " 20 deg; density 30 deg diagonal radiation" The recalibration function is described on ä 20 Endress+Hauser... -
Page 9: Design, Dimensions
Feature 240 "Emission Angle; Application", Option model 3 "20 deg; limit switch + density" 20° radiation emission angle Level measurement 232 (9.13) 192 (7.56) 180 (7.09) 132 (5.2) 52 (2.05) RADIOACTIVE mm (in) A0018489 Feature 240 "Emission Angle; Application", Option model 5 " 40 deg; level" 40° radiation emission angle Endress+Hauser... -
Page 10: Weight
316 L (1.4404) Safety equipment • Padlock to fix switching position ON or OFF, or snap hook to fix switching position ON (depending on the device version). • Stainless steel nameplate riveted over the source insert for theft protection. Endress+Hauser... -
Page 11: Ambient Conditions
IEC EN 60068-2-64 test Fh; 10 to 2000 Hz; 0.01 g Shock IEC-60068-2-27 test Ea (30 g; 18 ms; 3 shocks / direction / axis) Degree of protection IP66; NEMA Type 4 Fire resistance 30 min. @ 821 °C (1510 °F) Endress+Hauser... -
Page 12: Identification
Order code of source container as per product structure ( Radiation emission angle Local dose rate at a defined distance from the surface Endress+Hauser internal order code for the radiation source Endress+Hauser internal serial number for the radiation source "... -
Page 13: Installation
‣ If using methods other than the mounting plate or L-profiles to secure the device, we recommend the use of the clamping device FHG61. ‣ Mounting instructions are provided in the documentation: SD00330F/00/A2 and SD0331F/00/A2. Endress+Hauser... -
Page 14: Mounting Position For Level Measurement
This space must then be blocked off and marked. A0018503 FQG60; Feature 240 "Emission Angle; Application", Option model 5 "40 deg; level" FMG60 Endress+Hauser... -
Page 15: Mounting Position For Level Limit Detection
Mounting position for level For level limit detection, the radiation limit detection source container is mounted at the same height as the detector. A0018505 FQG60; Feature 240 "Emission Angle; Application", Option model 3 "20 deg; limit switch + density" FMG60 Endress+Hauser... -
Page 16: Mounting Device (Supplied By Customer)
The intermediate space must be blocked off if necessary (to limit access). min. 240 (9.45) max. 15 (0.59) 180 (7.09) ø11(0.43) (1.97) mm (in) A0018506 Mounting plate min. 240 (9.45) 180 (7.09) max. 15 (0.59) ø11 (0.43) min. 50 (1.97) mm (in) A0018507 L-profiles Endress+Hauser... - Page 17 Lateral installation (see graphic) is only permitted in low-vibration applications, while taking safety instructions into account (periodical inspection of the shutter, padlock or snap hook and mounting clamps). A clamping device is available as an accessory for mounting the device on pipes ä 28. A0018510 Endress+Hauser...
-
Page 18: Torque For The Mounting Screws (Supplied By Customer)
• A high local dose rate also causes the detector unit (scintillator and photomultiplier) to age quickly. The best way to avoid such a situation is to mount a second radiometric measuring system that monitors the radiation intensity. If high radiation levels occur, an alarm is issued and the source container shall be switched OFF. Endress+Hauser... -
Page 19: Operation
Feature 020, Option model B Insert padlock in the ON position. Insert snap hook in the ON position. Insert padlock in the left handle. Switching radiation OFF In order to switch the radiation OFF, perform the above steps in reverse order. Endress+Hauser... -
Page 20: Recalibration
• Empty pipe (note local dose rate) • Filled with a defined medium, e.g. water Release the clamps RADIOACTIVE A0018516 Slide the calibration plate into the radiation path to the upper limit stop. RADIOACTIVE A0018517 Tighten the clamps again. Perform the recalibration. RADIOACTIVE A0018518 Endress+Hauser... - Page 21 Once the information has been entered, I recalculated to suit the current measuring conditions. The absorption coefficient μ is retained from the original calibration. WARNING The calibration plate does not represent a shielding in the sense of radiation protection. Endress+Hauser...
-
Page 22: Maintenance And Inspection
- If the shutter does not move easily or shows any other indication of possible malfunctions, secure it in the OFF position and contact the responsible radiation safety officer for further instructions. - In case of corrosion follow the instructions in the "Inspection (Measures in case of corrosion)" ä 22 section Endress+Hauser... -
Page 23: Routine Leak Test Procedure
In case of an indeed leaking source: • Contact the responsible radiation safety officer for instructions • Take appropriate measures to control a potential spread of radioactive contamination from the source. • Notify the authority of the fact that a leaking source has been detected. Endress+Hauser... -
Page 24: Emergency Procedure
Make necessary notifications to local authorities within 24 h After thorough assessment of the situation, the responsible radiation safety officer, in conjunction with local authorities, shall agree a remedy to the specific problem. NOTICE National regulations may require other procedures and reporting obligations. Endress+Hauser... -
Page 25: Procedures After Termination Of The Application
Endress+Hauser. Other countries Contact your Endress+Hauser Sales Center or the appropriate authority to find a way of returning the radiation source nationally. If return is not possible domestically, the further procedure must be agreed with the sales center concerned. -
Page 26: Ordering Information
Special version, TSP-no. to be spec. 240 Emission angle; Application 20 deg.; limit switch + density 20 deg.; density 30 deg. diagonal radiation 40 deg.; level Special version, TSP-no. to be spec. 250 Labeling English German/English French/English Swedish/English Norwegian/English Russian/English Endress+Hauser... -
Page 27: Scope Of Delivery
The transport of loaded source containers is conducted by a company commissioned by Endress+Hauser and officially certified for executing this type of job. Transportation shall take place in a Type "A" package which complies to the regulations of the European Agreement on the International Transportation of Hazardous Substances on Roads (ADR and DGR/IATA). -
Page 28: Accessories
NaI, 50 mm + cooling tube/collimator / PVT, 200 mm/400 mm + cooling tube Special version, TSP-no. to be spec. 020 Material 316 L 304 (in preparation) Special version, TSP-no. to be spec. 995 Marking Tagging (TAG), see additional spec. NOTICE Additional information is provided in the documentation: SD00330F/00/A2 and SD00331F/00/A2. Endress+Hauser... -
Page 29: Associated Documentation
Operating Instructions for Gammapilot FMG60 (PROFIBUS PA) BA00330F/00/EN Operating Instructions for Gammapilot FMG60 (FOUNDATION Fieldbus) Gammapilot FTG20 TI01023F/00/EN Technical Information for Gammapilot FTG20 BA01035F/00/EN Operating Instructions for Gammapilot FTG20 Supplementary Instruction SD00292F/00/EN Manuals Supplementary Instruction Manual for Canada SD00293F/00/EN Supplementary Instruction Manual for the USA Endress+Hauser... -
Page 30: Manufacturer Declaration Radiation Source Container
Source container FQG60 Manufacturer Declaration Radiation Source Container A0018523 Endress+Hauser... - Page 31 Source container FQG60 Endress+Hauser...
