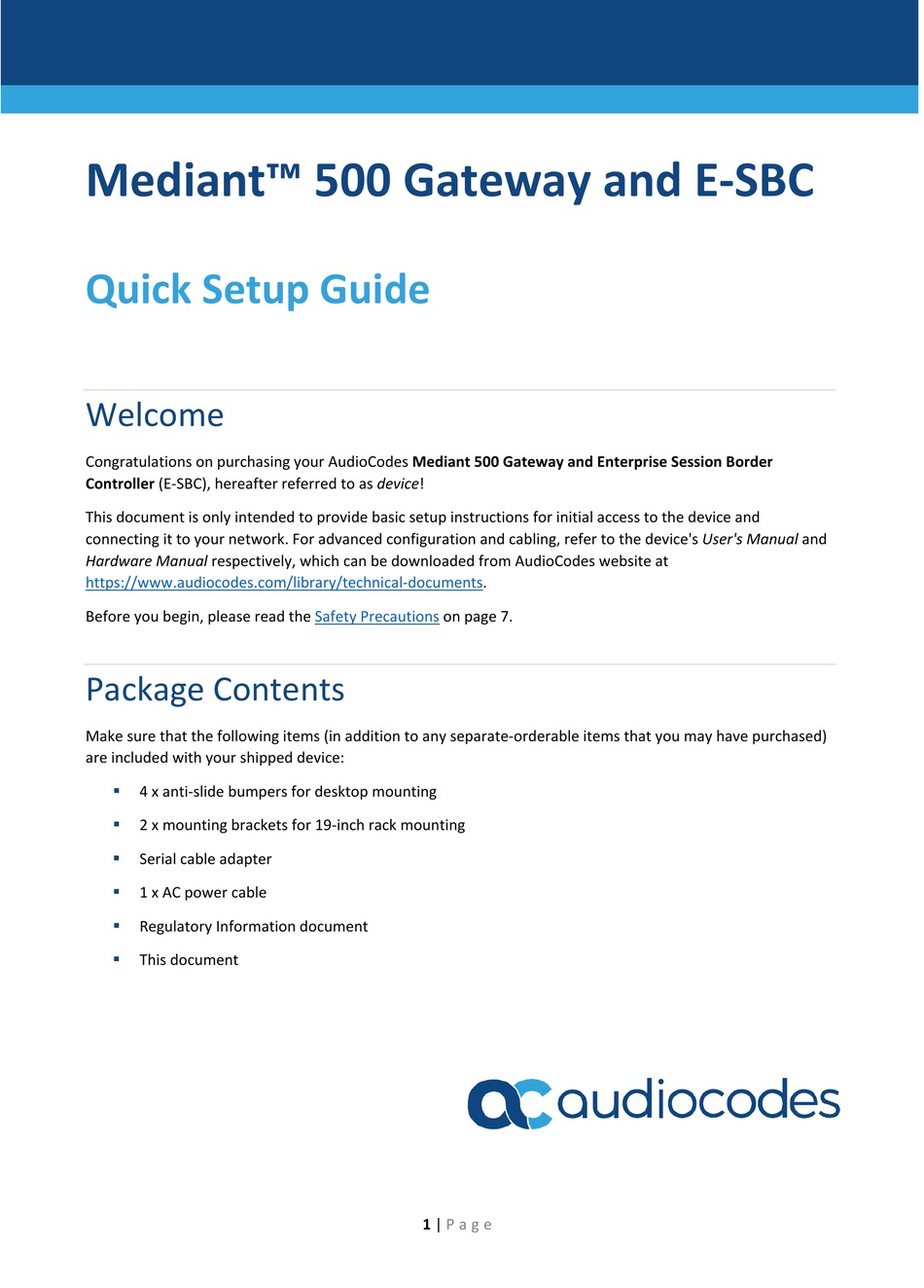

Mediant™ 500 Gateway and E-SBC
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes Mediant 500 Gateway and Enterprise Session Border
Controller (E-SBC), hereafter referred to as device!
This document is only intended to provide basic setup instructions for initial access to the device and
connecting it to your network. For advanced configuration and cabling, refer to the device's User's Manual and
Hardware Manual respectively, which can be downloaded from AudioCodes website at
https://www.audiocodes.com/library/technical-documents.
Before you begin, please read the

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are included with your shipped device:
4 x anti-slide bumpers for desktop mounting
2 x mounting brackets for 19-inch rack mounting
Serial cable adapter
1 x AC power cable
Regulatory Information document
This document
Safety Precautions
on page 7.
1 |
P a g e

Advertisement

Table of Contents
loading

Related Manuals for AudioCodes Mediant 500

Summary of Contents for AudioCodes Mediant 500

  • Page 1: Package Contents

    Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes Mediant 500 Gateway and Enterprise Session Border Controller (E-SBC), hereafter referred to as device! This document is only intended to provide basic setup instructions for initial access to the device and connecting it to your network.

  • Page 2: Physical Description

    Physical Description POWER / POWER LED STATUS Green On Power received by device No power STATUS LED Green On Device is operational Green Flashing Initial rebooting stage or software upgrade (.cmp file) in process Red On Boot failure Advanced rebooting stage Reset pinhole button for resetting the device or restoring it to factory defaults.

  • Page 3: Mounting The Device

    Mounting the device in a standard 19-inch rack by placing it on a pre-installed shelf (not supplied) in  the rack and optionally, securing it to the rack frame using the two mounting brackets (supplied). Mounting the device on a wall in horizontal or vertical orientation, using AudioCodes wall-mounting  bracket (customer-ordered item).
  • Page 4 Cabling the Device for Power The device is powered from a standard alternating current (AC) electrical wall outlet. Ground (earth) the device by connecting an electrically earthed strap of 16-AWG (minimum) wire to the chassis' grounding screw that is located on the rear panel, using the supplied washer. Fasten the wire securely using a 6-32 UNC screw.

  • Page 5: Assigning An Ip Address

    Assigning an IP Address Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 0.0.0.0) to initially access the device's Web-based management interface and then change it to suit your network's addressing scheme for subsequent connectivity. Using a CAT-5e/6 shielded twisted pair (STP) straight-through RJ-45 Ethernet cable, connect the device's Ethernet port LAN GE 1 (front panel) to the LAN port of your computer.
  • Page 6 Re-cable the device to the required network. You can now access the device's management interfaces remotely, using the new IP address. Obtaining Software and Documentation If you have a maintenance and support agreement with AudioCodes, you can download the device's latest software version from AudioCodes' Services Portal at https://services.audiocodes.com (registered users only).

  • Page 7: Safety Precautions

    Safety Precautions The device must be installed and serviced only by qualified service personnel.  This device is an indoor unit and therefore, must not be installed outdoors.  Ethernet cabling must be routed only indoors and must not exit the building. ...
  • Page 8 Website: https://www.audiocodes.com/ ©2019 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice and CloudBond are trademarks or registered trademarks of AudioCodes Limited.
