- Page 1 BRI/PRI Media Gateways AudioCodes Mediant™ Series Quick Setup Guide BroadCloud SIP-Trunking Service using AudioCodes Mediant BRI/PRI Gateway Version 6.8 / 7.0 May 2016...
-
Page 2: Table Of Contents
Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published, nor can it accept responsibility for errors or omissions. -
Page 3: Introduction

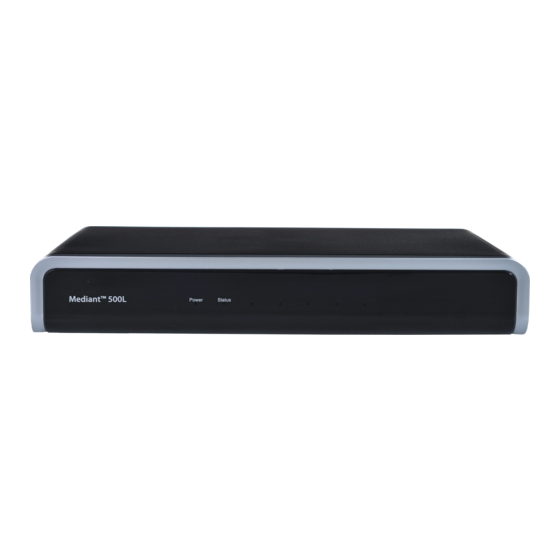

Quick Setup Guide 1. Introduction Introduction This guide shows how to set up AudioCodes' Mediant BRI/PRI Gateway to interoperate with the BroadCloud SIP trunk. Component Information 1.1.1 AudioCodes Gateway Version Table 1-1: AudioCodes Gateway Version SBC Vendor AudioCodes Mediant 500L Models ... - Page 4 BroadCloud SIP Trunk 1.1.3 Solution Topology Interoperability between AudioCodes' BRI/PRI gateway and the BroadCloud SIP trunk was achieved using the following topology setup: Enterprise BRI/PRI PBX AudioCodes Mediant Gateway device, connecting the enterprise’s BRI/PRI PBX to the BroadCloud SIP trunking service over IP Internet/MPLS network connectivity to the BroadCloud SIP trunk service ...
-
Page 5: Installing The Hardware
ON / OFF Power button which powers on the device when pressed in and powers off the device when pressed again (pressed out). CONSOLE RJ-45 port for RS-232 serial communication with the device. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 6 To protect against electrical shock and fire, use a 26 AWG min wire. To connect a BRI line: Connect the RJ-45 cable to the device's BRI port 1 on the rear panel (it's labeled S2 / BRI). AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 7 The device is shipped with the AC/DC power adapter shown Figure 2-5 which also supports interchangeable plugs to suite the electrical wall outlet type requirement of the country in which the device is being installed. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
- Page 8 Figure 2-6: Inserting Plug into Power Adapter Insert the DC plug (5) located at the end of the power cord (4) of the power adapter into the device's power socket located on the rear panel. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 9 Press in the power button; the device receives power, indicated by the lighting of the Power LED on the front panel. To power off the device: Press out the power button; the device powers off, indicated by the Power LED going off. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
-
Page 10: Mediant 500 Pri Media Gateway
Power switch (O is off; I is on). 100-240V~50-60Hz 0.8A Max. Three-prong AC power supply entry. 2.2.1 Cabling 2.2.1.1 Grounding the Device The device must be connected to earth (grounded) using an equipment-earthing conductor. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... - Page 11 Figure 2-11: Cabling the Ethernet Ports Connect the other end of the cable to the Gigabit Ethernet network. 2.2.1.3 Connecting to an ISDN PRI (E1/T1) Trunk This section shows how to cable the device's E1/T1 (PRI) trunk interface. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
- Page 12 Connect the plug at the other end of the AC power cord to a standard electrical outlet. Press the power switch to on (I) position so that the device receives power; the POWER LED on the front panel is lit green. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 13: Mediant 800B Media Gateway
Failure / disruption in the AC power supply or the power is currently not being supplied to the device through the AC power supply entry. 2.3.2.2 Operational Status LEDs The STATUS LED indicates the operating status. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 14 For Sweden: "Apparaten skall anslutas till jordat uttag." To ground the device: Connect an electrically earthed strap of 16 AWG wire (minimum) to the chassis' grounding screw (located on the rear panel), using the supplied washer. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 15 T1 or E1 ports to the PSTN. To connect the E1/T1 trunk interface: Connect the E1/T1 trunk cable(s) to the device’s E1/T1 port. Connect the other end of the trunk cable to your PBX switch. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
- Page 16 Figure 2-19: Connecting to the Power Supply Connect the plug at the other end of the AC power cord to a standard electrical outlet. After cabling and powering up, the POWER LED on the front panel lights up green. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 17: Connecting To The Management Interface
To connect to the embedded Web server: Connect Port 1 (leftmost LAN port) located on the front panel directly to the network interface of your computer, using a straight-through Ethernet cable. Figure 3-1: Connecting to the Embedded Web Server BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 18 No Access (see the figure below). In addition (or alternatively), change its default login password to a hard-to-hack string. Figure 4: Changing Access Level to No Access of Default Monitor User AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 19: Configuring The Device
On the toolbar, click Device Actions and then choose Software Upgrade Wizard. Figure 4-1: Start Software Upgrade Wizard Screen Click Start Software Upgrade; the wizard starts, prompting you to load a .cmp file: BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 20 Click Load File; the device installs the .cmp file. A progress bar displays the loading process status and a message informs you when file load successfully completes. Figure 4-3: Software Upgrade Wizard – CMP File Loading Progress Bar Select the following upgrade option: • System Reset Upgrade AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 21 Select it and click Load File; the device loads the tones file. Figure 4-5: Software Upgrade Wizard – Loading the CPT File Click Next until the last wizard page appears (the FINISH button is highlighted in the left pane): BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
- Page 22 Enter your login username and password (Admin, Admin respectively), and then click Login; a message box appears informing you of the new .cmp file version. Click OK; the Web interface becomes active, reflecting the upgraded device. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 23: Step 2: Configure A Network Interface For The Device
(public address) IP-Address (e.g. ITSP) RTP service: 6000-7000 / (e.g. ITSP) Local-DMZ- <any> SIP service: 5060 / UDP Global <any> <as original> IP-Address Address (e.g. ITSP) RTP service: 6000-7000 / (e.g. ITSP) (public address) BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 24 This only occurs at the end of the configuration process. The figure below shows an example of a configured IP network interface. Figure 4-8: Example of a Configured Network Interface in IP Interfaces Table AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 25 Open the SIP General Parameters page (Configuration tab > VoIP menu > SIP Definitions > General Parameters). Figure 4-9: SIP General Parameters In the 'NAT IP Address' field, enter the NAT IP address in dotted-decimal notation. Click Submit. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
-
Page 26: Step 3: Configure Pstn Trunk Settings
Q931 Layer Response Behavior 0x8000000 Outgoing Calls Behavior Incoming Calls Behavior 0x11000 Select Receiving of Overlap Dialing Local Receiving Figure 4-10: Configuring BRI PSTN Interface Repeat for all BRI ports available on the device (Mediant 500L) AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... - Page 27 E1 Framing MFF CRC4 Ext (according to remote Framing Method side, PBX or PSTN, definitions) Network side or User side ISDN Termination Side Figure 4-11: Configuring the PRI PSTN Interface Repeat for PRI trunk #2 if applicable (Mediant 800B) BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
-
Page 28: Step 4: Configure General Sip Parameters
From the 'Subscription Mode' dropdown, select Per Gateway. In the 'User Name' field, configure Trunk Group Pilot User. In the 'Password' field, configure Trunk Group Pilot User Password. From the 'Registration Mode' dropdown, select Per Gateway. Click Submit. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... -
Page 29: Step 5: Configure Trunk Group Parameters
2 to be used with PSTN fallback Trunk Group 4. See the appendix for more information on how to configure PSTN fallback. If PSTN fallback is not used, the Trunk Group 4 setting can be discarded. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 30 Registration Mode for registering Trunk Groups To configure the Trunk Group Settings: Open the Trunk Group Table page (Configuration tab > VoIP > GW and IP to IP > Trunk Group > Trunk Group Settings). AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 31 BroadCloud service to Trunk Group 4. See appendix for more information on how to configure PSTN fallback. If PSTN fallback is not used, the Trunk Group 4 route rule (second row) setting can be discarded. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
-
Page 32: Step 6: Configure The Number Of Digits To Be Present To The Pbx
2) strips digits from the right of the number, 3) retains the defined number of digits, 4) adds the defined prefix, and then 5) adds the defined suffix. The following procedure describes how to configure number manipulation rules in the Web interface. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... - Page 33 ‘To’ SIP header and present only 4 digits to the PBX. In this case, when destination number has prefix +44 (e.g., +442079930256), all digits will be stripped except 4 from the right (0256). BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
-
Page 34: Step 7: Check The Sip Trunk Registration Status
Check WAN IP address configuration (Configuration tab > VoIP > Network > IP • Interface Table) • Check proxy (SIP Trunk) configuration (Configuration tab > VoIP > SIP Definitions > Proxy & Registration) AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... -
Page 35: Step 8: Secure Device Access
Ports 161 - SNMP access If future remote management is required, first ask the end customer’s IT administrator to open the appropriate port (e.g., HTTP or HTTPS port) in order to manage the device. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... -
Page 36: Step 9: Save The Configuration, Connect To Dmz
Section 4.2, Step 2. At this point, disconnect your PC from the device and connect the Ethernet cable from the device’s port 1 (see Section 2) to the DMZ port provided by the local firewall: Figure 4-21: Connecting the Device to DMZ AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393... -
Page 37: A Optional Tdm Pstn Fallback If Wan Fails
To configure Tel-to-IP or Outbound IP Routing Rules: Open the Outbound IP Routing Table page (Configuration tab > VoIP > GW and IP to IP > Routing > Tel to IP Routing). BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 38 BroadCloud service, to Trunk Group 4. If PSTN fallback is not used, the Trunk Group 4 route rule (second row) setting can be discarded. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 39: B Troubleshooting
To enable the device to send the error messages (e.g. Syslog messages) to the CLI console. Use the following commands: Start the syslog on the screen by typing: debug log Enable SIP call debugging debug sip 5 Stop Syslog on the screen by typing: no debug log BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway... - Page 40 BroadCloud SIP Trunk This page is intentionally left blank. AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
-
Page 41: C Audiocodes Ini File
Quick Setup Guide C. AudioCodes ini File AudioCodes ini File Shown below is the ini configuration file of the Mediant BRI Gateway, corresponding to the Web-based configuration described in Section Note: To load and save an ini file, use the Configuration File page (Maintenance tab >... - Page 42 ;ISPRACKREQUIRED is hidden but has non-default value ENABLEEARLYMEDIA = 1 ISDNRXOVERLAP = 1 PROXYNAME = 'interop.adpt-tech.com' SIPGATEWAYNAME = 'interop.adpt-tech.com' USERNAME = '8325624846' ;PASSWORD is hidden but has non-default value ISFALLBACKUSED = 1 ALWAYSSENDTOPROXY = 1 AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 43 Quick Setup Guide C. AudioCodes ini File KEYBLINDTRANSFER = '*12' DISCONNECTONBROKENCONNECTION = 0 ASSERTEDIDMODE = 1 SUBSCRIPTIONMODE = 1 HOLDFORMAT = 1 REGISTRARNAME = 'interop.adpt-tech.com' USERAGENTDISPLAYINFO = 'Mediant 800 BRI GW' SESSIONEXPIRESMETHOD = 1 LOCALISDNRBSOURCE = 1 DNSQUERYTYPE = 1...
- Page 44 PREFIX_MeteringCode, PREFIX_DestPort, PREFIX_SrcIPGroupID, PREFIX_DestHostPrefix, PREFIX_DestIPGroupID, PREFIX_SrcHostPrefix, PREFIX_TransportType, PREFIX_SrcTrunkGroupID, PREFIX_DestSRD, PREFIX_CostGroup, PREFIX_ForkingGroup, PREFIX_CallSetupRulesSetId; PREFIX 0 = "*", "*", "127.0.0.1", "*", 0, 255, 5060, -1, "*", -1, "*", - 1, -1, -1, "", -1, -1; AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 45 Quick Setup Guide C. AudioCodes ini File [ \PREFIX ] [ TrunkGroup ] FORMAT TrunkGroup_Index = TrunkGroup_TrunkGroupNum, TrunkGroup_FirstTrunkId, TrunkGroup_FirstBChannel, TrunkGroup_LastBChannel, TrunkGroup_FirstPhoneNumber, TrunkGroup_ProfileId, TrunkGroup_LastTrunkId, TrunkGroup_Module; TrunkGroup 0 = 1, 0, 1, 2, "", 0, 0, 1; TrunkGroup 1 = 4, 1, 1, 2, "", 0, 1, 1;...
- Page 46 FORMAT ResourcePriorityNetworkDomains_Index = ResourcePriorityNetworkDomains_Name, ResourcePriorityNetworkDomains_Ip2TelInterworking; ResourcePriorityNetworkDomains 1 = "dsn", 1; ResourcePriorityNetworkDomains 2 = "dod", 1; ResourcePriorityNetworkDomains 3 = "drsn", 1; ResourcePriorityNetworkDomains 5 = "uc", 1; ResourcePriorityNetworkDomains 7 = "cuc", 1; [ \ResourcePriorityNetworkDomains ] AudioCodes Mediant BRI/PRI Gateway Document #: LTRT-12393...
- Page 47 Quick Setup Guide C. AudioCodes ini File This page is intentionally left blank. BroadCloud SIP Trunk AudioCodes Mediant BRI/PRI Gateway...
