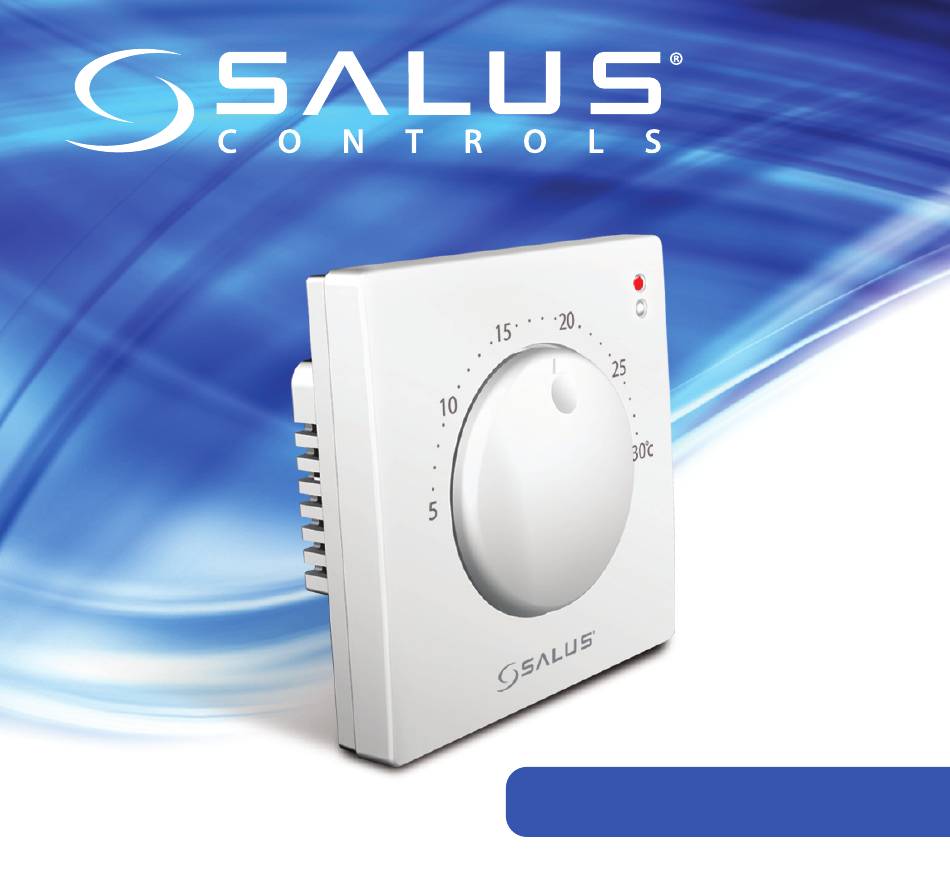

- Page 1 Dial Thermostat Models: VS05 I N S TA L L E R / U S E R M A N U A L...
-
Page 2: Table Of Contents
System grouping and communication. Box Contents Dial Thermostat Models: VS05 I N S TA L L E R / U S E R M A N U A L 1 x Installer / User manual Fixing screws VS05 VS05 Installer Manual... -
Page 3: Product Compliance
Safety Information Use in accordance with the regulations Thank you for purchasing the SALUS room The SALUS VS05 is to be used for room thermostat VS05. The VS05 is a 230V dial control of hot water heating systems thermostat which offers simple temperature Inside the house control of your heating system. -
Page 4: Installer Parameters
Product Compliance & Safety Information Sources of danger Installer parameter settings The thermostat must be disconnected from mains The SALUS VS05 is equipped with installer paramter section supply before removing the cover. this must only be entered by the installer or comptent 230V AC Person. -
Page 5: Mounting Position And Installation
To ensure trouble free operation and efficient control, the unit is best positioned in a draft free area and at 130cm from the floor. Do not position the thermostat near any heat source, behind curtains, direct sunlight or an area of high humidity. Not to be positioned on an exterior wall. VS05 Installer Manual... -
Page 6: System Grouping And Communication
The VS05 will follow instructions of the VS10 Bringing central control of features such as Time control, Holiday & Party functions as well as frost control. The VS05 can leave or re-enter group control at the slide of a switch. - Page 7 The group selection communication cable must correspond to the group terminals on the KL10 WC. Please refer to note xx and the KL10 installation guide. Group 1 – For Example Down stairs Group 2 – For Example upstairs SALUS KL10 VS05 Installer Manual...
- Page 8 Installation – Thermostat Mounting Gently remove front housing. Wall Mounting For wall mounting, mark and mount the rear case to the wall. The VS05 is suitable for wall boxes with a centre hole distance of : 60mm VS05 Installer Manual...
- Page 9 Installation – Terminal Connections Understanding your terminal connections Power Terminals 230 Vac Used for supplying power to the Rear of VS05 unit and switched output. Sensor Terminals Can be used for external AIR, Floor sensor when configured as thermostat. Can also be used for Cylinder thermostat when calling for HW.
- Page 10 Installation – Thermostat Connections Optional communication connection 12VBC xxxxxxxxxxxxx LABEL & TEXT xxxxxxxxxxx VS05 Installer Manual...
- Page 11 Check that the wiring is completed for: Power Terminals Sensor Terminals (if applicable) Communication Terminals You are ready to secure the rear housing to the wall box Please use the screws provided Ensure the orientation arrow is pointing upwards. VS05 Installer Manual...
- Page 12 Installation – parameter setting VS05 Installer Manual...
-
Page 13: Parameter Settings
5 minute pulse on actuator once a week, 24 hours- 7 days. PWM output to drive actuator open/close PROBE Need help Actuator can be normally closed/normally open. Actuator Subject to installer jumper selection Setback Need help VS05 Installer Manual... -
Page 14: User Interface
User Interface Slide switch must be in “A” position to follow group master VS10 LED Indication Temperature Adjustment 5-30 Mode Selection VS05 Installer Manual... -
Page 15: Led Indication When Following Group Master
The group master will be in. For more details on VS10 please refer to VS10 manual If you do not want a VS05 to follow the group master VS10 please select see page XX VS05 Installer Manual... - Page 16 Reduced/night time mode. The group master will show : For more details on VS10 please refer to VS10 manual If you do not want a VS05 to follow the group master VS10 please select see page XX VS05 Installer Manual...
- Page 17 The group master will be in: For more details on VS10 please refer to VS10 manual If you do not want a VS05 to follow the group master VS10 please select see page XX VS05 Installer Manual...
- Page 18 The top LED will illuminate when room termperature falls below your required temp. Green LED means that the unit is calling for heat. To return the VS05 to the group (if applicable) move the slide switch to ‘A’ . VS05 Installer Manual...
- Page 19 LED indication when following group master Slide switch “*” position to will not follow group master VS10 and will longer be part of the group. The VS05 will be in permanent frost protection. Blue LED indicates the units is in frost protection mode.
-
Page 20: Vs05
POWER SOURCE 230Vac +/- 10%,50/60Hz L,N AC voltage Monitor AC POWER DETECTION CONTROL SWITCH AND RATING Output rating 5A for SL output Type N.O Power relay Maximum 3A at SL terminal Loading Commconnection 12VDC Input AGENCY APPOVED VS05 Installer Manual... - Page 21 VS05 Installer Manual...
- Page 22 VS05 Installer Manual...
- Page 23 SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 24 SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Issue Date: April 2014...
