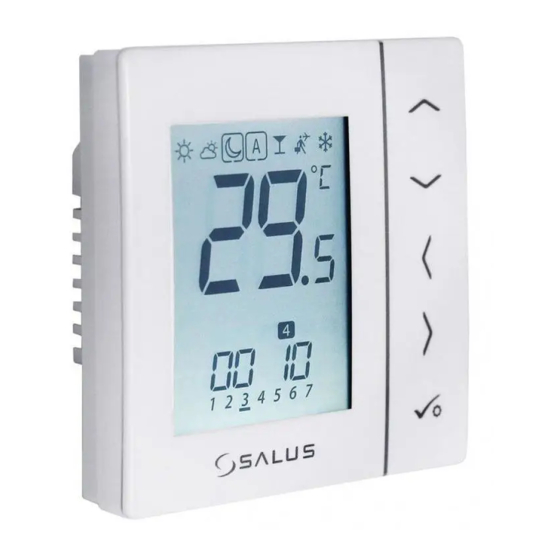

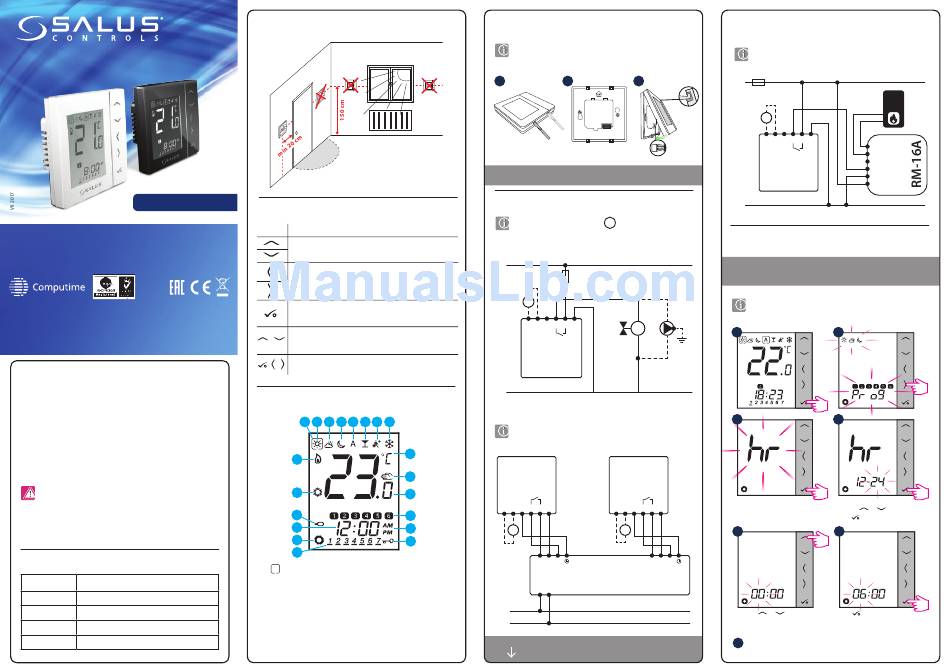

Salus VS30W Installation Manual

Programmable, wired thermostat with digital display
for the control of temperature in UFH & RAD systems
Model: VS30W (white), VS30B (black)
Installation Manual
DISTRIBUTOR OF SALUS CONTROLS: Importer:
QL CONTROLS Sp. z o.o., Sp. k. SALUS Controls plc
Rolna 4, Salus House, Dodworth Business Park
43-262 Kobielice, Whinby Road, Barnsley S75 3SP,
Poland United Kingdom
www.salus-controls.eu
SALUS Controls is a member of the Computime Group
Maintaining a policy of continuous product development SALUS Controls plc reserve the right to
change specification, design and materials of products listed in this brochure without prior notice.
Introduction
The VS30 thermostat controls temperatures of individual heating zone
in underfloor heating systems. Thermostat allows for significant savings
thanks to the possibility of maximum reduction the set temperature.
The full version of the manual in PDF format is available on the website
www.salus-controls.eu
Product Compliance
This product complies with the following EU Directives: Electromagnetic
Compatibility 2014/30/EU, Low Voltage Directive 2014/35/EU and
RoHS 2011/65/EU. Full information is available on the website
www.saluslegal.com
Safety Information
Use in accordance with national and EU regulations. Use the device only as
intended, keeping it in a dry condition. The product is for indoor use only.
Installation must be carried out by a qualified person in accordance with
national and EU regulations.
Terminals description
Terminal Description
L,N Power Supply 230 V AC
NSB Night SetBack (output 230 V AC)
SL Switched output (230 V AC)
S1, S2 External temperature sensor
Proper thermostat placement
M M
Button Functions
Button Function
Increasing / decreasing temperature or value
Selection of the operating mode, switching between values
Short press - selection confirmation
Long press - entry to or exit from the menu
Long press causes blocking or unlocking the thermostat
+
+ + Long press enters the installer mode
LCD Icon description
1 2 3 4 5 6 7 8
9
20
10
19
11
18 12
17
13
16
14
15
1. Current active mode 11. Current / set temperature
2. Comfort mode 12. Program number
3. Standard mode 13. AM/PM
4. Economic mode 14. Key lock
5. Automatic mode 15. Day of the week
6. PARTY mode 16. Settings
7. Holiday mode 17. Time
8. Frost protection mode 18. Additional temp. sensor
19. Cooling
9. Temperature unit
20. Heating
10. Manual mode / temp. override
Installation
The VS30 thermostat has been designed for flush mounting in
a standard electrical box with a diameter of 60 mm.
1 2 3
Note: Use the rear plate of the VS30 thermostat only with this model.
Wiring diagrams
T
An additional temperature sensor is optional.
VS30 thermostat in connection with actuator or pump
AC 230V
L
T
S1 S2 SL L N
NSB
M
OR
OUTPUT
VS30
N
VS30 thermostat in connection with wiring centre
In this diagram, the VS30 thermostat manages the NSB function,
more details about NSB function can be found on the next page.
VS35 VS30
INPUT OUTPUT
S1 S2 SL L N S1 S2 SL L N
NSB NSB
T T
L N SL L N SL
KL08NSB
KL06
L N
AC 230V
L
N
Note: In the KL06 wiring centre, the SL terminal is marked with an arrow
icon .
VS30 thermostat in connection with a boiler with a "NO" voltage free
terminal through the RM-16A relay
NSB function is not active.
AC 230V
L
T
S1 S2 SL L N
NSB
OUTPUT
NO
OUTPUT
COM
VS30
NC
SL
INPUT 230 V AC
N
POWER SUPPLY
L 230 V AC / 50 Hz
N
Time and date setting
Note: During the first start-up, thermostat will automatically start time and date
setting - in this case go to step 4.
Press any button to highlight the screen, then follow the steps below:
1 2
3 sek.
3 4
Select the time format
with or buttons.
Press to confirm the changes.
5 6
Use or buttons Press to confirm the changes.
to set the hour.
7
Similarly to steps 5 and 6, set the minutes, year, month and day.
