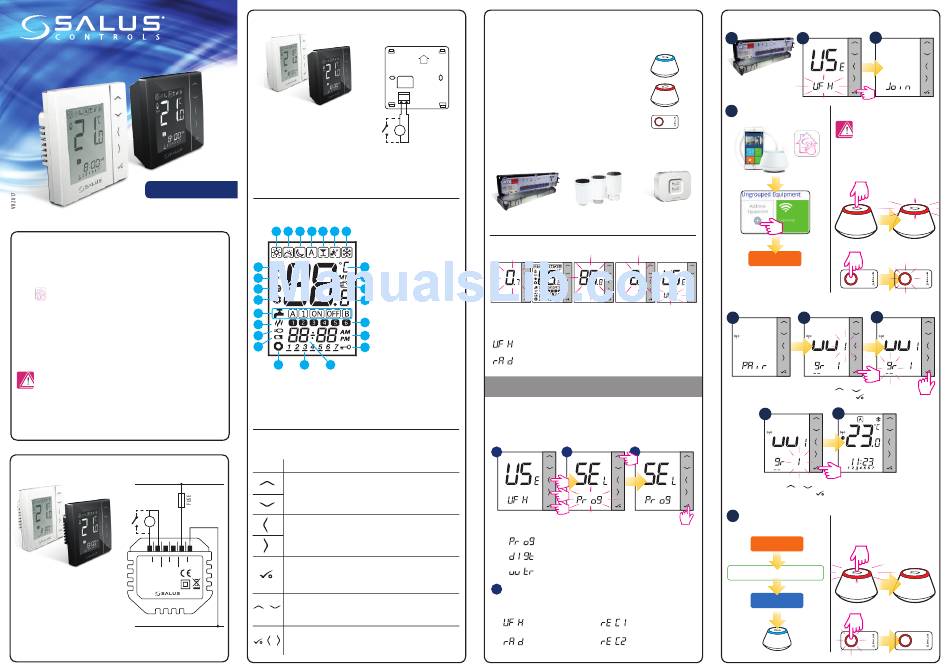

Salus VS10WRF Quick Manual

Digital programmable wireless 4 in 1 thermostat
Models: VS10WRF, VS10BRF,
VS20WRF, VS20BRF
Quick Guide
for 14.4 MCU,
7.3 (VS20..RF), 10.9 (VS10..RF) ZigBee software version
Introduction

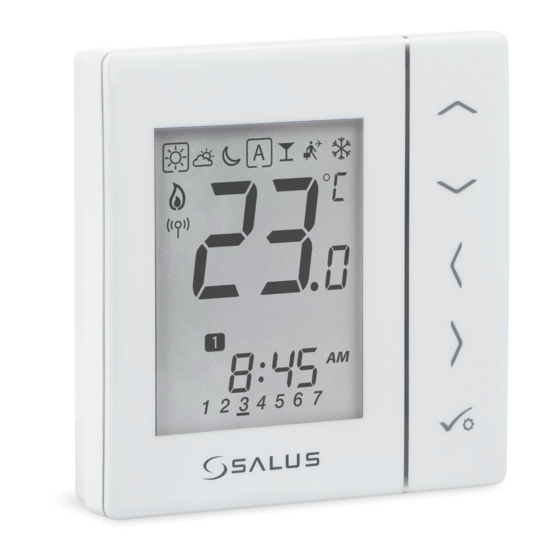

VS10..RF / VS20..RF is a room temperature thermostat that is used for wireless
control of iT600 series devices such as: KL08RF wiring centre, TRV radiator
valve and RX10RF boiler receiver. In combination with Universal Gateway
UGE600 this regulator can be controlled over the Internet using SALUS Smart
Home app (Online mode). Without Internet connection (Offline mode)
thermostat works locally, but its communication with other devices must be
done through the coordinating unit - CO10RF. Full version of the PDF manual
instruction is available on the website www.salus-controls.eu
Product compliance
EC Directives: 2014/30/EU, 2014/35/EU, 2014/53/EU i 2011/65/EU.
Full information is available on the website www.saluslegal.com
Safety Information
Use in accordance to national and EU regulations. Use the device as
intended, keeping it in dry condition. Product for indoor use only.
Installation must be carried out by a qualified person in accordance to
national and EU regulations.
Wiring diagram - VS10WRF (white), VS10BRF (black)
L
230V AC
S
T
N
2 1 -- -- L
230VAC
Probe
VS10WRF
Power Supply: 230V AC (L, N terminals)
1, 2 Terminals:
T45 IP30
- external air or floor temperature sensor
- external contact (occupancy sensor)
- external hot water thermostat
N
(only with KL10RF configuration)
Montage: 60mm concealed box
Wiring diagram - VS20WRF (white), VS20BRF (black)
UP
S1 S2
Power Supply: 4xAAA (alkaline batteries)
S
S1, S2 Terminals:
T
- external air or floor temperature sensor
- external contact (occupancy sensor)
- external hot water thermostat
(only with KL10RF configuration)
Montage: surface mounting (need to remove back cover)
LCD Icon description
1. Comfort temperature
1 2 3 4 5 6 7
2. Standard temperature
3. Economic temperature
4. Automatic mode
5. PARTY mode
25 8
6. Holiday mode
24 9
7. Antifrost mode
23 10
8. Temperature unit
22 11 9. Group controller
10. Manual mode / override temp.
21
11. Current / set temperature
12
20
12. Program number
19 13
13. AM / PM
14. Lock function
18 14
15. Clock
17 16 15
16. Day indicator 21. Modes for Hot Water (KL10RF only)
17. Settings 22. Cooling mode ON
18. Low battery indicator 23. Internet connection indicator
19. External temperature sensor 24. Gateway wireless connection
20. Hot water heating 25. Heating mode ON
Button Functions
Button Function
Increasing/decreasing temperature or other value
Selecting the operating mode or switching between values
Short press - approve selection
Hold - enter / exit to or from the menu
+
Hold down these buttons to lock or unlock the keyboard
+ + Hold down these buttons to enter installer mode
Select the type of ZigBee coordinator:
Choose a ZigBee coordinator and prepare it to work with iT600 series
devices:
• Online - connected to the Internet via the UGE600 gateway
or
• Offline -the ability to connect to the Internet using
the UGE600 gateway
or
• Offline - without Internet connection with CO10RF
coordinator
Firstly with the selected coordinator need to install devices, which
will be controlled by thermostat. Pairing method of each devices is
described in the manual instruction of a particular device.
Thermostatic radiator
RX10RF
KL08RF
valve (TRV)
Installation - first start up
*Numbers 88.8 and 8.8 MCU software ZigBee software
relate to the software version
Thermostat starts up in a simplified configuration mode. You can choose to pair with:
- KL08RF or KL10RF wiring centre (underfloor heating)
- Thermostatic radiator valve (radiator heating)
Note: Thermostat is set by default as programmable (weekly).
Installation - extended configuration
If the simplified configuration is not suitable, run the expanded configuration by
holding 3 keys as below until SEL PROG appears:
1 2 3
Set the theromstat type:
Programmable (weekly)
Daily
Hot Water timer (works only with KL10RF)
4
After approval of the type of thermostat, choose the type of device to
cooperation with:
Underfloor heating RX10RF in RX1 mode
Thermostatic radiator RX10RF in RX2 mode
valve (radiator heating)
Installation - pairing with KL08RF / KL10RF wiring centre
1 2 3
Install the wiring centre
according to the instructions
attached to the product.
Online Offline
4
WARNING!
Do not use CO10RF coordinator
with UGE600 simultaneously.
SALUS
Smart Home
Open the ZigBee network
5 sec
OR
Scan for equipment 5 sec
7
5 6
Enter the wiring centre Grouping
number with or , (Offline only)
Confirm your choice by .
5 6
Enter the zone number
with or ,
Confirm your choice by .
11
Online Offline
Close the ZigBee network
Connect equipment
5 sec
Name this equipment
Living room
Finish
OR
5 sec
3
