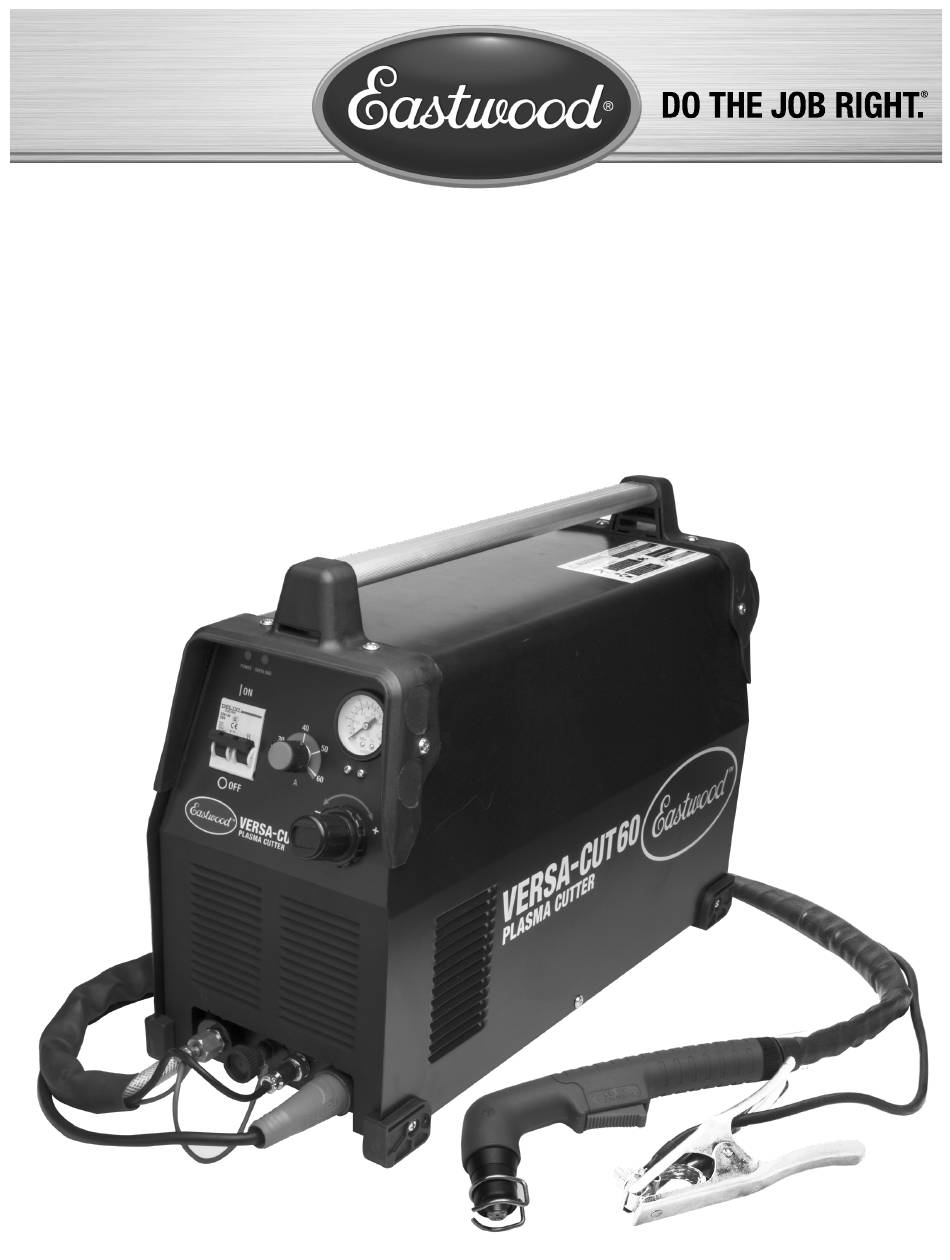

- Page 1 Item #14099 VERSA-CUT 60 PLASMA CUTTER ASSEMBLY & OPERATING INSTRUCTIONS...
-
Page 2: Specifications
STATEMENT OF LIMITED WARRANTY The Eastwood Company (hereinafter “Eastwood”) warrants to the end user (purchaser) of all new welding and cutting equipment (collectively called the “products”) that it will be free of defects in workmanship and material. This warranty is void if the equipment has been subjected to improper installation, improper care or abnormal operations. -
Page 3: Safety Information
IMPORTANT NOTE These instructions are intended only to provide the user with some familiarity of the Eastwood Cut 60 Plasma Cutter. Electric arc cutting is a highly complex procedure with many variables. If you have no experience with electric arc cutting, it is extremely important to seek the advice of someone experienced in electric arc cutting for instruction, enroll in a local technical school welding course or study a comprehensive how-to DVD and obtain a good quality reference book on welding plasma cutting and welding as there is a moderate learning curve necessary before achieving proficiency. - Page 4 • Electric plasma cutting heats metal and tools to temperatures that will cause severe burns! • Use protective, heat resistant gloves and clothing when using Eastwood or any other plasma cutting equipment. Never touch a cut work surface, torch tip or nozzle until they have completely cooled.
-
Page 5: Required Items
• Plasma Cutting Glasses, Faceshield, or Welding Helmet to provide eye protection during cutting operations. POWER REQUIREMENTS The Eastwood Versa-Cut Plasma Cutter is supplied with the popular NEMA 6-50P plug, requiring a NEMA 6-50R receptacle. BEFORE YOU BEGIN Remove all items from the box. Compare with list below to make sure unit is complete. -
Page 6: Operation
• Use extreme caution when plasma cutting coated materials including but not limited to: cadmium plated, galvanized, lead based paints. HOT METAL AND TOOLS WILL BURN! • Electric plasma cutting heats metal and tools to tempera- tures that will cause severe burns! Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com... - Page 7 This minimizes the cleanup of the edge with a grinder or file. Another excellent technique is to practice cutting your initials out of a piece of steel. Versa-Cut 60 Plasma Cutter - Air Pressure and Amperage Settings* Metal Thickness 1/32”...
-
Page 8: Care And Maintenance
• Always store the unit in a safe, clean and dry environment. TORCH MAINTENANCE The Eastwood Versa-Cut 60 Plasma Cutter has a number of consumable parts that will need to be replaced over time. If wear or slag build up is noticed on... - Page 9 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 10 NOTES Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
-
Page 11: Troubleshooting
Plasma ARC Cannot be Started Air Pressure Too High Lower air pressure to 60 PSI or below. The Pilot ARC is Spattering Nozzle Worn Replace the nozzle and electrode in the torch. To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 12: Replacement Items
Welding Gloves - Large If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/14099manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.343.9353...
