Endress+Hauser TH15 Compact Instructions

Performance Characteristics (continued)
Maximum measured error (Pt100 / IEC 60751)
Class max. Tolerances (°C)
A ± (0.15 + 0.002 · |t|*), temperature range: -100 °C to 450 °C
B ± (0.3 + 0.005 · |t|*), temperature range: -200 °C to 600 °C
* |t| = absolute value °C. For measurement errors in °F, calculate using equation above in °C, then multiply the outcome by 1.8.
Insulation resistance Insulation resistance between terminals and probe
sheath, test voltage 250 V.
• ≥ 100 MΩ at 77 °F (25 °C)
• ≥ 10 MΩ at 572 °F (300 °C)
Supplementary documentation
All important Temperature Operating Instructions, particularly with regard to head
and field transmitters are available on CD–ROM, find enclosed or order by order
number: SONDTT-AG.
www.addresses.endress.com
KA00195R/24/EN/13.12
71207990

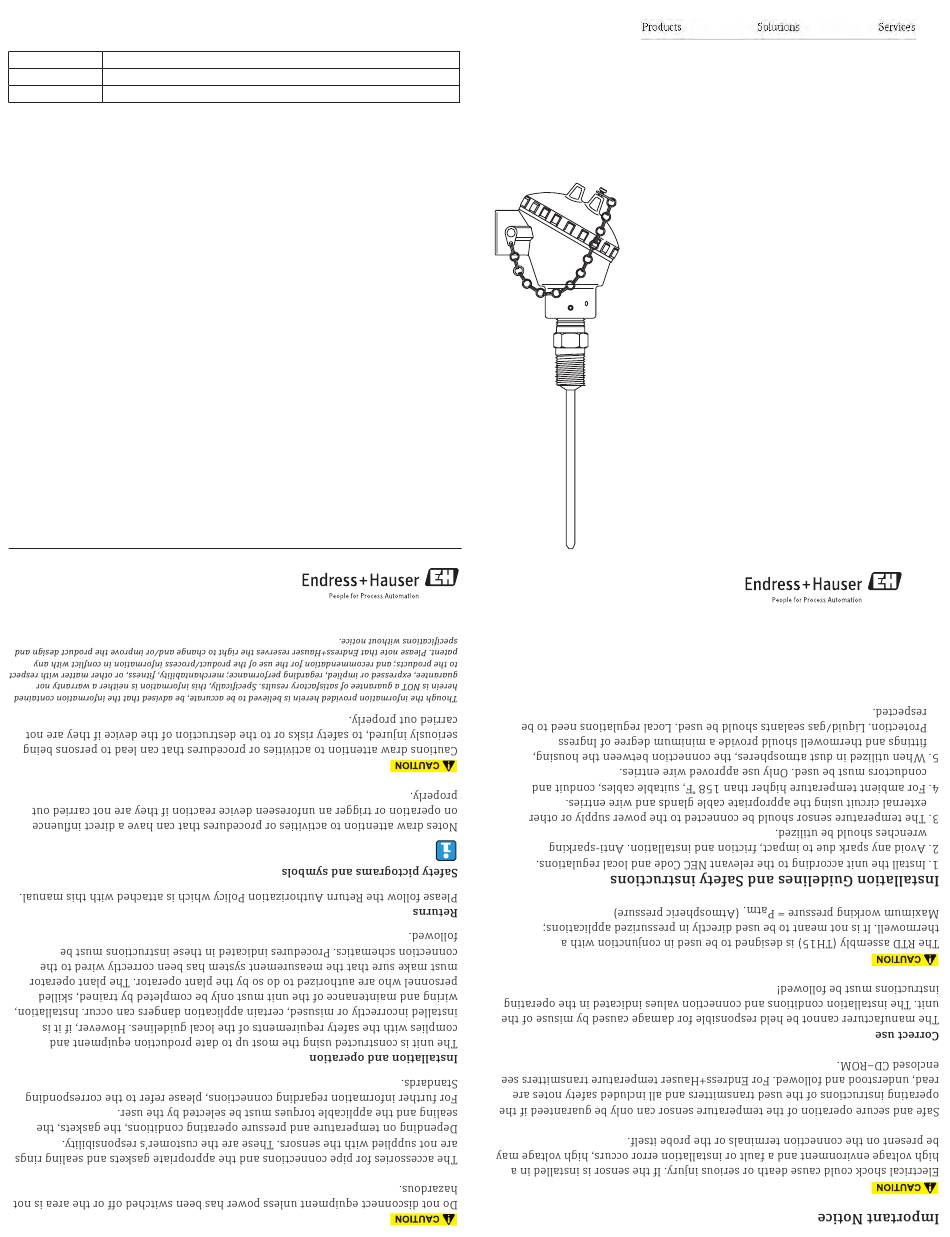

Compact Instructions
RTD Assembly TH15
Measuring System
RTD assembly TH15 with spring loaded
insert.
The Pt100 RTD is specifically designed for
use in two different process temperature
ranges:
Low range RTD -58 °F to 392 °F;
high range RTD -328 °F to 1112 °F.
