Endress+Hauser Proline t-mass T 150 Brief Operating Instructions

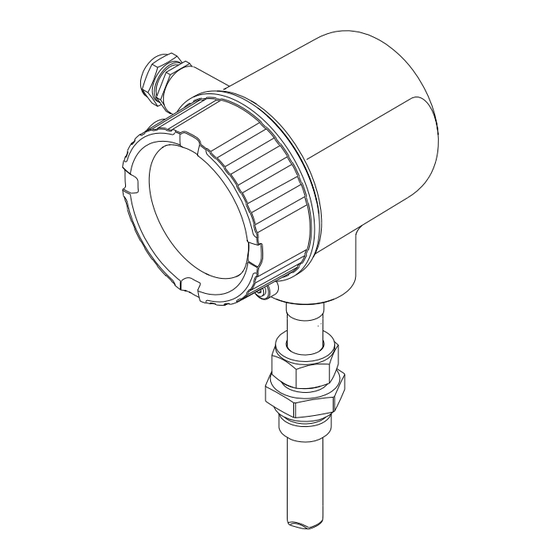

Thermal mass flowmeter
Hide thumbs Also See for Proline t-mass T 150:
Table of Contents

Advertisement

Quick Links

Download this manual
KA01155D/06/EN/01.13
71237441
Products
Brief Operating Instructions
Proline t-mass T 150
Thermal mass flowmeter
These Instructions are Brief Operating Instructions; they do not
replace the Operating Instructions included in the scope of
supply.
For detailed information, refer to the Operating Instructions
and other documentation on the CD-ROM provided or visit
"www.endress.com/deviceviewer".
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline t-mass T 150

Summary of Contents for Endress+Hauser Proline t-mass T 150

  • Page 1 Solutions Services KA01155D/06/EN/01.13 71237441 Brief Operating Instructions Proline t-mass T 150 Thermal mass flowmeter These Instructions are Brief Operating Instructions; they do not replace the Operating Instructions included in the scope of supply. For detailed information, refer to the Operating Instructions and other documentation on the CD-ROM provided or visit "www.endress.com/deviceviewer".

  • Page 2: Table Of Contents

    Table of contents Proline t-mass T 150 Table of contents Document information ............3 Symbols used .

  • Page 3: Document Information

    Proline t-mass T 150 Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. A0011189-EN WARNING! WARNING This symbol alerts you to a dangerous situation.
  • Page 4 Document information Proline t-mass T 150 1.1.3 Tool symbols Symbol Meaning Flat blade screwdriver A0011220 Allen key A0011221 Open-ended wrench A0011222 1.1.4 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred.

  • Page 5: Basic Safety Instructions

    Proline t-mass T 150 Basic safety instructions Symbol Meaning A, B, C, ... Views A-A, B-B, C-C, ... Sections Flow direction A0013441 Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 Basic safety instructions...

  • Page 6: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 7: Product Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions.

  • Page 8: Product Description

    Product description Proline t-mass T 150 Product description Product design A0017196 Electronics compartment cover Display module Terminal block Electronics module Cable gland Transmitter housing Sensor S-DAT Endress+Hauser...

  • Page 9: Incoming Acceptance And Product Identification

    A0013697 • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! In such cases, the technical documentation is available via the Internet or via the Endress +Hauser Operations App, see the "Device documentation"...

  • Page 10: Product Identification

    • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.

  • Page 11: Storage And Transport

    Enter the serial number (Ser. no.) of the device: see nameplate (→  1,  10).  All the associated documentation is displayed. Endress+Hauser Operations App The Endress+Hauser Operations App is available both for android smart phones (Google Play store) and for iPhones and iPads (App Store). Via the serial number: Launch the Endress+Hauser Operations App.

  • Page 12: Packaging Disposal

    Storage and transport Proline t-mass T 150 Packaging disposal For detailed information about disposing of the packaging materials, refer to the Operating Instructions for the device on the CD-ROM provided Endress+Hauser...

  • Page 13: Installation

    Proline t-mass T 150 Installation Installation Installation conditions For mechanical reasons and to protect the pipe, support is recommended for heavy sensors (e.g. with a hot-tap retractable assembly). 6.1.1 Mounting position Orientation The direction of the arrow on the sensor body helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
  • Page 14 Installation Proline t-mass T 150 Further information → ISO standard 14511 A0005103 Correctly aligned flanges and seals Insertion depth Standard version Order code for "Insertion Length", option L5 "110mm 4"" and L6 "330mm 13"" NOTICE Metal clamping ferrules undergo plastic deformation during the initial installation.
  • Page 15 Proline t-mass T 150 Installation  NOTE! Mounting for the first time: Tighten thread adapter nut of the coupling hand tight. Observe the maximum socket height D.  NOTE! The pipe wall thickness (B) and socket height (D) may not exceed the permitted height.
  • Page 16 Installation Proline t-mass T 150 Preconditions A0022058 Fixed insertion depth 8 mm (0.31 in) ±2 mm (0.08 in) Pipe wall thickness Socket height Seal thickness Length Socket internal diameter Determine pipe wall thickness (B). If a Tri-Clamp process connection is used, determine seal thickness (E).
  • Page 17 Proline t-mass T 150 Installation Order code for "Material of insertion pipe; sensor", option CD "….. inch customized length, 0.8μm, mechanically polished" and option CE "….. inch customized length, 0.4μm, mechanically polished" NOTICE When ordering the customized length, it is necessary to declare the sensor length with the following decimal accuracies: ‣...
  • Page 18 Installation Proline t-mass T 150 If a Tri-Clamp process connection is used, determine seal thickness (E).  NOTICE! The pipe wall thickness (B), socket height (D) and sealing thickness (E) may not exceed the permitted height. B + D + E may not be greater than 77 mm (3.03 in).
  • Page 19 Proline t-mass T 150 Installation Alignment with flow direction Insertion version 90° ( 7°) ± A0022051 Check and ensure that the sensor on the pipe is aligned at a 90° angle to the direction of flow (as shown in the graphic).
  • Page 20 Installation Proline t-mass T 150 35 × DN 5 × DN 20 × DN 5 × DN 20 × DN 5 × DN 35 × DN 5 × DN 50 × DN 5 × DN 35 × DN 5 × DN...

  • Page 21: Mounting The Measuring Device

    Proline t-mass T 150 Installation WARNING The sensor is exposed to high temperatures. Risk of burns from hot surfaces or leaking medium! ‣ Before commencing work: allow the system and measuring device to cool to a safe temperature. Thermal insulation The maximum possible thickness of the thermal insulation layer is: Order code for "Insertion Length", option L5 "110mm 4"": 100 mm (3.94 in)
  • Page 22 Installation Proline t-mass T 150 6.2.3 Mounting the measuring device WARNING Danger due to improper process sealing! ‣ Ensure that the gaskets are clean and undamaged. ‣ Ensure that the correct sealing material has been used (e.g. Teflon tape for NPT ¾").
  • Page 23 Proline t-mass T 150 Installation Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards.  A0013964 6.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned clockwise or counterclockwise to 4 indexed positions by a maximum of 2×...

  • Page 24: Post-Installation Check

    Installation Proline t-mass T 150 6.2.5 Turning the display module A0017228 Post-installation check Is the device undamaged (visual inspection)?  Does the measuring device conform to the measuring point specifications? For example: • Process temperature  • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 25: Electrical Connection

    Proline t-mass T 150 Electrical connection Electrical connection Connection conditions 7.1.1 Required tools • For cable entries: Use corresponding tools • Wire stripper • When using stranded cables: Crimping tool for ferrule • Flat blade screwdriver≤3 mm (0.12 in) 7.1.2 Requirements for connecting cable The connecting cables provided by the customer must fulfill the following requirements.
  • Page 26 Electrical connection Proline t-mass T 150 7.1.3 Terminal assignment Transmitter Connection version 4-20 mA HART, pulse/frequency/switch output, status input A0017178 Supply voltage Status input Signal transmission: pulse/frequency/switch output Signal transmission: 4-20 mA HART Ground terminal for cable shield Supply voltage...
  • Page 27 Proline t-mass T 150 Electrical connection Order code Terminal numbers Output 1 Output 2 Input "Output, input" 26 (+) 27 (-) 24 (+) 25 (-) 22 (+) 23 (-) Option K Pulse/frequency/switch output (passive) Option Q 4-20 mA HART (active)

  • Page 28: Connecting The Measuring Device

    Electrical connection Proline t-mass T 150 Load 0 to 750 Ω, depending on the external supply voltage of the power supply unit 7.1.6 Preparing the measuring device Remove dummy plug if present. NOTICE! Insufficient sealing of the housing. Operational reliability of the measuring device could be defeated.

  • Page 29: Ensuring The Degree Of Protection

    Proline t-mass T 150 Electrical connection 7.2.1 Connecting the cables 24 mm 3 (0.12) – 10 (0.4) A0017250  5 Engineering unit mm (in) ‣ NOTICE! Housing degree of protection voided due to insufficient sealing of the housing. Screw in the thread without using any lubricant. The threads on the cover are coated with a dry lubricant.

  • Page 30: Post-Connection Check

    Electrical connection Proline t-mass T 150 Check whether the housing seals of the connection and electronics compartment are clean and inserted correctly. Dry, clean or replace the seals if necessary. Tighten all housing screws and screw covers. Firmly tighten the cable glands.

  • Page 31: Operation Options

    Proline t-mass T 150 Operation options Operation options Structure and function of the operating menu 8.1.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation Setup Diagnostics Operating menu for experts Expert A0014058-EN  6 Schematic structure of the operating menu 8.1.2...

  • Page 32: Access To The Operating Menu Via The Local Display

    Operation options Proline t-mass T 150 Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language à 20.50 English Deutsch Español Français User ABC_ DEFG...
  • Page 33 Proline t-mass T 150 Operation options 8.2.1 Operational display Status area Status signals A0013956 A0013959 A0013958 A0013957 Failure Function check Out of specification Maintenance required Diagnostic behavior Locking Communication A0013961 A0013962 A0013965 A0013963 Alarm Warning Device locked Remote operation enabled...
  • Page 34 Operation options Proline t-mass T 150 8.2.2 Navigation view Status area The following appears in the status area of the navigation view in the top right corner: • In the submenu – The direct access code for the parameter you are navigating to (e.g. 0022-1) –...
  • Page 35 Proline t-mass T 150 Operation options Correction symbols under A0013990 A0013991 A0013989 A0013988 Clears all entered characters. Moves the input position Moves the input position Deletes one character one position to the left. one position to the right. immediately to the left of the input position.
  • Page 36 Operation options Proline t-mass T 150 Meaning Escape key combination (press keys simultaneously) In a menu, submenu • Pressing the key briefly: – Exits the current menu level and takes you to the next higher level. – If help text is open, closes the help text of the parameter.
  • Page 37 Proline t-mass T 150 Operation options 8.2.6 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code. This protects the device configuration via the local display from unauthorized access .

  • Page 38: Access To The Operating Menu Via The Operating Tool

    Operation options Proline t-mass T 150 The keypad lock is switched on and off in the same way: Switching on the keypad lock ‣ The device is in the measured value display. Press the  +  +  keys simultaneously.
  • Page 39 Proline t-mass T 150 Operation options A0017373  7 Options for remote operation via HART protocol Control system (e.g. PLC) Field Communicator 475 Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) Commubox FXA195 (USB) Field Xpert SFX350 or SFX370...

  • Page 40: System Integration

    System integration Proline t-mass T 150 8.3.2 Via service interface (CDI) – A0017253 Service interface (CDI) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" System integration For system integration, see the Operating Instructions for the device (→  10).

  • Page 41: Setting The Operating Language

    Proline t-mass T 150 Commissioning If nothing appears on the local display or a diagnostic message is displayed, refer to the device' s operating instructions which can be found on the CD-ROM supplied with the device. 10.3 Setting the operating language...

  • Page 42: Defining The Tag Name

    Commissioning Proline t-mass T 150 Device tag Enter the name for the measuring point. Temperature Displays the temperature currently measured. Pipe inner diameter Enter the inner diameter of the pipe. Installation factor Enter the factor to adjust the installation conditions.
  • Page 43 Proline t-mass T 150 Commissioning Navigation "Setup" menu → Advanced setup → Administration → Def. access code Structure of the submenu Define access code → Define access code Confirm access code Defining the access code via local display Define access code Navigate to the Enter access code parameter.

  • Page 44: Diagnostic Information And Remedial Measures

    Diagnostic information and remedial measures Proline t-mass T 150 – A0017255 Unscrew the electronics compartment cover. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment.
  • Page 45 Proline t-mass T 150 Diagnostic information and remedial measures X X X X X X X X X X X X X X 20.50 S441 Curr.output 1 Menu Diagnostic list Diagnostics 1 S441 Curr.output 1 Diagnostics 2 Diagnostics 3 Curr.output 1...
