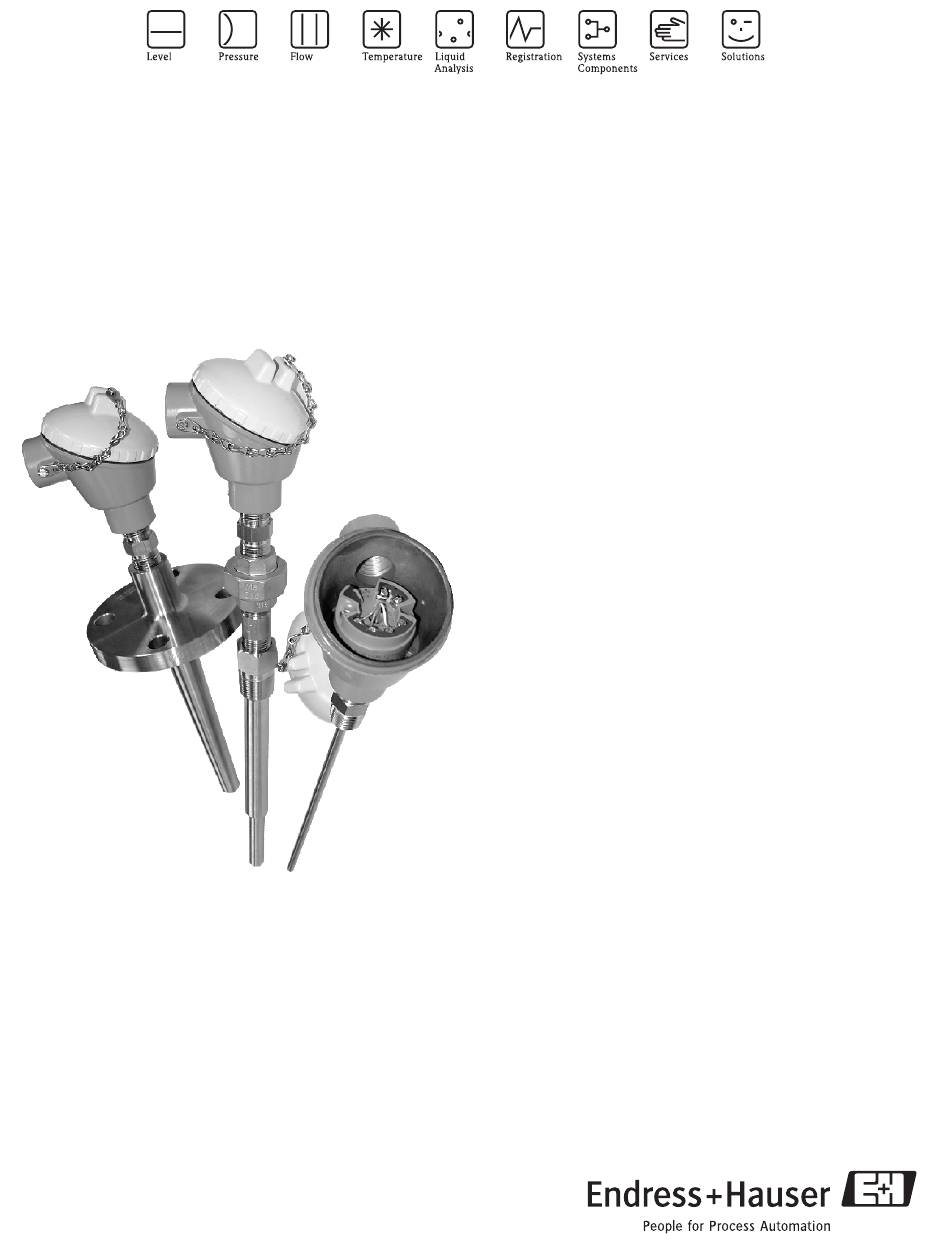

Technical Information
RTD TH13, TH14 and TH15
RTD assemblies in Thermowells with spring loaded insert and
enclosure for process industry
TI110R/24/ae
Areas of application

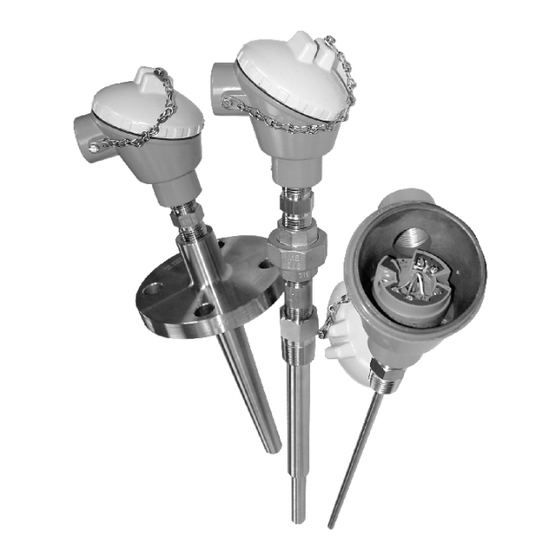

The TH13, TH14 and TH15 temperature sensors are RTD
assemblies installed in Thermowells and designed for use in
all types of process industries, including harsh environments,
due to their rugged design.
The sensor is made up of a measurement probe with an
insulated RTD element, sheath and a thermowell made of
bar-stock material.
The sensor assemblies can be used in process industries such
as:
• Chemicals
• Petrochemical
• Power plants
• Refineries
• Offshore Platforms
Head transmitters
Instead of directly wiring your temperature sensors to your
control system, use transmitters to reduce wiring and
maintenance costs while increasing measurement accuracy.
Field transmitters
Temperature field transmitters with HART
FOUNDATION Fieldbus™ protocol for highest reliability in
harsh industrial environments. Blue backlit display with large
measured value, bargraph and fault condition indication for
ease of reading.
Your benefits
• One source shopping for temperature measurement
solutions. World class transmitter with integrated sensor
offering for heavy process industry applications.
• Remove and install straight out of the box!
• Improved galvanic isolation on most devices (2 kV)
• Simplified model structure: Competitively priced, offers
great value. Easy to order and reorder. A single model
number includes sensor, thermowell and transmitter
assembly for a complete point solution
®
• All iTEMP
transmitters provide long term
stability ≤ 0.05 % per year
®
or
Advertisement
Table of Contents
Related Manuals for Endress+Hauser TH13
Summary of Contents for Endress+Hauser TH13
- Page 1 RTD assemblies in Thermowells with spring loaded insert and enclosure for process industry Areas of application The TH13, TH14 and TH15 temperature sensors are RTD assemblies installed in Thermowells and designed for use in all types of process industries, including harsh environments, due to their rugged design.
-
Page 2: Function And System Design
This data can serve as a basis to maximize savings potential and help in controlling operational costs on a daily basis. Endress+Hauser's energy managers provide accurate and reliable calculations for the monitoring and control of energy consumption (both produced and consumed) according to international standards, e.g. -
Page 3: Equipment Architecture
Construction Model code (class and type of sensor) max. range TH13-_ _ _ _ _ (A/C/E/G/J/L) _ _ _ _ _ Low temperature range TH14-_ _ _ _ _ (A/C/E/G/J/L) _ _ _ _ _ -58 to 392 °F (-50 to 200 °C) -
Page 4: Performance Characteristics
TMT180 and TMT181 one device and program it for your needs. Regardless of your choice of output, all iTEMP transmitters can be configured quickly and easily with a PC. To help you with this task, Endress+Hauser offers free software ® ReadWin 2000 which can be downloaded from our website. - Page 5 TH13, TH14, TH15 Response time examples for RTD assemblies with thermowell TH13 and TH14 Construction Stepped thermowell Tapered thermowell ¾" straight thermowell High temperature range 20 s 25 s 30 s Low temperature range 25 s 30 s 35 s...
- Page 6 Self-heating is the rise of temperature within the element itself, caused by the current flowing through the element. This self-heating appears as a measurement error and is affected by the thermal conductivity and velocity of the process being measured; it is negligible when an Endress+Hauser ®...
-
Page 7: Wiring Diagrams
TH13, TH14, TH15 Wiring Wiring diagrams Type of sensor connection Head mounted transmitter Field mounted transmitter T09-TH1112xx-04-xx-XX-ae-000 T09-TH131415-04-xx-xx-ae-000 Terminal block mounted T09-TH1112xx-04-xx-XX-ae-001 Note! The blocks and transmitters are shown as they sit inside the heads in reference to the conduit opening. -
Page 8: Wire Specifications
Examples for pipe installation - In pipes with a small cross section the sensor tip should reach or extend slightly past the center line of the pipe (=U). A: TH13 assembly socket weld installation B: Threaded, tilted installation of TH13 assembly C: Flange installation of TH14 assembly Endress+Hauser... -
Page 9: Environmental Conditions
Low temperature range ¾" For temperature assemblies with themowell (TH13 and TH14) the minimum immersion is the depth to which the thermowell is immersed in the medium, measured from the tip. To minimize errors from ambient temperature the following minimum immersion lengths are recommended:... -
Page 10: Design, Dimensions
All dimensions in inches. For the values related to this graphic please refer to the tables and equations below. T09-TH131415-06-xx-xx-ae-000 *For TH13 thermowells with ½"NPT - 1" Process thread length and ¾" Hex length dimensions are reversed. Pos. P: Pipe size Pos. - Page 11 TH13, TH14, TH15 All thermowells are marked with: • Material I.D. • CRN# (Canadian Registration Number) • Heat No. Dimensions of TH13 Process Shape of Thermowell ø Q connection 2½", 4½", 7½", Hex nipple = 1" 3" or ½" NPT Stepped (Standard duty) 5/8"...
-
Page 12: System Components
TH13, TH14, TH15 Material Wetted parts 316SS Thermowell material Wetted parts 316SS for usage up to 1700 °F (927 °C). 316SS has good oxidation and corrosion resistance in a wide range of industrial environments with improved resistance to mild acid and pitting corrosion. Exposure to carbide precipitation, reduces corrosion resistance in the 800 to 1000 °F (427 to 538 °C) temperature range. -
Page 13: Head Transmitter
TH13, TH14, TH15 Type of housing Specification ® ® Temperature field transmitter iTEMP HART TMT142 • Material: Die-cast aluminum housing AlSi10Mg with powder coating on polyester base • Display rotatable in 90° increments • Cable entry: 3 x ½" NPT •... -
Page 14: Certificates And Approvals
TH13, TH14, TH15 Fieldbus connector Type (dimensions in inches [mm]) Specification ® Fieldbus connector to PROFIBUS -PA or • Ambient temperature: -40 to 300 °F (-40 to 150 °C) FOUNDATION Fieldbus™ • Degree of protection IP 67 Wiring diagram: a0006023 T09-FFCONNEC-06-xx-xx-ae-000 Pos. -
Page 15: Product Structure, Rtd Assembly In Thermowell Th13
TH13, TH14, TH15 Ordering information Product structure, RTD TH13- RTD assembly in thermowell, TH13 assembly in thermowell TH13 TW Immersion length U: 2½ inch 4½ inch 7½ inch 10½ inch ..inch (0.5" increments) special Process connection, TW Material, 1 inch: A1 ½"... - Page 16 TH13, TH14, TH15 Enclosure; communication: None E+H blue Al + cover, ½" NPT cable entry E+H blue Al + cover, ¾" NPT cable entry Plastic PP white ½" NPT cable entry Plastic PP white ¾" NPT cable entry SS316L (TA20J), ½" NPT SS316L (TA20J), LCD, ½"...
-
Page 17: Product Structure, Rtd Assembly In Flanged Thermowell Th14
TH13, TH14, TH15 Product structure, RTD TH14- RTD assembly in flanged thermowell, TH14 assembly in flanged TW Immersion length U thermowell TH14 2 inch 4 inch 7 inch 10 inch ..inch (0.5" increments) Special version Flange size; TW Material per 1 inch: 1 inch 316SS 1½... - Page 18 TH13, TH14, TH15 Enclosure; communication: None E+H blue Al + cover, ½" NPT cable entry E+H blue Al + cover, ¾" NPT cable entry Plastic PP white ½" NPT cable entry Plastic PP white ¾" NPT cable entry SS316L (TA20J), ½" NPT SS316L (TA20J), LCD, ½"...
-
Page 19: Product Structure, Rtd Assembly Th15
TH13, TH14, TH15 Product structure, RTD TH15- RTD assembly, TH15 assembly TH15 Immersion length X 4 inch 6 inch 9 inch 12 inch 14 inch ..inch (0.5" increments) Special version Sheath diameter price per 2 inch: ¼ inch 316SS... - Page 20 TH13, TH14, TH15 Electrical connection: Programmable RTD TMT180 Programmable TMT181 NON Ex Programmable TMT181 FM IS Programmable TMT181 CSA IS Profibus PA TMT184, non Ex Profibus PA TMT184, FM IS Profibus PA TMT184, CSA IS TMT162, non Ex, Dual Compartment...
- Page 21 TH13, TH14, TH15 Documentation • Compact instructions TH13 RTD assembly in thermowell (KA190r/24/ae) • Compact instructions TH14 RTD assembly in flanged thermowell (KA192r/24/ae) • Compact instructions TH15 RTD assembly - spring loaded (KA195r/24/ae) ® • Technical information Temperature field transmitter iTEMP TMT162 (TI086r/24/ae) ®...
- Page 22 TH13, TH14, TH15...
- Page 23 TH13, TH14, TH15...
- Page 24 TH13, TH14, TH15 Mexico United States Canada Endress+Hauser Canada Endress+Hauser (Mexico) S.A. de C.V. Endress+Hauser, Inc. 1075 Sutton Drive 2350 Endress Place Av. Gustavo Baz No. 43 Burlington, ON L7L 5Z8 Fracc. Bosques de Echegaray Greenwood, IN 46143 Tel: 905-681-9292 Tel: 317-535-7138 Naucalpan de Juárez, C.P.
