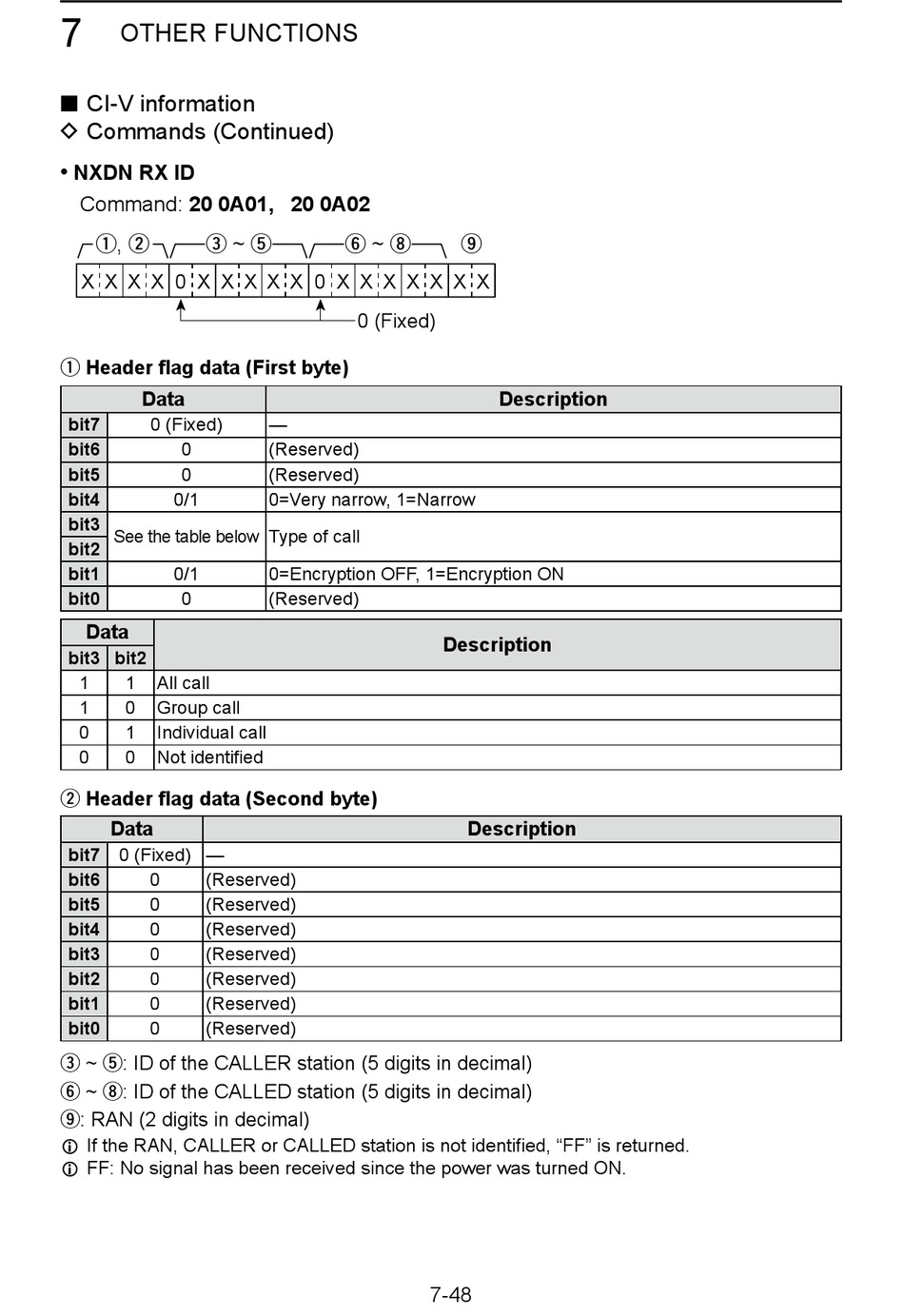

OTHER FUNCTIONS
■ CI-V information
D Commands (Continued)
• NXDN RX ID
Command: 20 0A01, 20 0A02
e ~ t
q, w
X X X X 0 X X X
q Header flag data (First byte)
Data
bit7
0 (Fixed)
bit6 0
bit5 0
bit4 0/1
bit3
See the table below Type of call
bit2
bit1
0/1
bit0 0
Data
bit3 bit2
1 1 All call
1 0 Group call
0 1 Individual call
0 0 Not identified
w Header flag data (Second byte)
Data
bit7 0 (Fixed) —
bit6
0 (Reserved)
bit5
0 (Reserved)
bit4 0 (Reserved)
bit3 0 (Reserved)
bit2 0 (Reserved)
bit1 0 (Reserved)
bit0
0 (Reserved)
e ~ t: ID of the CALLER station (5 digits in decimal)
y ~ i: ID of the CALLED station (5 digits in decimal)
o: RAN (2 digits in decimal)
L If the RAN, CALLER or CALLED station is not identified, "FF" is returned.
L FF: No signal has been received since the power was turned ON.
y ~ i
X X 0 X X X X X X X
0 (Fixed)
—
(Reserved)
(Reserved)
0=Very narrow, 1=Narrow
0=Encryption OFF, 1=Encryption ON
(Reserved)
