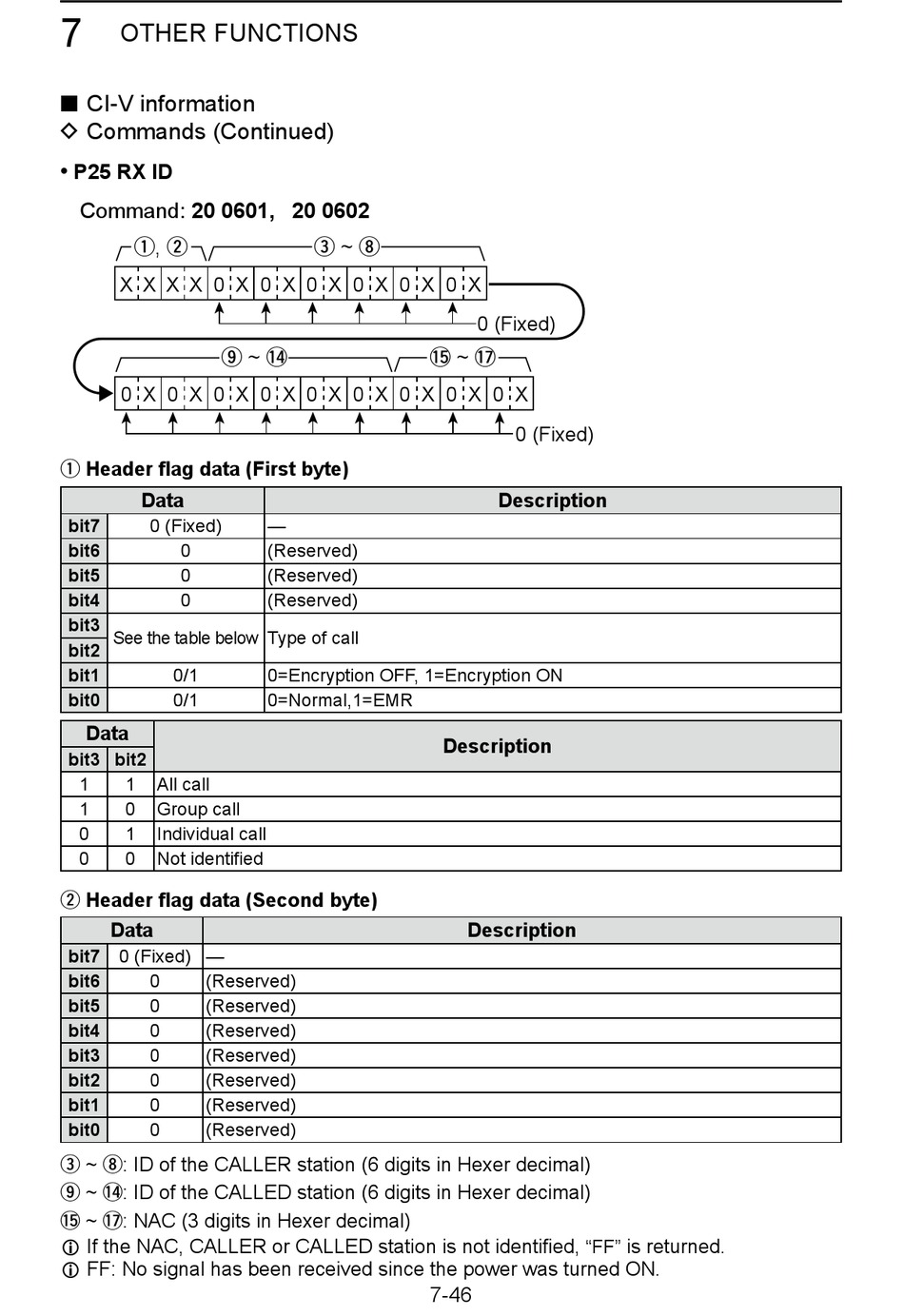

Icom IC-R30 Advanced Manual page 157

7
OTHER FUNCTIONS
■ CI-V information
D Commands (Continued)
• P25 RX ID
Command: 20 0601, 20 0602
q, w
X X X X 0 X 0 X
o ~ !4
0 X 0 X 0 X 0 X
q Header flag data (First byte)
Data
bit7 0 (Fixed)
bit6 0
bit5
0
bit4
0
bit3
See the table below Type of call
bit2
bit1 0/1
bit0 0/1
Data
bit3 bit2
1 1 All call
1 0 Group call
0 1 Individual call
0 0 Not identified
w Header flag data (Second byte)
Data
bit7 0 (Fixed) —
bit6 0 (Reserved)
bit5 0 (Reserved)
bit4
0 (Reserved)
bit3
0 (Reserved)
bit2 0 (Reserved)
bit1 0 (Reserved)
bit0 0 (Reserved)
e ~ i: ID of the CALLER station (6 digits in Hexer decimal)
o ~ !4 : ID of the CALLED station (6 digits in Hexer decimal)
!5 ~ !7 : NAC (3 digits in Hexer decimal)
L If the NAC, CALLER or CALLED station is not identified,
L FF: No signal has been received since the power was turned ON.
e ~ i
0 X 0 X 0 X 0 X
!5 ~ !7
0 X 0 X 0 X 0 X 0 X
—
(Reserved)
(Reserved)
(Reserved)
0=Encryption OFF, 1=Encryption ON
0=Normal,1=EMR
7-46
0 (Fixed)
0 (Fixed)
Description
Description
Description
"FF"
is returned.
