Hilti PD38 Quick Start Manual

SiteMaster Building XP/VISTA

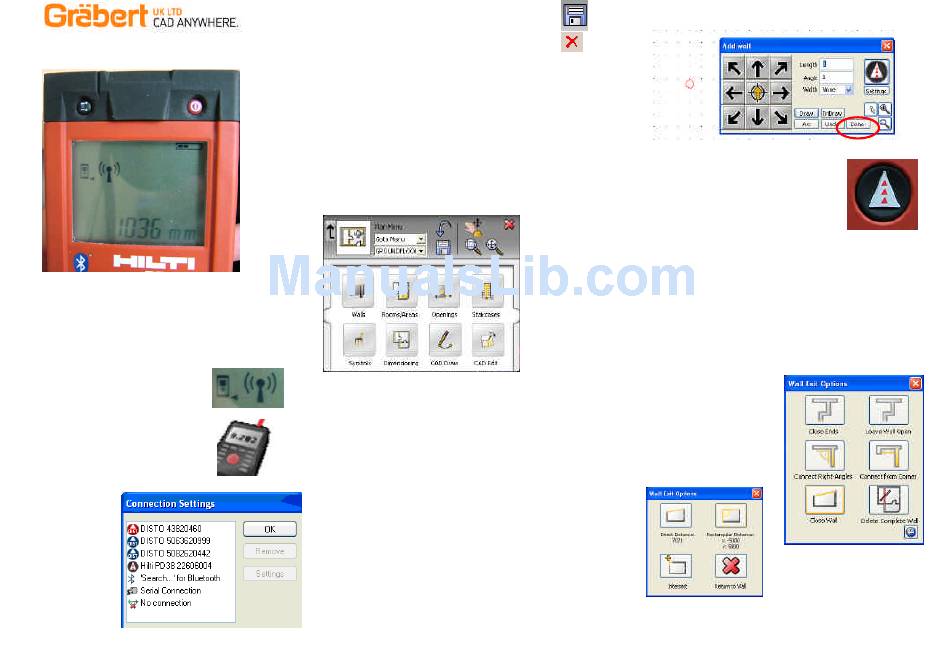

Quick Start Guide for Hilti PD38

1 . Before You Begin....

Recommendation: Before using SiteMaster software,
read and understand the manual of your PC/UMPC,
especially about using stylus and Bluetooth. Also read the
manual of your laser meter, especially on using Bluetooth.
Switch On
1. Laser meter by pressing the ON/OFF or
DIST button
- By default, on the Hilti the Bluetooth is always
on. The Bluetooth Symbol 'a keyhole' will show,
(once connected it has brackets around it)
2. Windows XP
- Switch on device
- Switch the Bluetooth ON, on the device
- Start SiteMaster Building by double clicking
the icon on the Desktop:
The Bluetooth connection wizard
assists you in setting up a
connection to the Hilti.
Select
- Search... for Bluetooth
to find Bluetooth devices.
Found devices will be
listed
- Select device from list,
- then 'Connect'
- Laser meter confi rms
with beep and brackets
appear around the
Bluetooth symbol
- Click 'OK'
SiteMaster starts with Icon Menu »Plan Menu«
- Continue e.g. with Walls > Wall
Switch Off
1. SiteMaster Building.....
- Save the drawing..use FILE > SAVE or the save icon
- Close Icon Menu (if open) to do this click the red cross
- File > Exit, Bluetooth connection is closed automatically
- Switch off PC (If required)
2. Laser distance meter:
- (Bluetooth symbol brackets disappear from display)
- Switch off laser device (press ON/OFF button)
File Formats
SiteMaster Building saves and opens these CAD file formats:
• FLX: SiteMaster drawing
• DWG: AutoCAD
• DXF: DXF format
• DWF: Design-Web-Format (export only)
Use File > Save As to save in these formats
Use File > Open > and set the file type to open them
SiteMaster starts with the 'Plan Menu'....
walls in the room. Then draw the doors, this gets you into the next
rooms.
For simplicity, have a go with the 90 degree method to get started.
Select Walls > Wall and pick somewhere on screen...note that
a red circle appears....this is where you are drawing from, and is
typical for the rest of the software.
TRY Drawing just a rectangular room to get started...measure
2 sides and the select the DONE > CLOSE WALL > RECT DIST
Then jump to the 'Add room area data'.
Sitemaster only has 2 ways to draw...90 degree and Triangulation.
Master these and you can draw anything
Main principle of Sitemaster is to draw the wall structure of a room,
place the area calculation, add in detail...pillars, recesses, doors
windows and then symbols.
(area's and symbols not available in LT version)
Getting from room to room is done using the door command...as
you place a door you are given the option to draw the walls on
either side of the doorway in the next room. Once drawn, simply
connect onto the ends of these walls to begin and complete the
next room. If not drawn, connect to the sides of the door lines.
Also, the software is a FULL CAD package with SiteMaster tools
built on top. Have a look at the 'Draw' and 'Edit' modules. All the
usual tools, OFFSET, TRIM CORNER, ERASE etc.
Working in 90 degree mode with a Leica
(when in the Wall command)
Whenever you see the dialogue box above, you are working in '90
degree mode'
With the Hilti, as soon as you have taken a
measurement it will appear in the Sitemaster
dialogue box.
1. Take a measurement with the
larger 'DIST' button
First things
2. Press an arrow button (ON THE
first...'where do I
SCREEN... to indicate which
start'...
direction you want to draw... UP, DOWN, LEFT, RIGHT
Do the survey
or TO THE 45 DEGREE ANGLES.
how you want the
3. Repeat above for other walls in a room
finished drawing
Note: You can also manually type in measurements and then click
to look.
a direction arrow on screen.
i.e. Start with the
The 'Width' drop down allows you to specify a wall thickness
Entrance at the
(picking or typing). Sitemaster will then draw 2 parallel lines for
bottom of the
each wall.
screen...draw the
TRY Drawing just a rectangular room to get started...measure
horizontal wall
2 sides and the select the DONE > CLOSE WALL > RECT DIST
that the entrance
Note: The direction selected will be relative to how the drawing is
is in, then draw
on the screen. UP will draw UP the screen, LEFT will draw towards
the rest of the
the left of the screen etc.
Once you have drawn a full
room perimeter you will have
to exit the 'Add Wall' menu.....
To finish off ANY walls you
MUST ALWAYS click the
'DONE' button in the 'Add
Wall' dialogue and then select
one of the 'Wall Exit Options'
'Rectangular' if you have drawn 2 sides of a rect shape room
already.
I often use 'Leave Wall Open' so I can measure any closing error
using the 'Inspection' ...'Pick Dist'.
Use' EDIT > Trim Corner' to manually close.
The 'Close wall' option will give
further methods to close a room off.
Use the 'Direct distance' to close to
where you started from.
'Intersect' to close and corner.
