IR and DM Areas

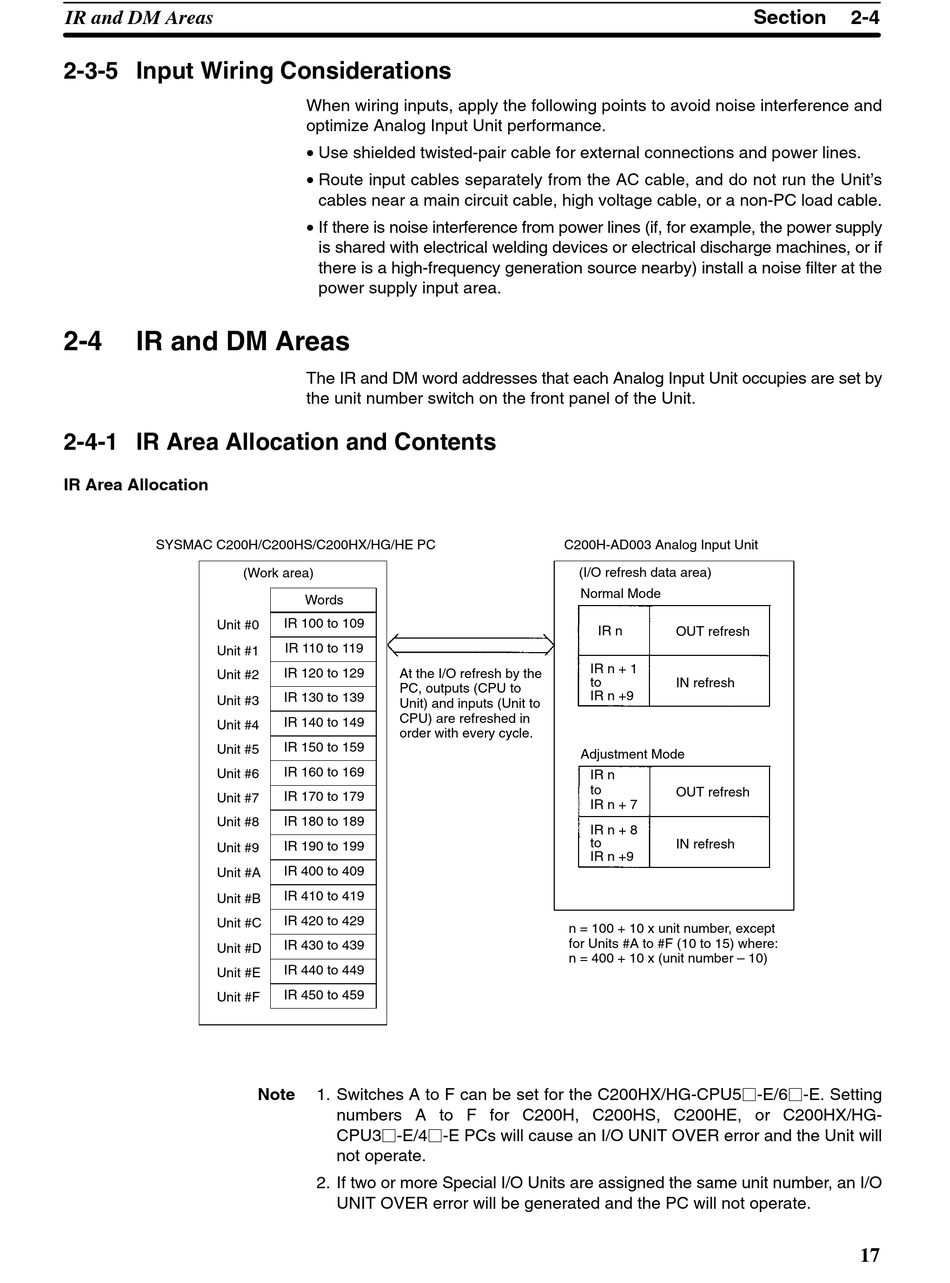

2-3-5 Input Wiring Considerations

2-4
IR and DM Areas

2-4-1 IR Area Allocation and Contents

IR Area Allocation
SYSMAC C200H/C200HS/C200HX/HG/HE PC
Unit #0
Unit #1
Unit #2
Unit #3
Unit #4
Unit #5
Unit #6
Unit #7
Unit #8
Unit #9
Unit #A
Unit #B
Unit #C
Unit #D
Unit #E
Unit #F
When wiring inputs, apply the following points to avoid noise interference and
optimize Analog Input Unit performance.
• Use shielded twisted-pair cable for external connections and power lines.
• Route input cables separately from the AC cable, and do not run the Unit's
cables near a main circuit cable, high voltage cable, or a non-PC load cable.
• If there is noise interference from power lines (if, for example, the power supply
is shared with electrical welding devices or electrical discharge machines, or if
there is a high-frequency generation source nearby) install a noise filter at the
power supply input area.
The IR and DM word addresses that each Analog Input Unit occupies are set by
the unit number switch on the front panel of the Unit.
(Work area)
Words
IR 100 to 109
IR 110 to 119
IR 120 to 129
At the I/O refresh by the
PC, outputs (CPU to
IR 130 to 139
Unit) and inputs (Unit to
CPU) are refreshed in
IR 140 to 149
order with every cycle.
IR 150 to 159
IR 160 to 169
IR 170 to 179
IR 180 to 189
IR 190 to 199
IR 400 to 409
IR 410 to 419
IR 420 to 429
IR 430 to 439
IR 440 to 449
IR 450 to 459
Note
1. Switches A to F can be set for the C200HX/HG-CPU5j-E/6j-E. Setting
numbers A to F for C200H, C200HS, C200HE, or C200HX/HG-
CPU3j-E/4j-E PCs will cause an I/O UNIT OVER error and the Unit will
not operate.
2. If two or more Special I/O Units are assigned the same unit number, an I/O
UNIT OVER error will be generated and the PC will not operate.
C200H-AD003 Analog Input Unit
(I/O refresh data area)
Normal Mode
IR n
OUT refresh
IR n + 1
to
IN refresh
IR n +9
Adjustment Mode
IR n
to
OUT refresh
IR n + 7
IR n + 8
to
IN refresh
IR n +9
n = 100 + 10 x unit number, except
for Units #A to #F (10 to 15) where:
n = 400 + 10 x (unit number – 10)
Section
2-4
17
