DT4572 X-Band Down Converter
System Operation
---------SELECT---------
----CONFIGURATION-MENU--
FREQ= 72XX.XXX-MHz------
ATTN=-10.00-DB---Rx=OFF-
----EXTERNAL-5-MHz------
--REFERENCE-PRESENT-----
--ENTRY-MODE-=-REMOTE---
-COLD-START-=-DISABLED--
FAULT RECOVERY:-MANUAL--
------------------------
REDUNDANCY-CONFIG?-OFF--
------------------------
ENT + UP + ENT
REDUNDANCY-CONFIG?-ON---
-CONVERTER-#-XX---------
ENTER
* Displayed only
when there is
a 5/10 MHz
reference input.
ENT + DOWN + ENT
ENT + RIGHT+UP + ENT
LEGEND
DISPLAY
---------SELECT---------
--MONITOR-STATUS-MENU---

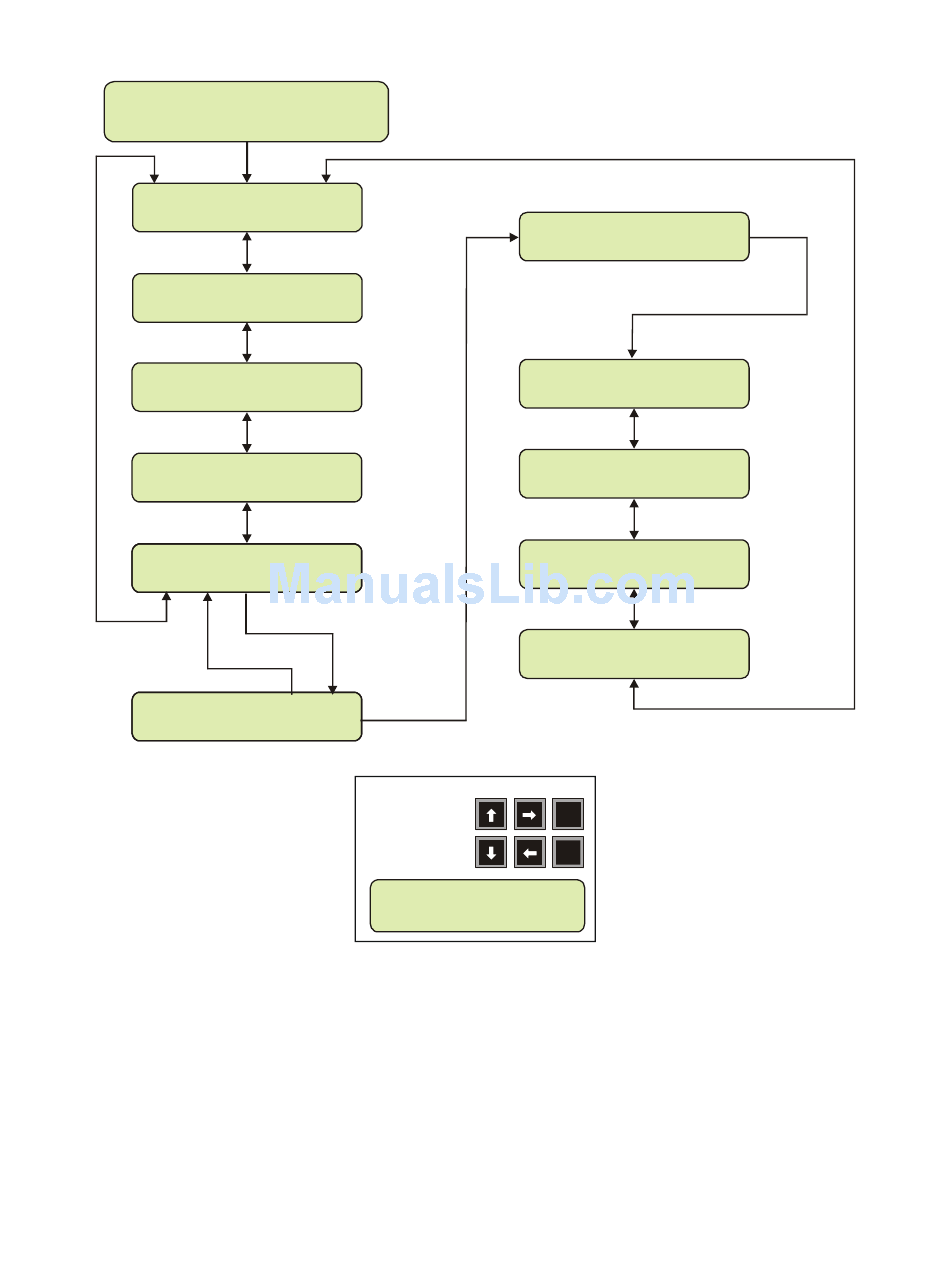

Figure 15. Configuration Menu Commands -
Redundancy ON and Backup Unit Selected
REDUNDANCY-CONFIG?-ON---
-CONVERTER-#-01---------
REDUNDANCY-CONFIG?-ON---
-CONVERTER-#-BU---1:03--
-CONVERTER-123456789ABC-
-AUTO/MAN--AAM----------
CONV-01-OFFSET=+00.00-DB
--ACTIVATE-BACKUP:-NO---
-CONV-#03-FRQ=XXXXX.XXX-
-ATEN=10.00---MANUAL-OK-
KEY-PAD
ENT
CLR
21
MM/DT4572.IOM
ENT + RIGHT+UP . . . +UP + ENT
Rev. 0
