RUGGEDCOM WiN5100/WiN5200
User Guide

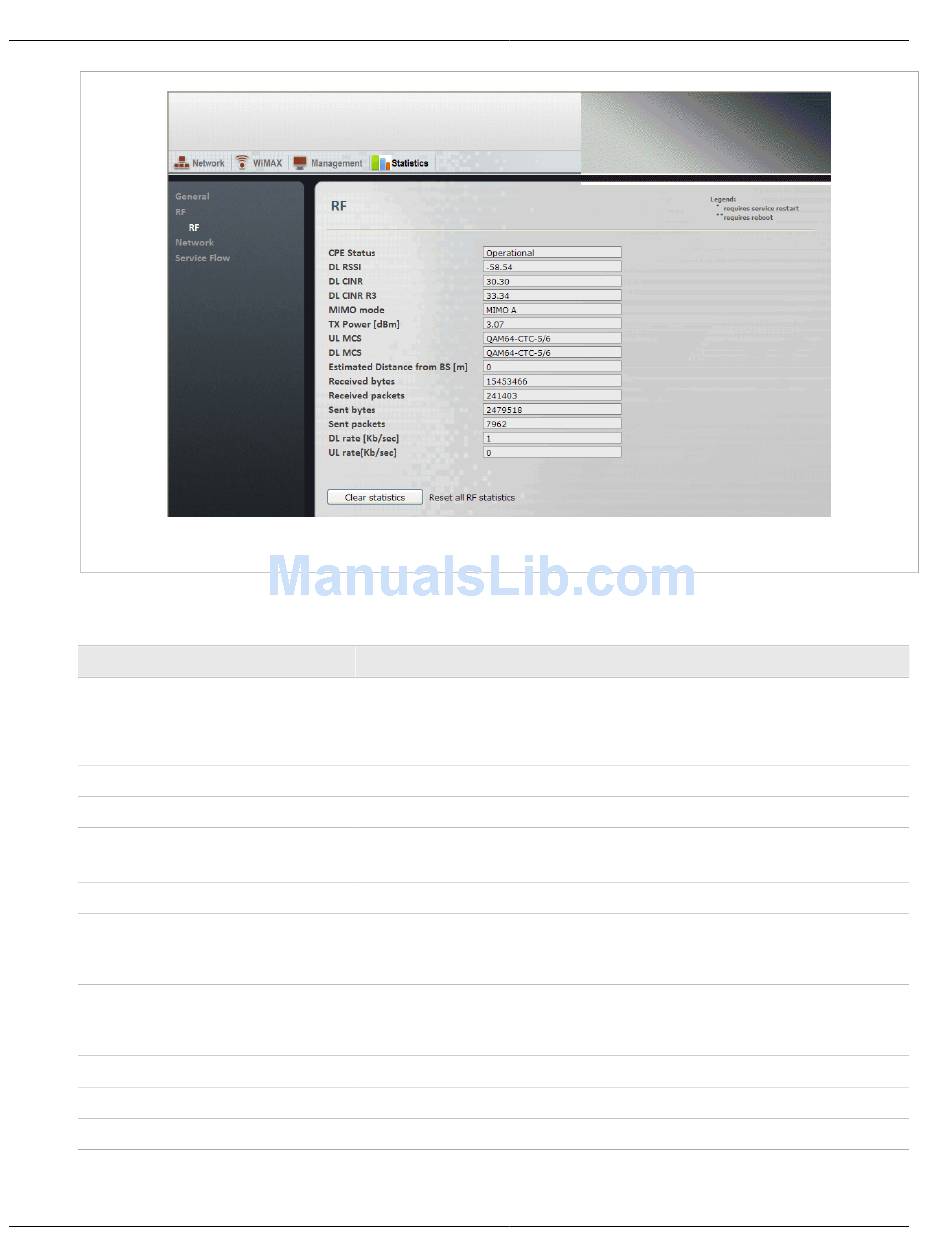

Figure 72: RF pane
2. View the CPE RF statistics in the following fields:
Table: RF Statistics fields
Field
CPE Status
DL RSSI
DL CINR
MIMO mode
TX Power [dBm]
UL MCS
DL MCS
Distance from BS
Received bytes
Received packets
RF Statistics
Description
Displays the current CPE status.
Values: Init | DL Synchronization | Handover DL acquisition | UL Acquisition | Ranging |
Handover ranging | Capabilities negotiation | Authorization | Registration | DHCP | TOD |
TFTP | Operational | Sleep | IDLE | Aborted
Displays the downlink received signal strength, in dBm.
Displays the downlink carrier to interference and noise ratio, in dBm.
Displays the CPE Multiple-Input, Multiple-Output mode.
Values: SISO | MIMO A | MIMO B
Displays the CPE transmission power, in dBm.
Displays the uplink Modulation and Coding Scheme.
Values: N/A | QPSK-CTC-1/2 | QPSK-CTC-3/4 | QAM16-CTC-1/2 | QAM16-CTC-3/4 |
QAM64-CTC-2/3 | QAM64-CTC-3/4| QAM64-CTC-5/6
Displays the downlink Modulation and Coding Scheme.
Values: N/A | QPSK-CTC-1/2 | QPSK-CTC-3/4 | QAM16-CTC-1/2 | QAM16-CTC-3/4 |
QAM64-CTC-2/3 | QAM64-CTC-3/4| QAM64-CTC-5/6
Displays the estimated distance of the CPE from the base station, in meters.
Displays the amount of data received by the CPE, in bytes.
Displays the number of packets received by the CPE.
Chapter 6
CPE Management Interface
83
