Intel® Server System R2000WF Product Family Technical Product Specification
7.

Storage Controller Options Overview

The Intel® Server System R2000WF product family has support for a variety of storage controller and storage
device options including:


Onboard SATA support

 Embedded software RAID support

M.2 SSD support
 NVMe* SFF SSD support
 Intel® Integrated RAID Modules support
7.1 Onboard SATA Support
The server board utilizes two chipset embedded AHCI SATA controllers, identified as SATA and sSATA,
providing for up to ten 6 Gb/sec Serial ATA (SATA) ports.
The AHCI sSATA controller provides support for up to 4 SATA ports on the server board:
Two ports accessed via two white single port 7-pin connectors labeled "sSATA-4" and "sSATA-5" on the
•
server board
Two ports (sSATA 1 and sSATA 2) via two M.2 SSD connectors
•
The AHCI SATA controller provides support for up to 8 SATA ports on the server board: (S2600WFT &
S2600WF0 boards only)
Four ports from the Mini-SAS HD (SFF-8643) connector labeled "SATA Ports 0-3" on the server board
•
Four ports from the Mini-SAS HD (SFF-8643) connector labeled "SATA Ports 4-7" on the server board.
•
Note: The onboard SATA controllers are not compatible with and cannot be used with SAS expander cards.
SATA ports 0-3
SATA ports 4-7
86
sSATA port 4

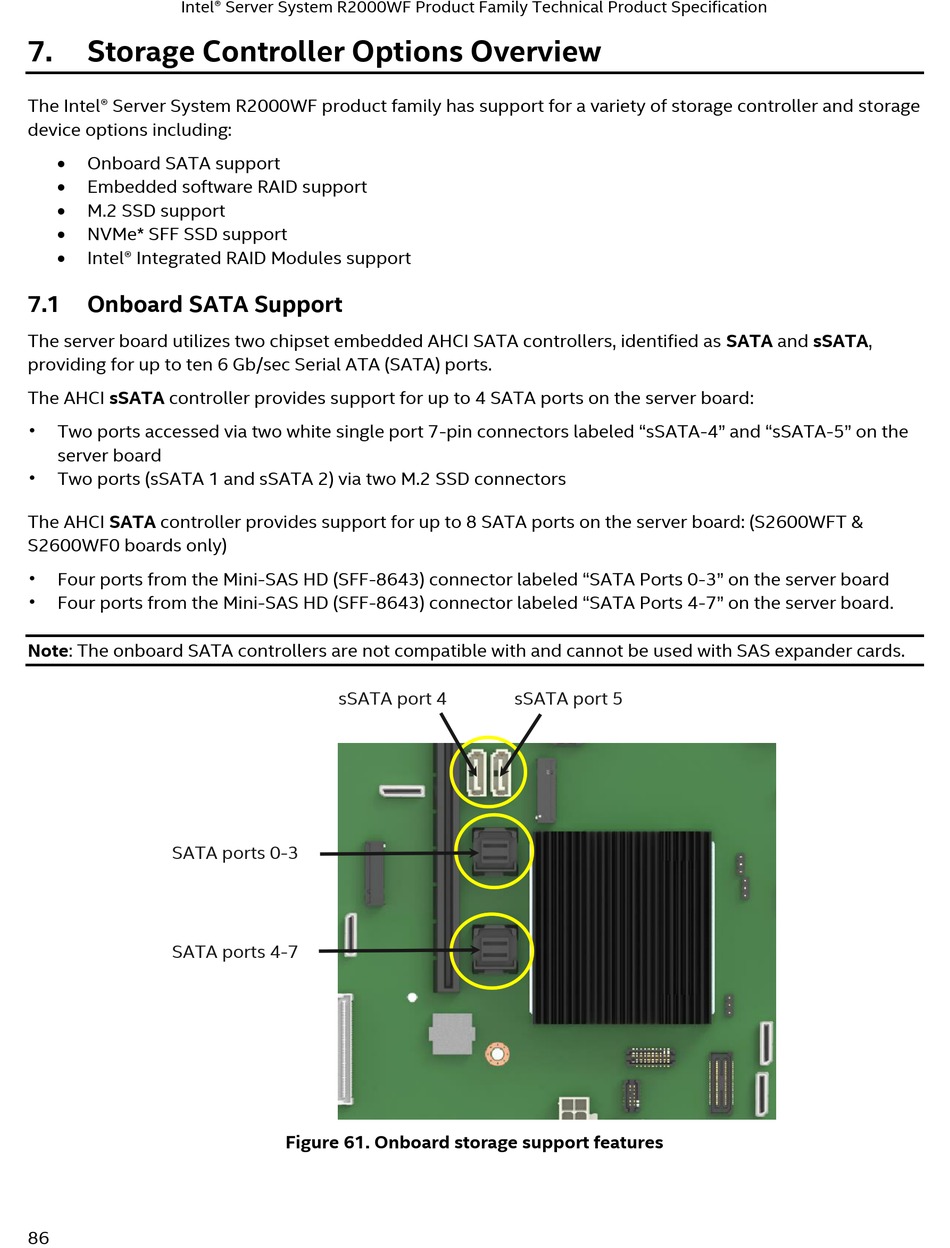

Figure 61. Onboard storage support features

sSATA port 5
