Intel® Server System R2000WF Product Family Technical Product Specification

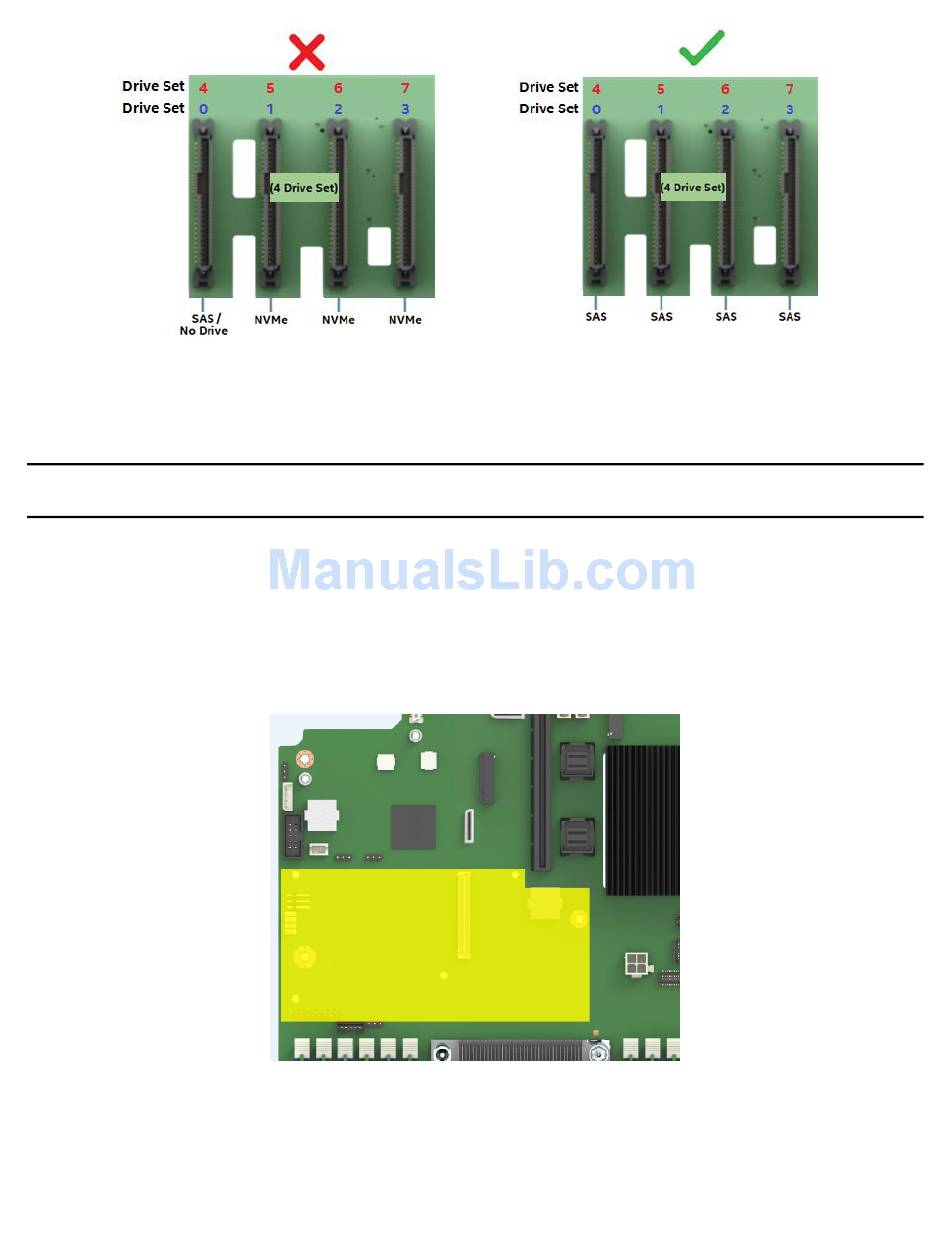

= Not Supported = Supported
SAS in all 4 drive slots,
No NVMe in 1 st drive slot and no NVMe
Mixing of NVMe and SAS
within a common drive set is
not supported
Note: The NVMe drive population rules defined above are only applicable when the Intel® VROC accessory
option is installed and used to provide NVMe drive management.
7.5 Intel® Integrated RAID Module Support
The system has support for many Intel and third-party PCIe* add-in 12 Gb RAID adapters which can be
installed in available PCIe add-in cards slots. For system configurations with limited add-in card slot
availability, an optional Intel® Integrated RAID mezzanine module can be installed onto a high density 80-pin
connector (labeled "SAS Module") on the server board.
Intel® Integrated SAS
RAID Module
