Table 3. Intel® Server System R2000Wf Product Family Configurations - Intel R2000WF Technical Product Specification

Intel® Server System R2000WF Product Family Technical Product Specification
The following table describes the features of the server system configurations. Storage system
configurations include R2312WFxxxx and R2224WFxxxx. Non-storage system configurations include
R2308WFxxxx, R2208WFxxxx, and R2208WFxxxx +8 (base 8 drive system with 8 drive add in module).

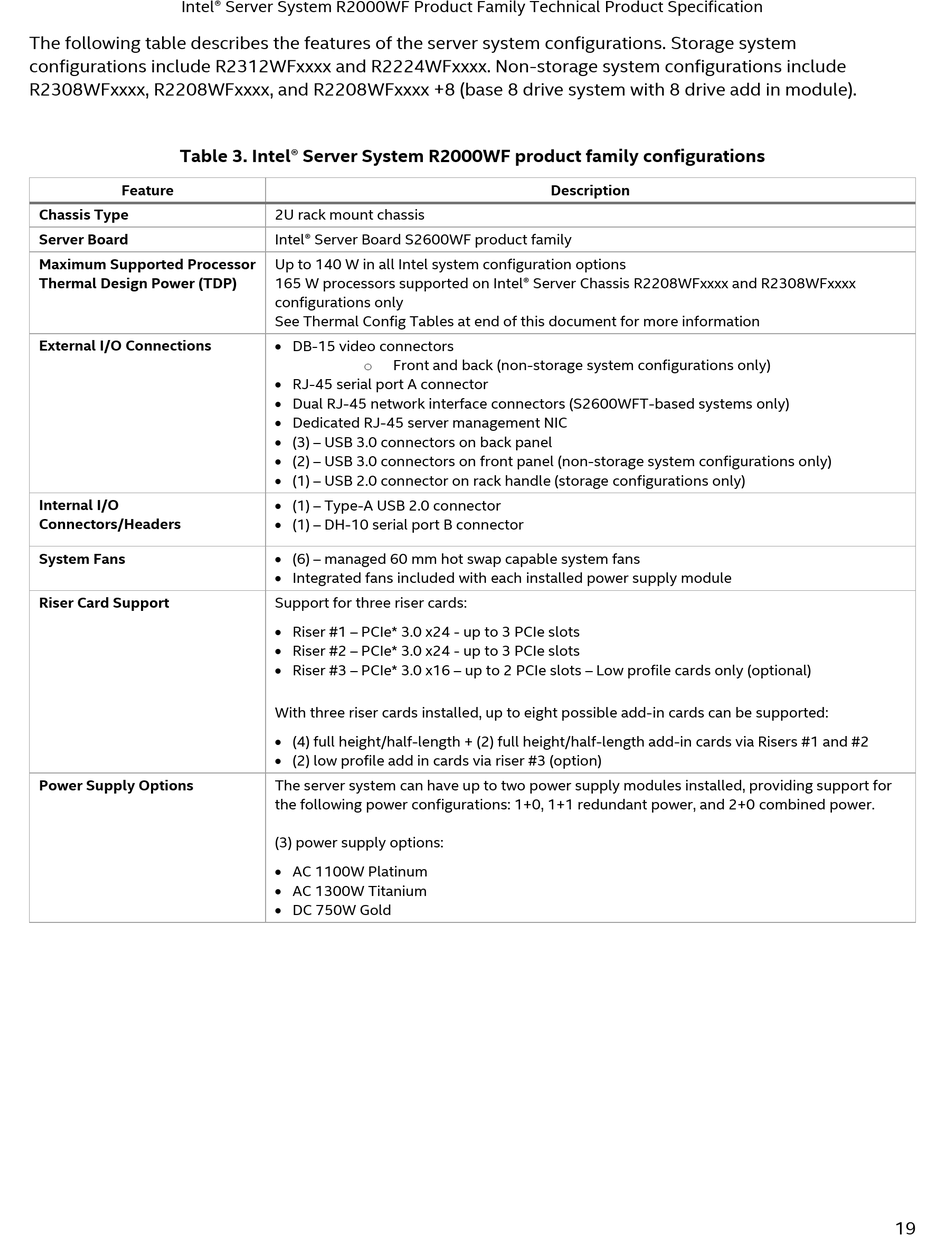

Table 3. Intel® Server System R2000WF product family configurations
Feature
Chassis Type
Server Board
Maximum Supported Processor
Thermal Design Power (TDP)
External I/O Connections
Internal I/O
Connectors/Headers
System Fans
Riser Card Support
Power Supply Options
2U rack mount chassis
Intel® Server Board S2600WF product family
Up to 140 W in all Intel system configuration options
165 W processors supported on Intel® Server Chassis R2208WFxxxx and R2308WFxxxx
configurations only
See Thermal Config Tables at end of this document for more information
 DB-15 video connectors
Front and back (non-storage system configurations only)
o
 RJ-45 serial port A connector
 Dual RJ-45 network interface connectors (S2600WFT-based systems only)
 Dedicated RJ-45 server management NIC
 (3) – USB 3.0 connectors on back panel
 (2) – USB 3.0 connectors on front panel (non-storage system configurations only)
 (1) – USB 2.0 connector on rack handle (storage configurations only)
 (1) – Type-A USB 2.0 connector
 (1) – DH-10 serial port B connector
 (6) – managed 60 mm hot swap capable system fans
 Integrated fans included with each installed power supply module
Support for three riser cards:
 Riser #1 – PCIe* 3.0 x24 - up to 3 PCIe slots
 Riser #2 – PCIe* 3.0 x24 - up to 3 PCIe slots
 Riser #3 – PCIe* 3.0 x16 – up to 2 PCIe slots – Low profile cards only (optional)
With three riser cards installed, up to eight possible add-in cards can be supported:
 (4) full height/half-length + (2) full height/half-length add-in cards via Risers #1 and #2
 (2) low profile add in cards via riser #3 (option)
The server system can have up to two power supply modules installed, providing support for
the following power configurations: 1+0, 1+1 redundant power, and 2+0 combined power.
(3) power supply options:
 AC 1100W Platinum
 AC 1300W Titanium
 DC 750W Gold
