Intel® Server System R2000WF Product Family Technical Product Specification
The server board includes a number of LEDs to identify system status and/or indicate a component fault.
Figure 6 and Figure 7 identify each diagnostic LED and their location.

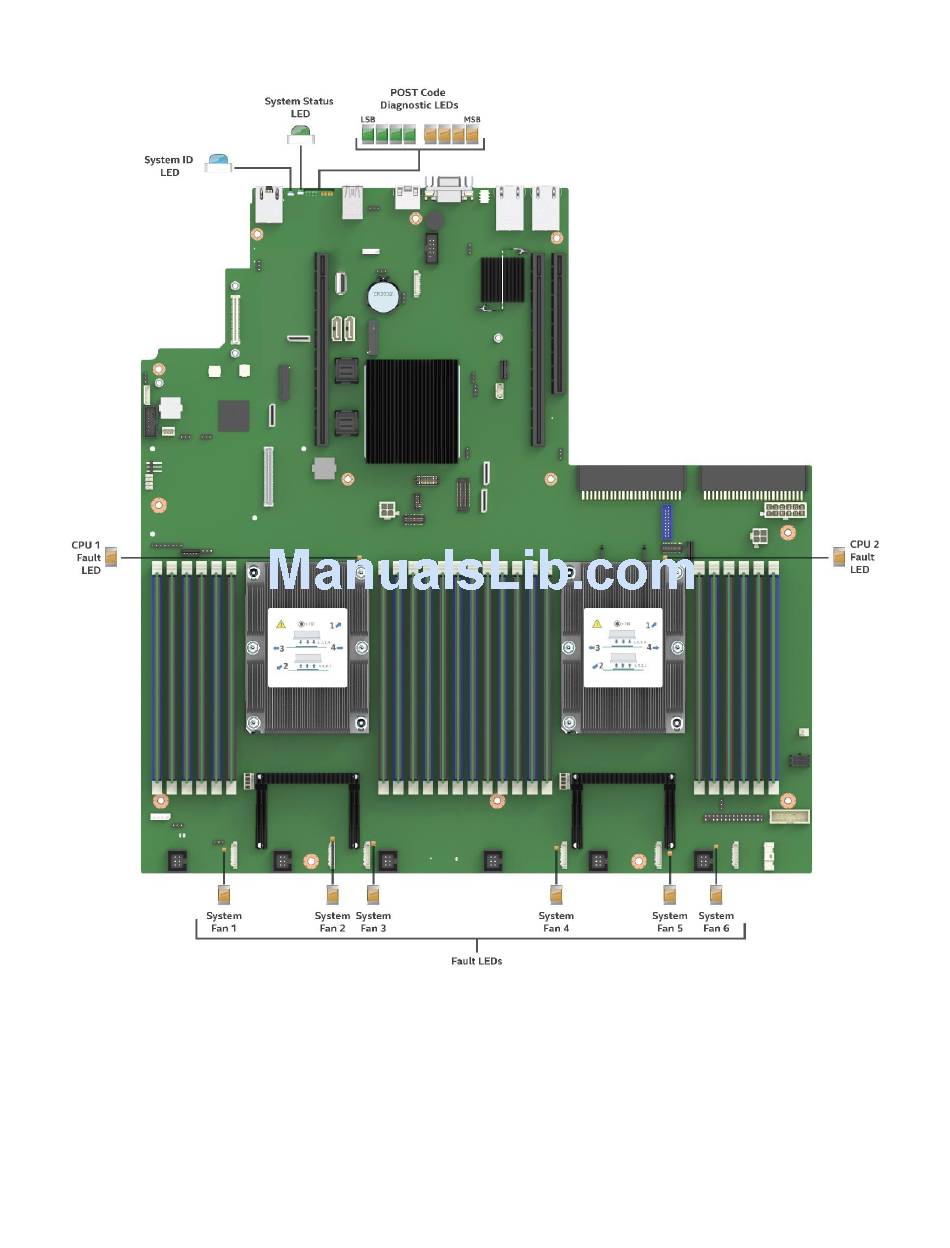

Figure 6. Intel® Light Guided Diagnostics – LED identification
