Intel® Server System R2000WF Product Family Technical Product Specification
2.

Server System Family Overview

The 2U server platforms within the Intel® Server System R2000WF product family offer a variety of system
options to meet varied configuration requirements of high-density, high-performance computing
environments.
This chapter provides a high-level overview of the system features and available options supported in
different system models within this product family. Greater detail for each major sub-system, feature or
option is provided in following chapters.
The following table identifies the feature set of each supported server board.
Intel Server Board
Product Code
Processor Support
Memory
Intel® C62x Series
Chipset
Intel® Quick Assist
Technology (QAT)
Intel® Omni-Path
Fabric Support
On-board LAN
Intel® OCP Module
Support
iPC = Intel Product
Code
Intel® Integrated SAS
Module Support
Onboard PCIe* NVMe
Support

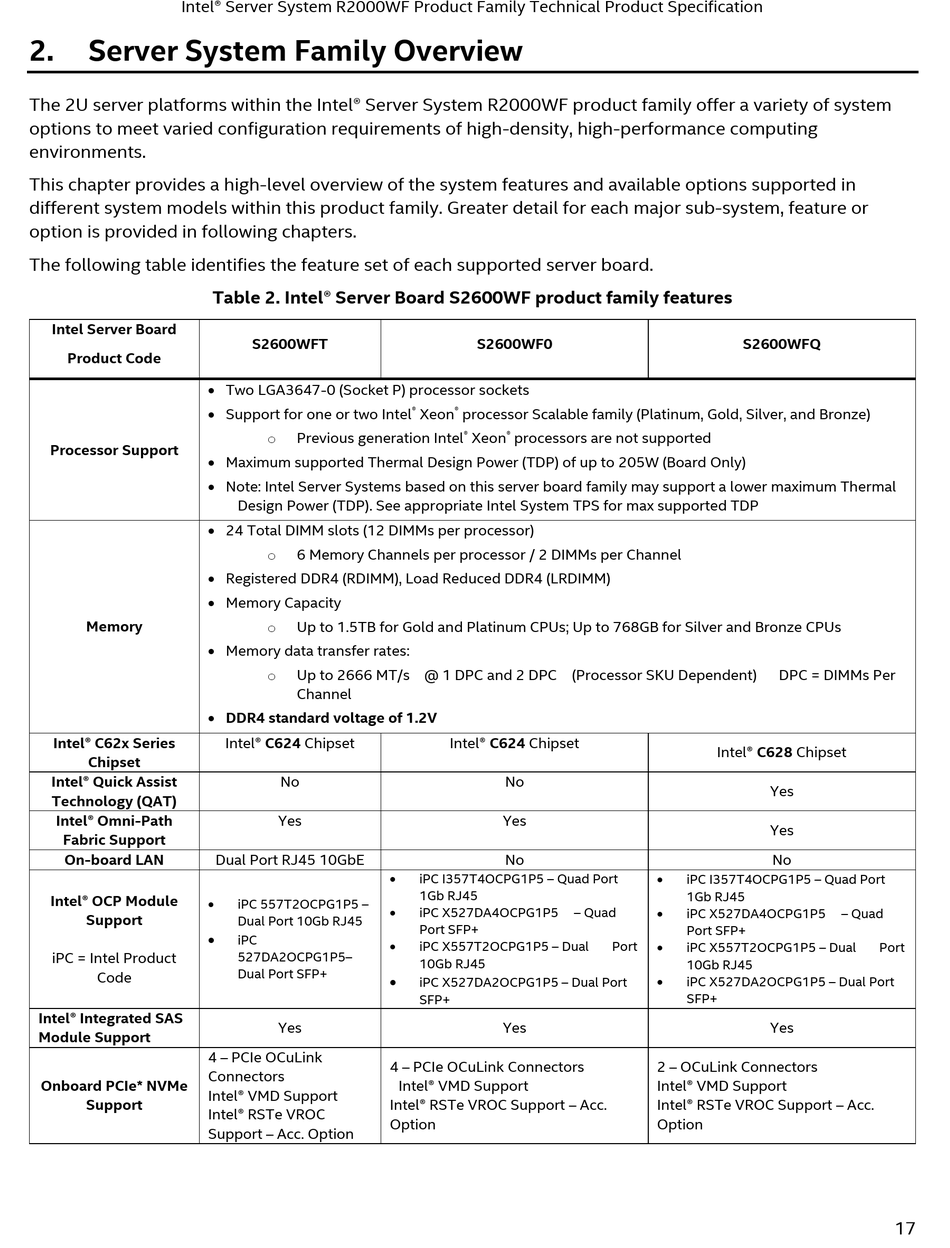

Table 2. Intel® Server Board S2600WF product family features
S2600WFT
 Two LGA3647-0 (Socket P) processor sockets
 Support for one or two Intel
Previous generation Intel
o
 Maximum supported Thermal Design Power (TDP) of up to 205W (Board Only)
 Note: Intel Server Systems based on this server board family may support a lower maximum Thermal
Design Power (TDP). See appropriate Intel System TPS for max supported TDP
 24 Total DIMM slots (12 DIMMs per processor)
6 Memory Channels per processor / 2 DIMMs per Channel
o
 Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)
 Memory Capacity
Up to 1.5TB for Gold and Platinum CPUs; Up to 768GB for Silver and Bronze CPUs
o
 Memory data transfer rates:
Up to 2666 MT/s @ 1 DPC and 2 DPC (Processor SKU Dependent)
o
Channel
 DDR4 standard voltage of 1.2V
Intel® C624 Chipset
No
Yes
Dual Port RJ45 10GbE
 iPC 557T2OCPG1P5 –
Dual Port 10Gb RJ45

iPC
527DA2OCPG1P5–
Dual Port SFP+
Yes
4 – PCIe OCuLink
Connectors
Intel® VMD Support
Intel® RSTe VROC
Support – Acc. Option
S2600WF0
® Xeon ® processor Scalable family (Platinum, Gold, Silver, and Bronze)
® Xeon ® processors are not supported
Intel® C624 Chipset
No
Yes
No

iPC I357T4OCPG1P5 – Quad Port
1Gb RJ45
 iPC X527DA4OCPG1P5
Port SFP+
 iPC X557T2OCPG1P5 – Dual
10Gb RJ45

iPC X527DA2OCPG1P5 – Dual Port
SFP+
Yes
4 – PCIe OCuLink Connectors
Intel® VMD Support
Intel® RSTe VROC Support – Acc.
Option
S2600WFQ
Intel® C628 Chipset
 iPC I357T4OCPG1P5 – Quad Port
1Gb RJ45
– Quad 
iPC X527DA4OCPG1P5
Port SFP+
Port
 iPC X557T2OCPG1P5 – Dual
10Gb RJ45
 iPC X527DA2OCPG1P5 – Dual Port
SFP+
2 – OCuLink Connectors
Intel® VMD Support
Intel® RSTe VROC Support – Acc.
Option
DPC = DIMMs Per
Yes
Yes
No
– Quad
Port
Yes
