Input Presets

l
The panel allows the user to create, name, and save user input presets, as
Input Presets
well as recall presets that have been saved previously. A preset saves certain parameters
of the current MediaPort video configuration. A saved preset can be recalled and applied to
the MediaPort. Presets save and recall the following parameters:
• Image Size
• Image Position

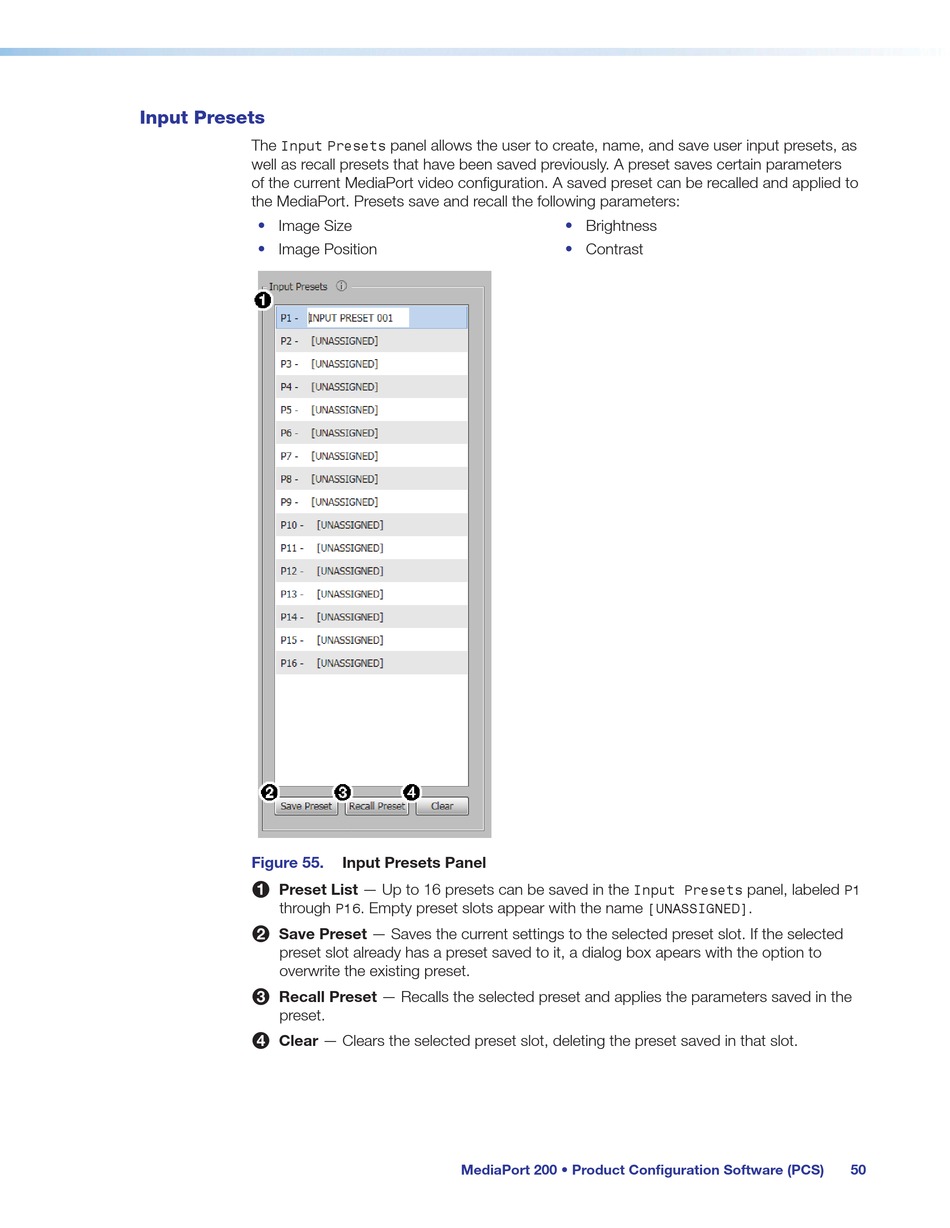

Figure 55. Input Presets Panel
Preset List — Up to 16 presets can be saved in the
1
through . Empty preset slots appear with the name
P16
Save Preset — Saves the current settings to the selected preset slot. If the selected
2
preset slot already has a preset saved to it, a dialog box apears with the option to
overwrite the existing preset.
Recall Preset — Recalls the selected preset and applies the parameters saved in the
3
preset.
Clear — Clears the selected preset slot, deleting the preset saved in that slot.
4
• Brightness
• Contrast
Input Presets
MediaPort 200 • Product Configuration Software (PCS)
panel, labeled
.
[UNASSIGNED]
P1
