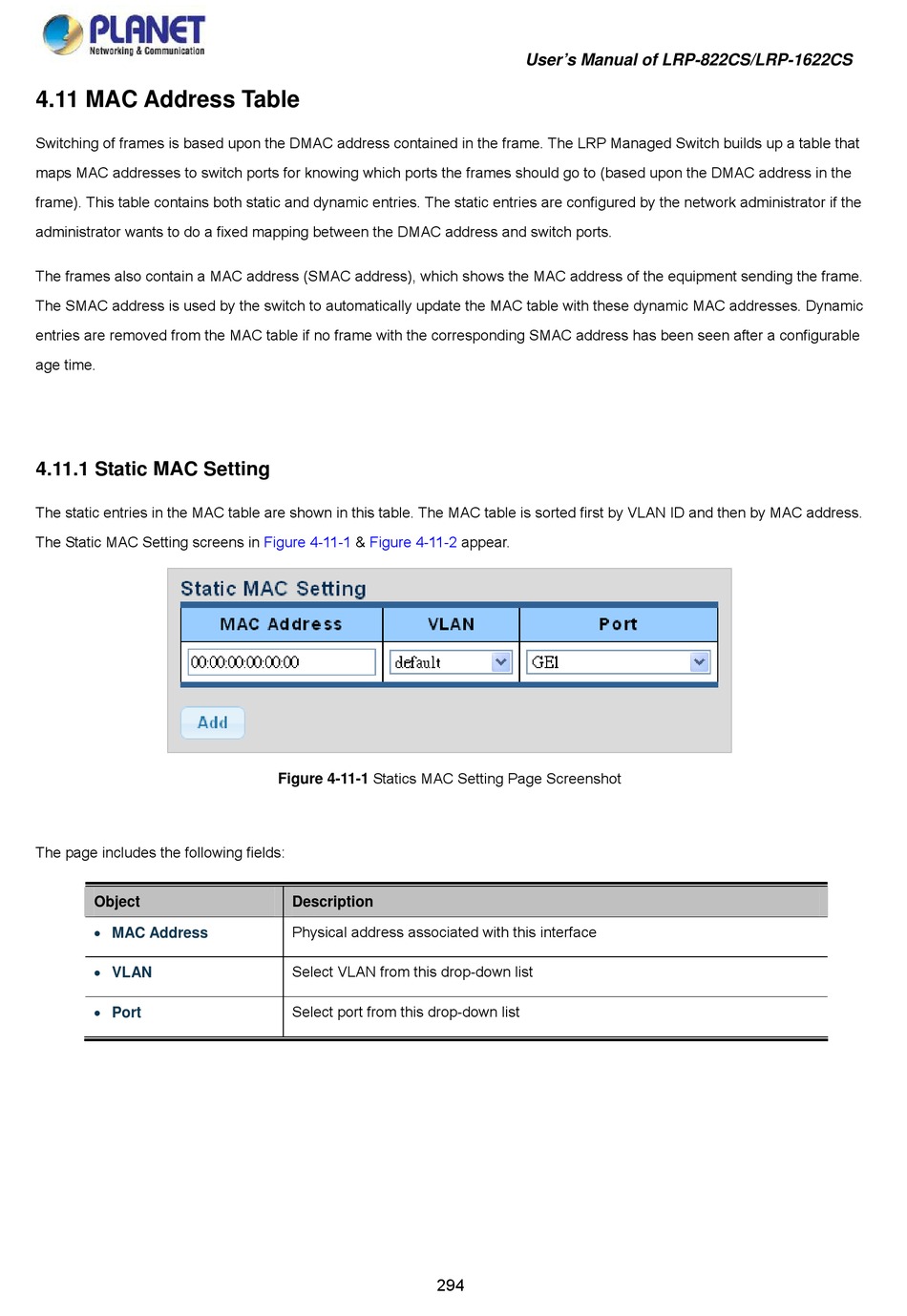

4.11 MAC Addres
Switching of frames is based upon the DMAC address contained in the frame. The LRP Managed Switch builds up a table tha
maps MAC addre
sses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the
frame). This table contains both static and dynamic entries. The static entries are configured by the network administrator if the
administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame.
The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic
entries are removed from the MAC table if no frame with the corresponding SMAC address has been seen after a configurable
age time.
4
.11.1 Static MAC Setting
The static entries in the MAC table are sho
The Static MAC Setting screens in
The page includes the following fields:
Object
MAC Address
VLAN
Port
s Table
wn in this table. The MAC table is sorted first by VLAN ID and then by MAC address.
Figu
re 4-11-1
&
Fi
gure 4-11-2
Figure 4-11-1 Statics MAC Setting Page Screenshot
Description
Physical address associated with this interface
Select VLAN from this drop-down list
Select port from this drop-down list
User's Manual of LRP-822CS/LRP-1622CS
appear.
294
