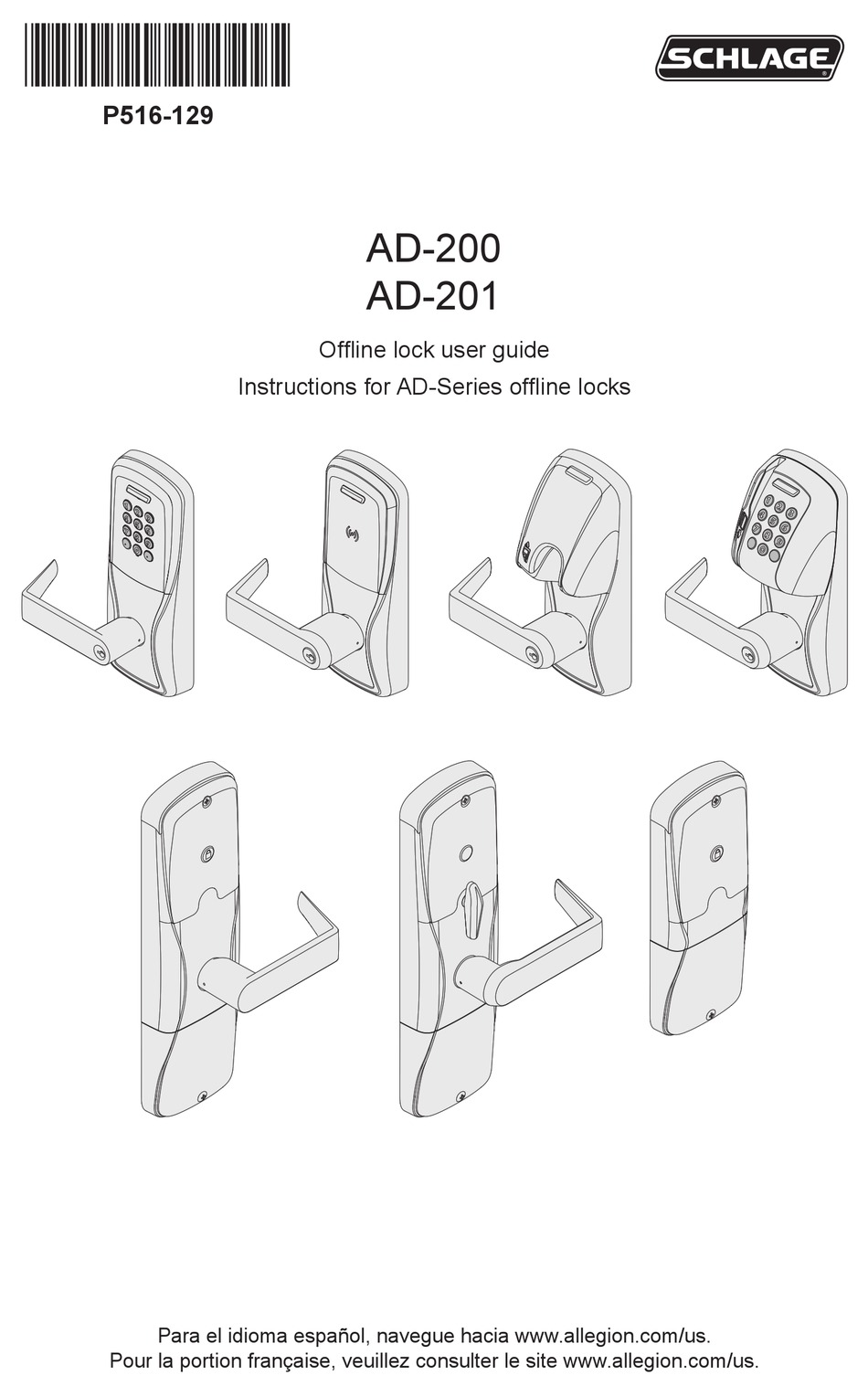

- Page 1 *P516-129* P516-129 AD-200 AD-201 Offline lock user guide Instructions for AD-Series offline locks Para el idioma español, navegue hacia www.allegion.com/us. Pour la portion française, veuillez consulter le site www.allegion.com/us.
-
Page 2: Table Of Contents
UL Listed product, in accordance with the requirements of the Standards UL 294 and ULC S319. This product has been evaluated for CAN/ULC-S319 Class 1. 2 • Schlage • AD-200 user guide... -
Page 3: Overview

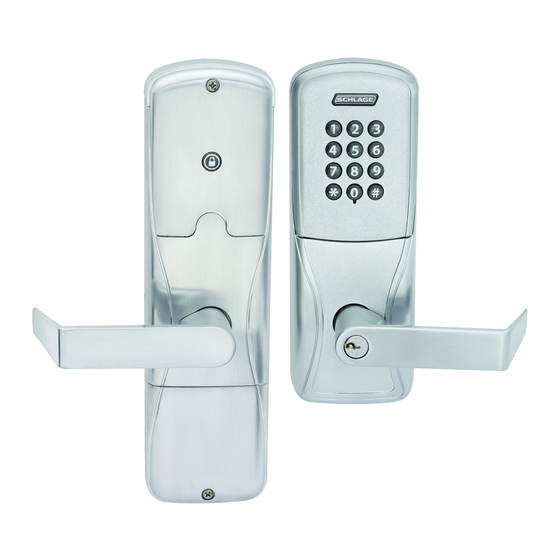

Overview The Schlage AD-200/AD-201 is an off-line electronic lock in the AD-Series product line. The Schlage AD-201 is a FIPS-201-1 certified off-line electronic lock. • May be powered by batteries or connected to external power using a UL294 or ULCS318/ULCS319 listed power supply capable of sourcing at least 250 mA @ 12 or 24 VDC. -
Page 4: Lock Functions
Save this user guide for future reference. Schlage Utility Software (SUS) The Schlage Utility Software is used for programming and setup only. The SUS is used to configure locks. This includes transferring data files between the access control software and locks. For information about the SUS, refer to the SUS user guide. -
Page 5: Construction Access Mode
In the factory default state, locks with keypads have a default PIN of 13579 and “#”, which can be used for installation, testing and construction access. To test, enter default PIN. The Schlage button will blink and the lock will unlock. -
Page 6: Cancel Construction Access Mode
CARD + Card ID Number credential – a card (with a unique Card ID number) presented to the lock. (See a description of Card ID number above for more information.) Steps for designating each form are in the Manual programming instructions on the following pages. 6 • Schlage • AD-200 user guide... -
Page 7: Manual Programming Instructions
Manual programming instructions Important notes: Wait for the Schlage button LEDs to stop flashing before continuing to the next step. Programming mode will time out if no entry is made in 20-25 seconds. Time out is indicated by three left and nine right red blinks of the Schlage button. -
Page 8: Normal Use Credentials
CARD + Number lock. back to step 4 Card ID Number OR press Present Wait for again to finish Programming right green Wait for card light. confirmation: 2 right green blinks. 8 • Schlage • AD-200 user guide... -
Page 9: Toggle Credentials
CARD + Number lock. back to step 4 Card ID Number OR press Present again to finish Wait for Programming Wait for right green card confirmation: light. 2 right green blinks. 9 • Schlage • AD-200 user guide... -
Page 10: Freeze Credentials
CARD + Number lock. back to step 4 Card ID Number OR press Present again to finish Wait for Programming Wait for right green card confirmation: light. 2 right green blinks. 10 • Schlage • AD-200 user guide... -
Page 11: Pass Through Credentials
Through Number lock. back to step 4 CARD + Card ID OR press Present Number again to finish Wait for Programming Wait for right green card confirmation: light. 2 right green blinks. 11 • Schlage • AD-200 user guide... -
Page 12: Other Programming
10 second delay blinks. card Error codes All error codes are indicated on the Schlage button by a solid red left LED, and a blinking green right LED. The number of green blinks indicates the error code. Number of Error code description... -
Page 13: Test Lock Operation
3. For locks with a card reader, present a credential to the reader. The lock will beep and the left side of the Schlage button will blink red one time. When the lock is in factory default mode, no credentials are accepted. -
Page 14: Wired Remote Release Feature
RESET RESET RESET RESET Wired remote release operation IMPORTANT! The remote release feature will function only when the AD-200 inside cover is completely and properly installed. AUX POWER Operation with firmware version 2.45.1 • When the remote release button is pressed the lock will unlock for the programmed relock delay period. -
Page 15: Reset To Factory Defaults
5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset. -
Page 16: Batteries
For installations requiring ULC-S319, these battery models should be used. AA batteries: Duracell PC1500, MN1500; Energizer E91, EN91, AX91, XR91; RayoVac 815, 815-HE Coin cell batteries: Energizer CR2025, CR2032; Maxell CR2025, CR2032, Panasonic CR2025, CR2032; RayoVac KECR2025, KECR2032. 16 • Schlage • AD-200 user guide... -
Page 17: Low Battery Indications
CAN/UL-S318 or CAN/ULC-S319 for cUL installations. The power supply must be capable of sourcing at least 250 mA @ 12 or 24 VDC (Schlage PS902, PS904, PS906). When powered with external power supply, the lock will always fail Polarity Required “As-Is”... -
Page 18: Led Reference
With door closed, press IPB to release 4 red blinks privacy 1 If DPS is used, then opening the door will also release privacy. If mortise deadbolt is used, then retracting the deadbolt will also release privacy. 18 • Schlage • AD-200 user guide... -
Page 19: Troubleshooting
Check that the switch closes and completely installed. delivers less than 5 ohms resistance The remote release switch when activated. may not be functioning correctly. 19 • Schlage • AD-200 user guide... -
Page 20: Fcc/Ic Statements
FCC/IC Statements Allegion Agency statements Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
