Summary of Contents for Schlage AD Series

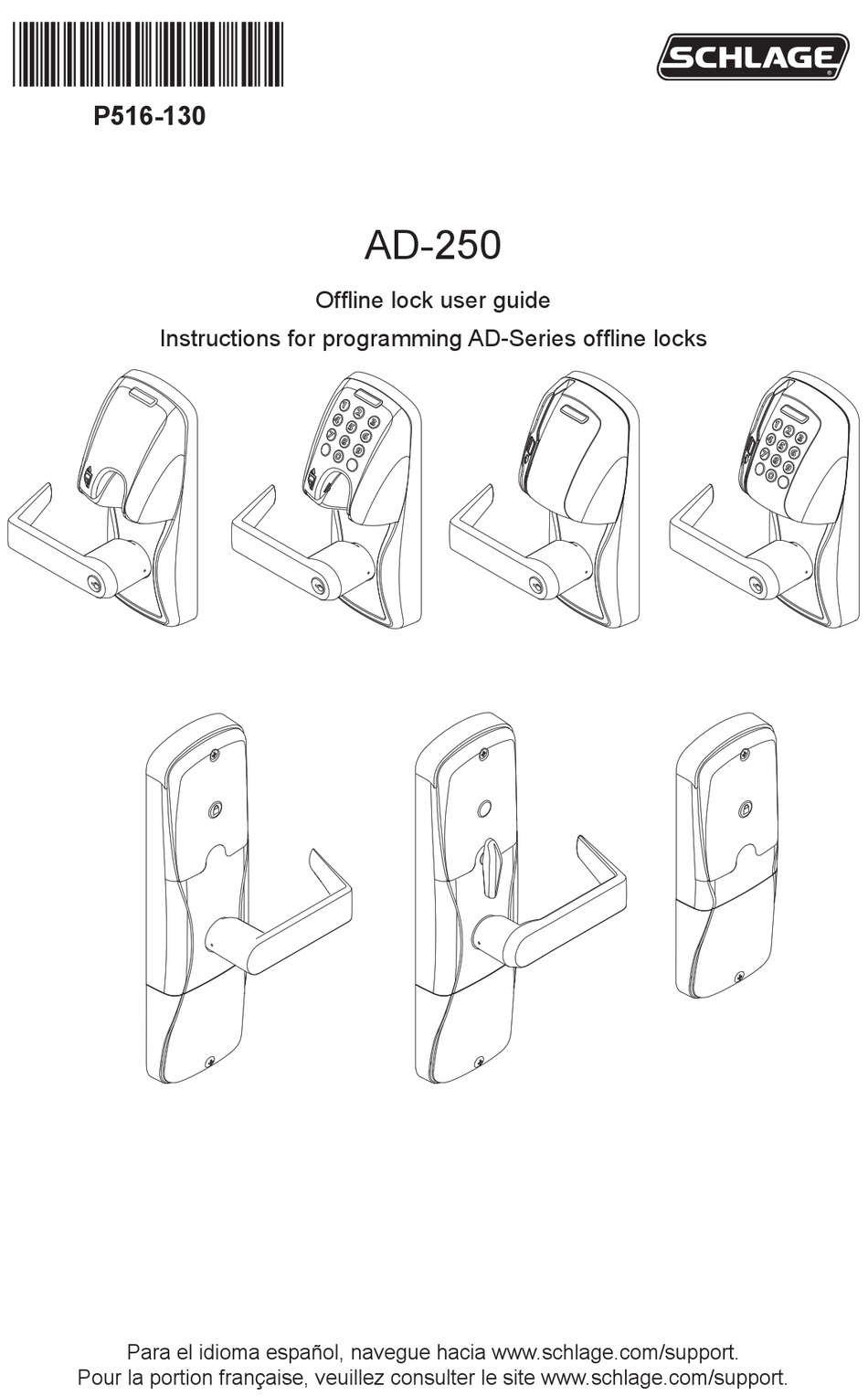

- Page 1 *P516-130* P516-130 AD-250 Offline lock user guide Instructions for programming AD-Series offline locks Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.
-
Page 2: Table Of Contents
UL Listed product, in accordance with the requirements of the Standards UL 294 and ULC S319. This product has been evaluated for CAN/ULC-S319 Class 1. 2 • Schlage • AD-250 user guide... -
Page 3: Overview
Overview The Schlage AD-250 is a standalone electronic lock in the AD-Series product line. • May be powered by batteries or connected to external power using a UL 294 or ULC S318/ULC S319 listed power supply capable of sourcing at least 250 mA @ 12 or 24 VDC. -
Page 4: Getting Started
4. Test the lock for proper mechanical and electronic operation. See Test lock operation on page 6 for more information. 5. Consult the Schlage Utility Software (SUS) user guide for information about configuring the lock. 6. Familiarize yourself with the information contained in this user guide. -
Page 5: Construction Access Mode
In the factory default reset state, standalone locks with keypads, with or without additional credentials, have a default PIN of 13579 and “#”, which can be used for installation, testing and construction access. To test, enter default PIN. The Schlage button will blink and the lock will unlock. -
Page 6: Test Lock Operation
2. Press the Schlage button. The keypad should light blue for a few seconds. 3. Present a credential to the reader. The lock will beep and the Schlage button will blink red one time. When the lock is in factory default mode, no credentials are accepted. -
Page 7: Reset To Factory Defaults
5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset. -
Page 8: Batteries
Battery failure No LED or beeps Replace batteries immediately. (configured by Mechanical override key must Valid credentials do not grant access SUS) be used to unlock the lock. 8 • Schlage • AD-250 user guide... -
Page 9: Battery Failure Modes
CAN/UL-S318 or CAN/ULC-S319 for cUL installations. The power supply must be capable of sourcing at least 250 mA @ 12 or 24 VDC (Schlage PS902, PS904, PS906). When powered with external power supply, the lock will always fail “As-Is” if power is lost. -
Page 10: Led Reference
One red blink every 15 seconds for first disabled) 10 minutes, then one red blink every 30 seconds for the next 50 minutes, then one red blink every 60 seconds after one hour. 10 • Schlage • AD-250 user guide... -
Page 11: Troubleshooting
Check that there are no bent pins in when the Schlage The reader connector may the reader connector. button is pressed. have bent pins. Check that the through door ribbon The through door ribbon cable is plugged in correctly. -
Page 12: Fcc Statements
FCC Statements Allegion Agency Statements Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Customer Service ©... - Page 13 11.000” 5.500” FRONT FRONT 8.500” 8.500” BEGINNING SHEET FOLDED SHEET Additional Notes: Revision History Revision Description: H > SH2 artwork revision 1. Booklet Format, Center Stitched 18016 19890 24547 28472 33937 48533 Material Edited By Approved By EC Number Release Date White Paper P.
