Quarter-Turn Rotary Actuators

Integral Mounted Fisher Actuators

1. Isolate the control valve from the process line pressure and release pressure from both sides of the valve body. Shut
off all pressure lines to the pneumatic actuator, releasing all pressure from the actuator. Use lock‐out procedures to
be sure that the above measures stay in effect while working on the equipment.
2. Verify that the appropriate cam is installed on the actuator as described in the instructions included with the
mounting kit.

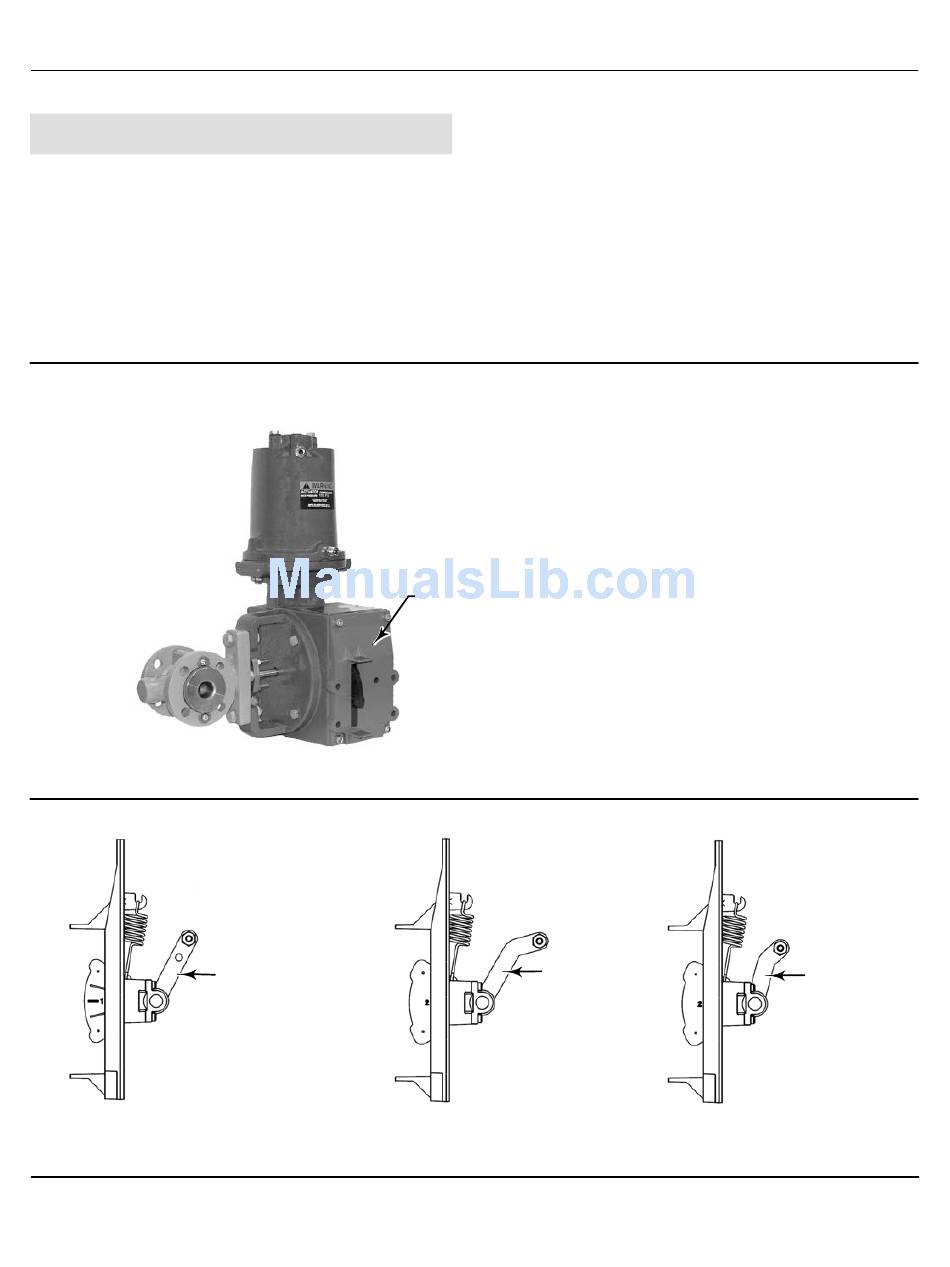

Figure 10. Mounting on Rotary Actuators
W9708
Figure 11. Rotary Actuator Mounting Variations
2052 SIZE 2 AND 3
1051/1052 SIZE 40-70
SIZE 1061 SIZE 30-100
NOTE THE DIFFERENCE IN THE SHAPE AND LENGTH OF THE ROLLER ARM
E1229
14
ROLLER ARM
ROTARY MOUNTING KIT
(DVC6200 NOT SHOWN)
ROLLER ARM
2052 SIZE 1
Quick Start Guide
D103556X012
ROLLER ARM
1051 SIZE 33
1052 SIZE 20-33
