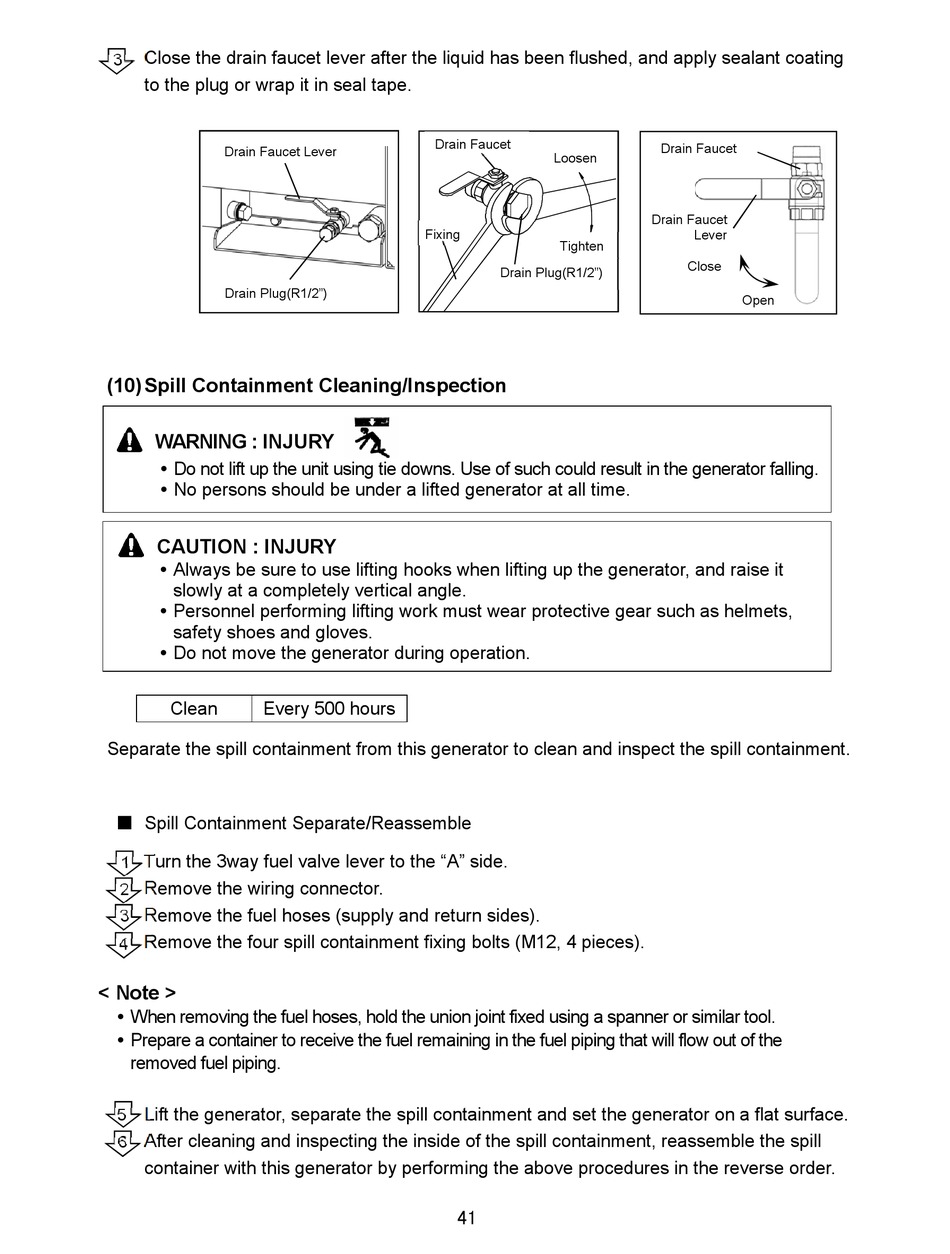

Close the drain faucet lever after the liquid has been flushed, and apply sealant coating
3
to the plug or wrap it in seal tape.
Drain Faucet Lever
Drain Plug(R1/2")
(10) Spill Containment Cleaning/Inspection
WARNING : INJURY
 Do not lift up the unit using tie downs. Use of such could result in the generator falling.
 No persons should be under a lifted generator at all time.
CAUTION : INJURY
 Always be sure to use lifting hooks when lifting up the generator, and raise it
slowly at a completely vertical angle.
 Personnel performing lifting work must wear protective gear such as helmets,
safety shoes and gloves.
 Do not move the generator during operation.
Clean Every 500 hours
Separate the spill containment from this generator to clean and inspect the spill containment.
 Spill Containment Separate/Reassemble
Turn the 3way fuel valve lever to the "A" side.
1
Remove the wiring connector.
2
Remove the fuel hoses (supply and return sides).
3
Remove the four spill containment fixing bolts (M12, 4 pieces).
4
< Note >
 When removing the fuel hoses, hold the union joint fixed using a spanner or similar tool.
 Prepare a container to receive the fuel remaining in the fuel piping that will flow out of the
removed fuel piping.
Lift the generator, separate the spill containment and set the generator on a flat surface.
5
After cleaning and inspecting the inside of the spill containment, reassemble the spill
6
container with this generator by performing the above procedures in the reverse order.
Drain Faucet
Loosen
Fixing
Tighten
Drain Plug(R1/2")
41
Drain Faucet
Drain Faucet
Lever
Close
Open
