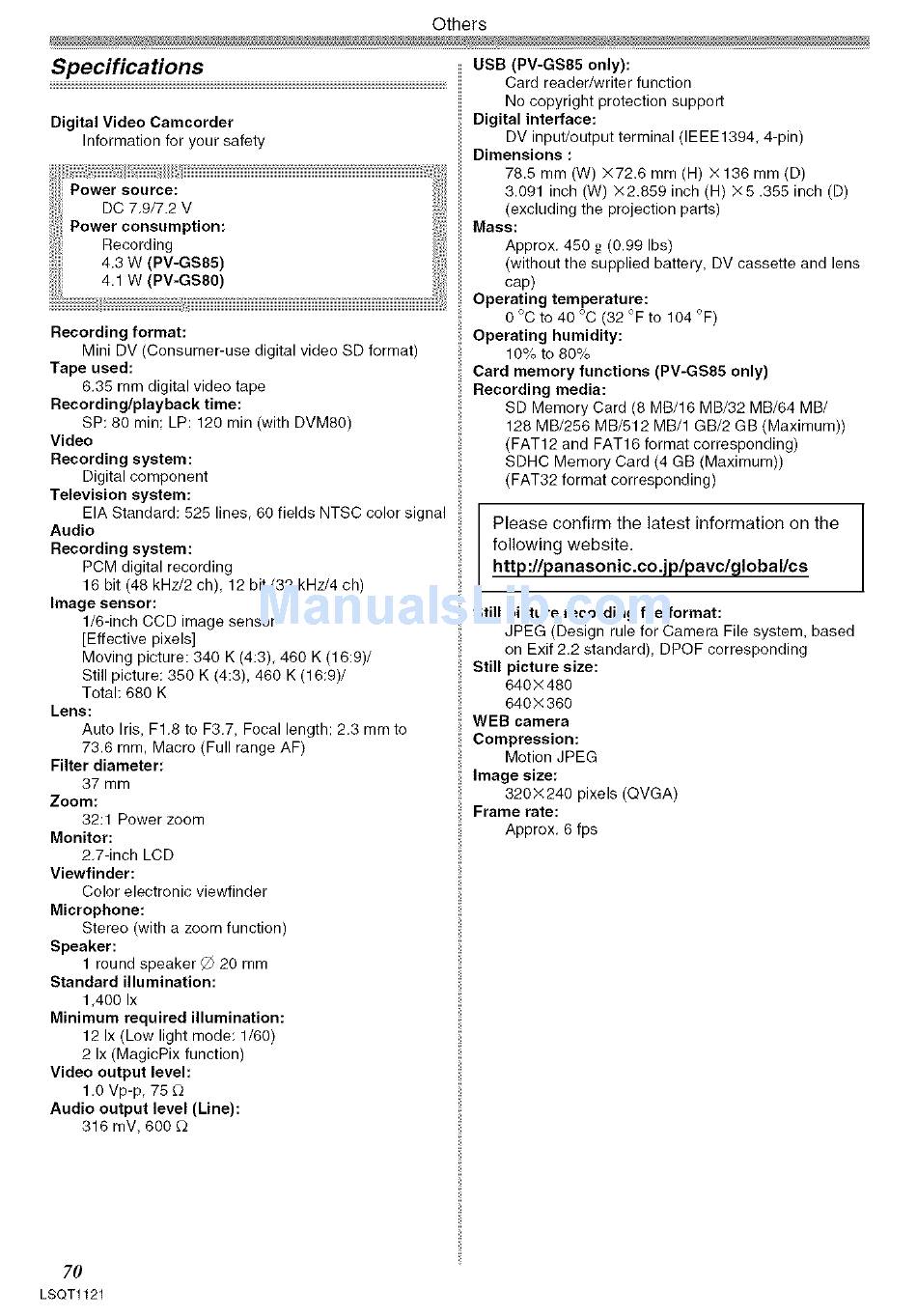

Specifications
Digital Video Camcorder
Information for your safety
Recording format:
Mini DV (Consumer-use digital video SD format)
Tape used:
6.35 mm digital video tape
Recording/playback time:
SP: 80 min; LP: 120 min (with DVM80)
Video
Recording system:
Digital component
Television system:
EIA Standard: 525 lines, 60 fields NTSC color signal
Audio
Recording system:
PCM digital recording
16 bit (48 kHz/2 ch), 12 bit (32 kHz/4 ch)
Image sensor:
1/6-inch CCD image sensor
[Effective pixels]
Moving picture: 340 K (4:3), 460 K (16:9)/
Still picture: 350 K (4:3), 460 K (16:9)/
Total: 680 K
Lens:
Auto Iris, F1.8 to F3.7, Focal length; 2.3 mm to
73.6 ram, Macro (Full range AF)
Filter diameter:
37 mm
Zoom:
32:1 Power zoom
Monitor:
2.7-inch LCD
Viewfinder:
Color electronic viewfinder
Microphone:
Stereo (with a zoom function)
Speaker:
1 round speaker _ 20 mm
Standard illumination:
1,400 Ix
Minimum required illumination:
12 Ix (Low light mode: 1/60)
2 Ix (MagicPix function)
Video output level:
1.0 Vp-p, 75 fl
Audio output level (Line):
316 mY, 600 _2
USB (PV-GS85 only):
Card reader/writer function
No copyright protection support
Digital interface:
DV input/output terminal (IEEE1394, 4-pin)
Dimensions :
78.5 mm (W) X72.6 mm (H) X 136 mm (D)
3.091 inch (W) X2.859 inch (H) X5.355 inch (D)
(excluding the projection parts)
Mass:
Approx. 450 g (0.99 Ibs)
(without the supplied battery, DV cassette and lens
cap)
Operating temperature:
0 °C to 40 °C (32 °F to 104 °F)
Operating humidify:
10% to 80%
Card memory functions (PV-GS85 only)
70
LSQT1121
Recording media:
SD Memory Card (8 MB/16 MB/32 MB/64 MB/
128 MB/256 MB/512 MB/1 GB/2 GB (Maximum))
(FAT12 and FAT16 format corresponding)
SDHC Memory Card (4 GB (Maximum))
(FAT32 format corresponding)
Please confirm the latest information on the
following website.
http:llpanasonic.co.jplpavclgloballcs
Still picture recording file format:
JPEG (Design rule for Camera File system, based
on Exif 2.2 standard), DPOF corresponding
Still picture size:
640X480
640×360
WEB camera
Compression:
Motion JPEG
Image size:
320X240 pixels (QVGA)
Frame rate:
Approx. 6 fps
