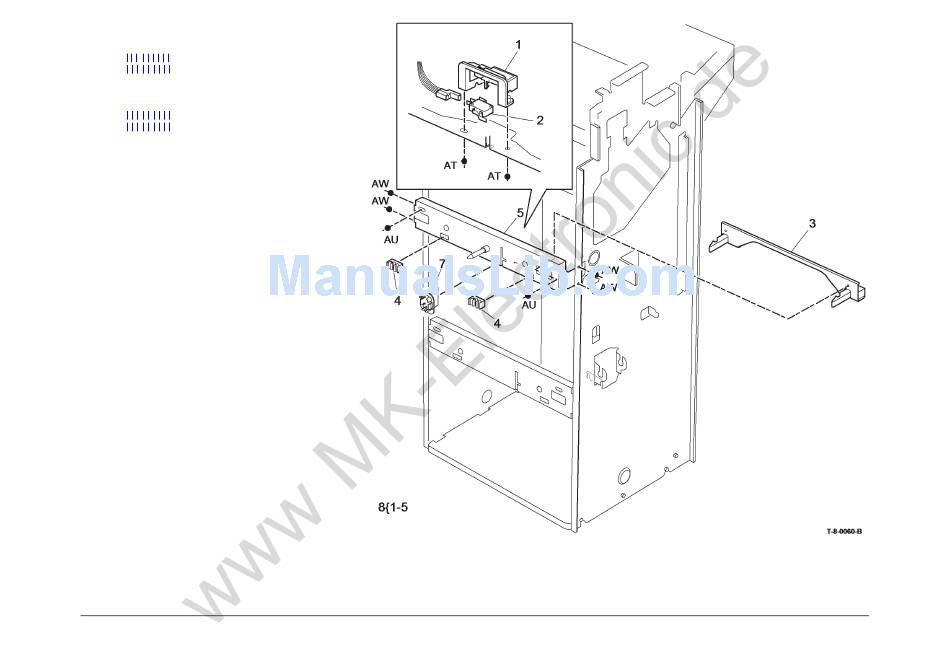

PL 11.4 2K LCSS Docking Latch

Item Part Description
1 – Sensor cover (Not Spared)
2 110K13980 Docking interlock switch (S11-300)
3 003K20401 Link bracket assembly
4 – Stopper (Not Spared)
5 – Docking latch (P/O PL 11.4 Item 8)
6 – Not used
7 120K02590 Docking actuator
8 003K20410 Docking latch assembly (REP
11.16-110)
